WISKA 50108801
Image is for illustrative purposes only
WISKA 50108801
WISKA 50108801

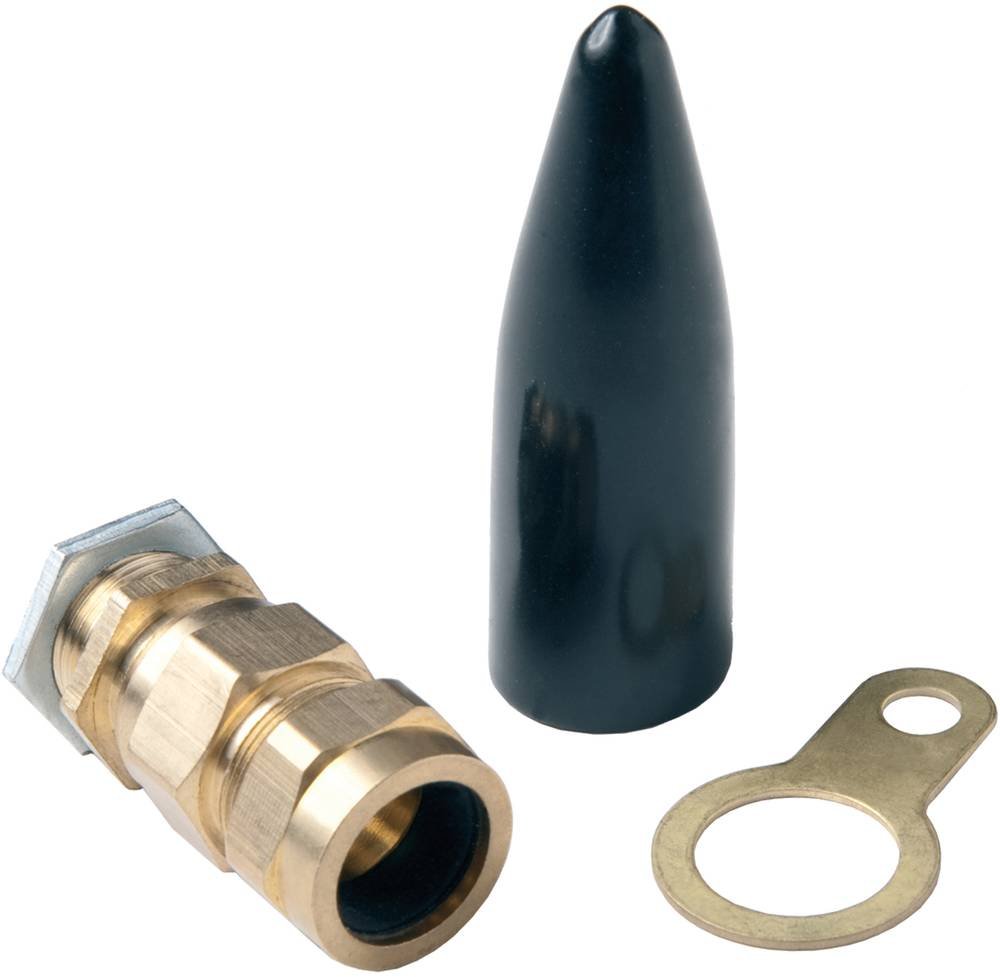

WISKA 50108801 (CW 25S) M25x1,5 CW Pack Economy, brass gland & locknut, shroud

Part: 50108801
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Material :Brass
Material shrouds :PVC
Packing unit :2
Temp. range min :-20 °C
Temp. range max :80 °C
Protection class :IP66
Thread type :M

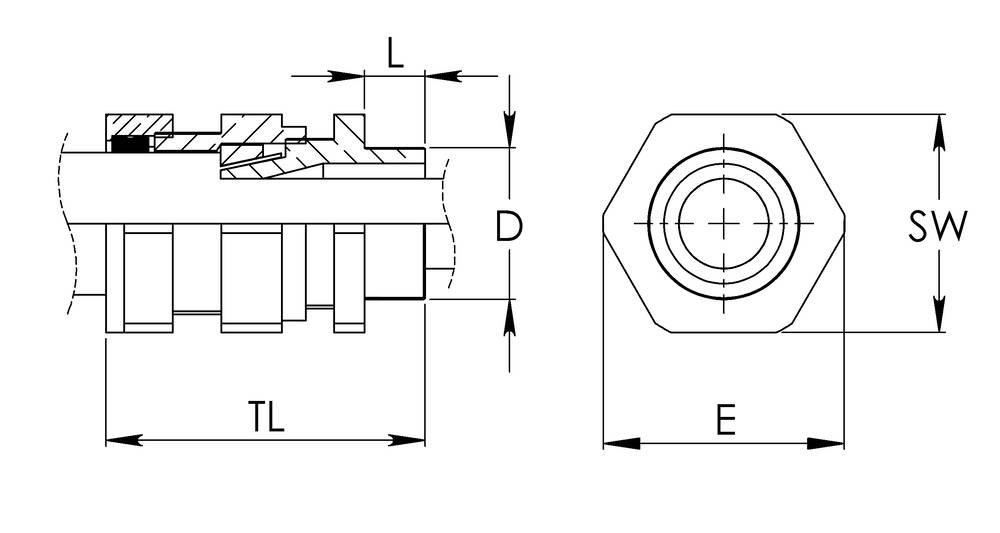

Ø Connection thread D :25
Lead :1,5
Length screw-in thread L :10mm
Ø cable diameter min :18mm
Ø cable diameter max :22,5mm
Ø cable below cable shield max :-20mm
Key width SW :35mm
Collar diameter (E) :39mm
Total length TL :54mm
