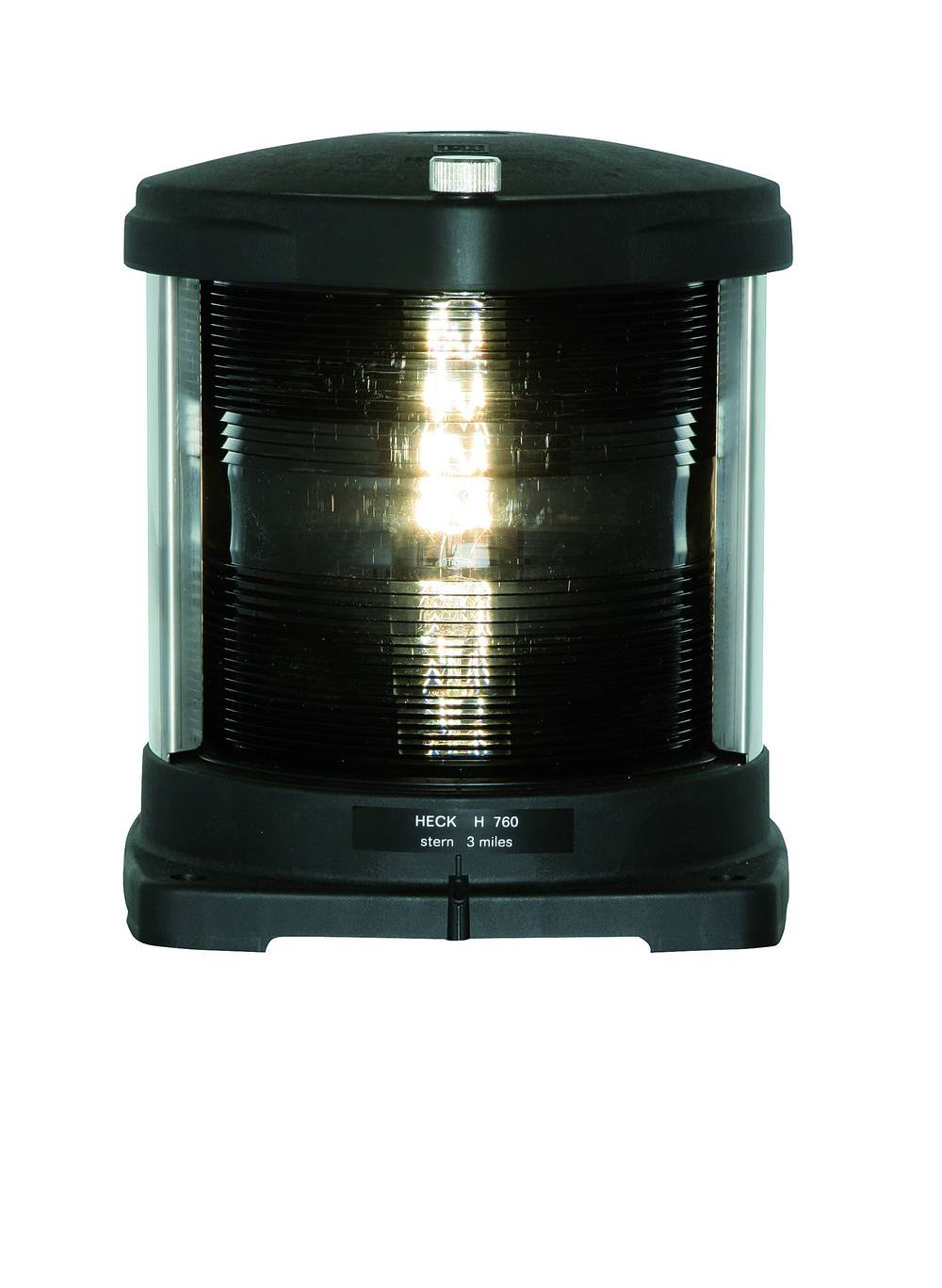

WISKA 50103086 (H-760-WH-230-PB) Navigation lantern, 1 x 65W 230V, stern light white reduced, P28s, 3nm, 135°

Part: 50103086
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Cable connection via cable connection box
  • Equipped with 4 rubber pads

Material :Polyamide, fibre reinforced
Material globe/diffuser :PMMA
Globe colour :white reduced
Power^ :1 x 65 W
Voltage :230 V
Type of Voltage :AC
Protection class :IP56
Operational areas :Outdoor
Temp. range min :-30 °C
Temp. range max :55 °C
Lampholder :P28s
Number of lampholder :1 items
Lightsource :Incandescent lamp
Lightsource incl. :Yes
Signal range :3nm
Model :Stern light
Sector :135°
Using for cable gland :Using for cable gland
Material cable gland :Polyamide
Ø cable diameter min :6 mm
Ø cable diameter max :13 mm
Mounting :Upside
Colour :Black
External dimensions LxWxH :200x250x227mm
Weight :2 kg
Approval :MED, UL, BSH, DNV-GL
