WISKA 50101035
Image is for illustrative purposes only
WISKA 50101035
WISKA 50101035
WISKA 50101035

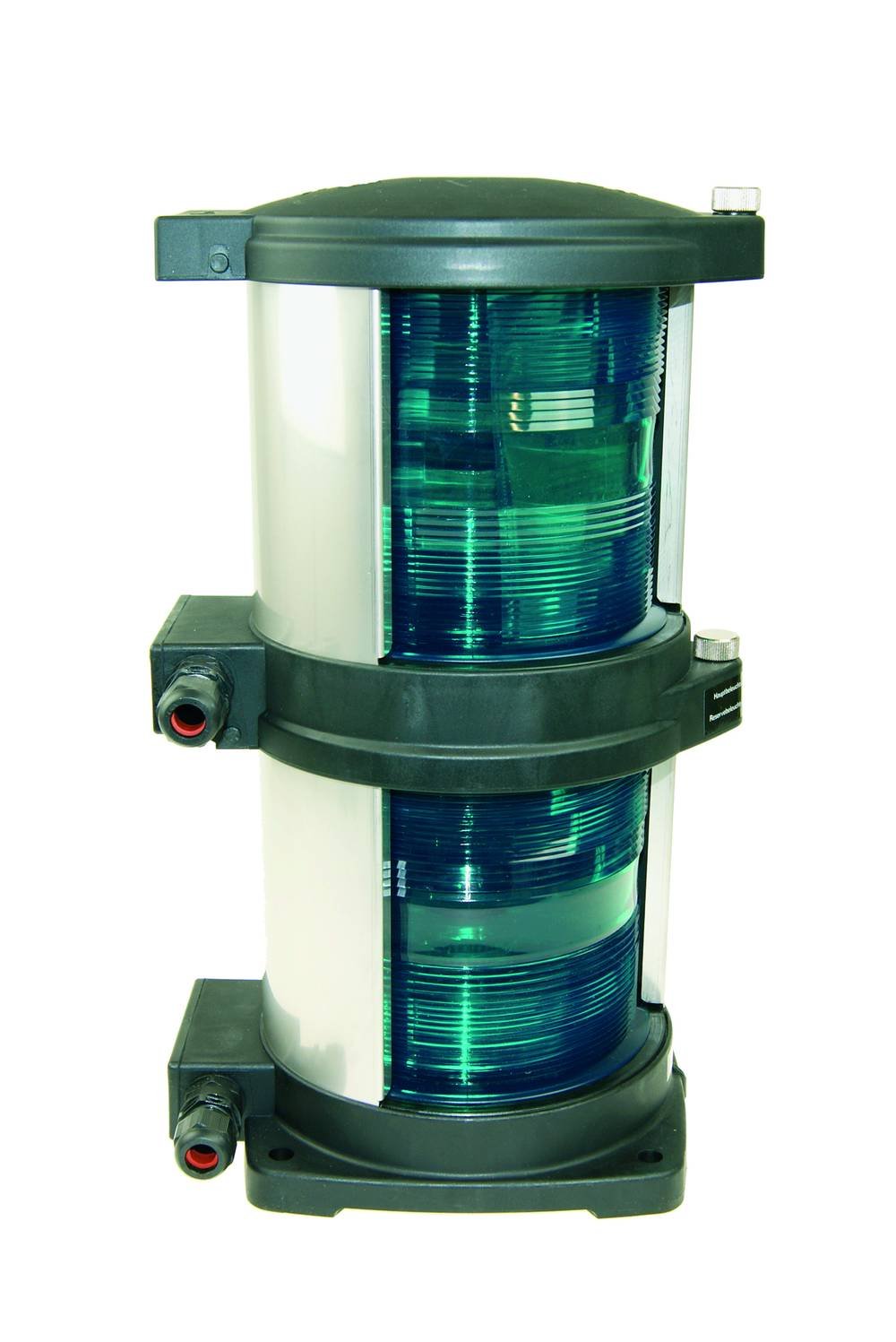

WISKA 50101035 (DSSb-760-GN-24/230-PB) Double lantern, 1 x 40W, 1 x 65W, double side light green, P28s, 3nm, 112.5°

Part: 50101035
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Including one bulb 40W and one bulb 65W
  • Voltage: 24V DC top light, 230V AC lower light
  • Cable connection via cable connection box
  • Equipped with 4 rubber pads

Material :Polyamide, fibre reinforced
Material globe/diffuser :PMMA
Globe colour :Green
Power^ :1 x 40 W, 1 x 65 W
Voltage min. (V) :24 V
Voltage max. (V) :230 V
Type of Voltage :AC / DC
Protection class :IP56
Operational areas :Outdoor
Temp. range min :-30 °C
Temp. range max :55 °C
Lampholder :P28s
Number of lampholder :2 items
Lightsource :Incandescent lamp
Lightsource incl. :Yes
Signal range :3nm
Model :Double side light
Sector :112,5°
Using for cable gland :Using for cable gland
Ø cable diameter min :6 mm
Ø cable diameter max :13 mm
Mounting :Upside
Colour :Black
External dimensions LxWxH :200x250x417mm
Weight :4,1 kg
Approval :MED, DNV-GL, BSH, UL
