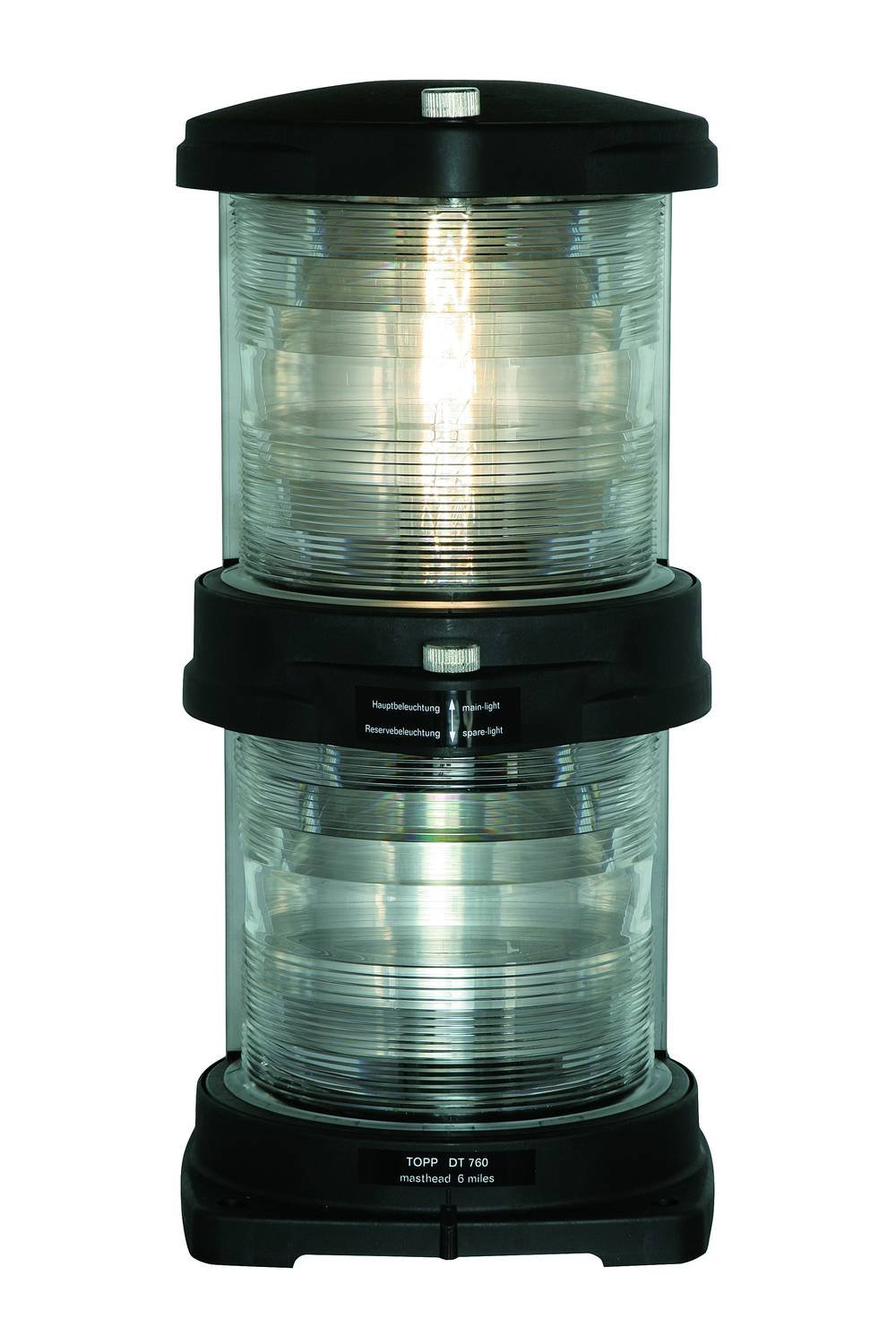

WISKA 50100436 (DT-760-WH-230/230-PB) Double lantern, 2 x 65W 230V, double masthead light white, P28s, 6nm, 225°

Part: 50100436
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Cable connection via cable connection box
  • Equipped with 4 rubber pads

Material :Polyamide, fibre reinforced
Material globe/diffuser :PMMA
Globe colour :white
Power^ :2 x 65 W
Voltage :230 V
Type of Voltage :AC
Frequence :50/60 Hz
Protection class :IP56
Operational areas :Outdoor
Temp. range min :-30 °C
Temp. range max :55 °C
Lampholder :P28s
Number of lampholder :2 items
Lightsource :Incandescent lamp
Lightsource incl. :Yes
Signal range :6nm
Model :Double masthead light
Sector :225°
Using for cable gland :Using for cable gland
Material cable gland :Polyamide
Ø cable diameter min :6 mm
Ø cable diameter max :13 mm
Mounting :Upside
Colour :Black
External dimensions LxWxH :200x250x417mm
Weight :4,1 kg
Approval :DNV-GL, UL, MED, BSH
