WISKA 10112397 ShieldGLAND Pro M25 Brass locknut, E-Spring, earth fly lead

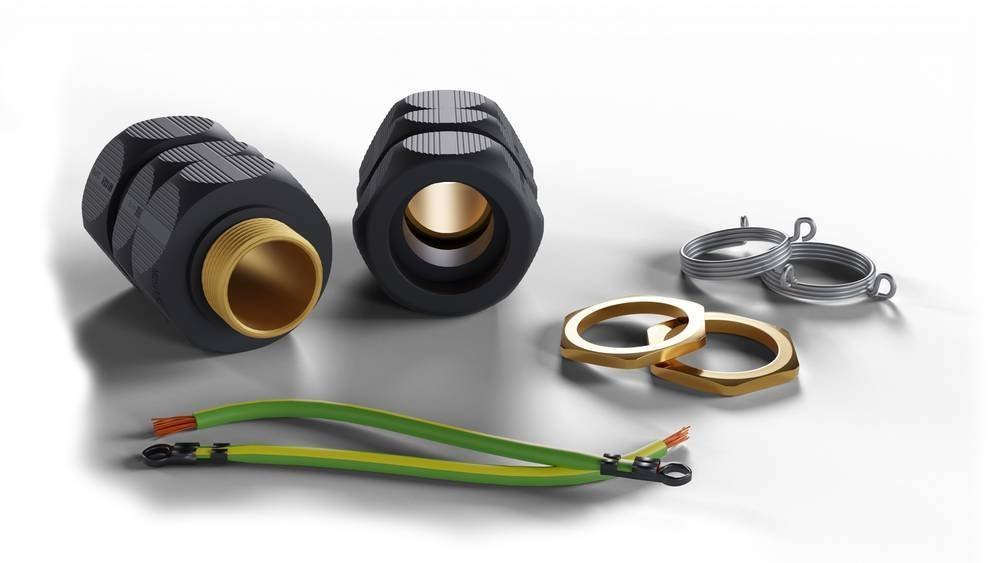

Image is for illustrative purposes only

WISKA 10112397 ShieldGLAND Pro M32 Brass locknut, E-Spring, earth fly lead

Part: 10112397
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Material sealing gasket :TPE
Temp. range min :-40 °C
Temp. range max :120 °C
Protection class :IP68 (5 bar 30 min)
Thread type :M
Ø Connection thread D :32
Lead :1,5
Length screw-in thread L :13 mm
Ø cable diameter min :24 mm
Ø cable diameter max :36 mm
Ø cable below cable shield max :24 mm - 30 mm
Key width SW :50 mm
Collar diameter (E) :56 mm
Total length TL :66 mm - 74 mm
Packing unit :2
