WISKA 10112395 ShieldGLAND Pro M20L Brass locknut, E-Spring, earth fly lead
Image is for illustrative purposes only

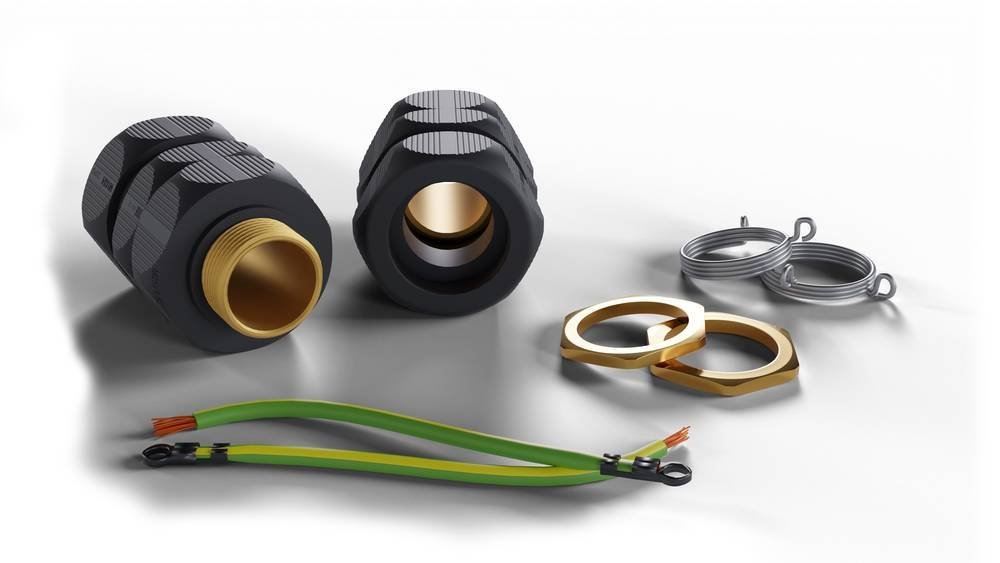

WISKA 10112395 ShieldGLAND Pro M20L Brass locknut, E-Spring, earth fly lead

Part: 10112395
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

Material sealing gasket :TPE
Temp. range min :-40 °C
Temp. range max :120 °C
Protection class :IP68 (5 bar 30 min)
Thread type :M
Ø Connection thread D :20
Lead :1,5
Length screw-in thread L :11 mm
Ø cable diameter min :12 mm
Ø cable diameter max :21 mm
Ø cable below cable shield max :12 mm - 17 mm
Key width SW :32 mm
Collar diameter (E) :36 mm
Total length TL :57 mm - 63 mm
Packing unit :2
