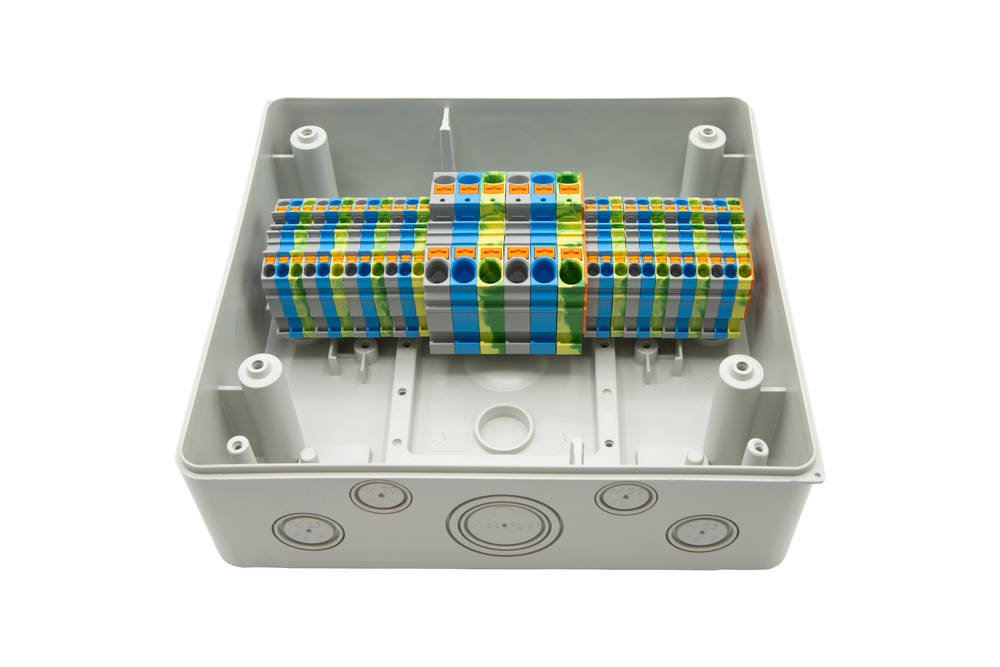

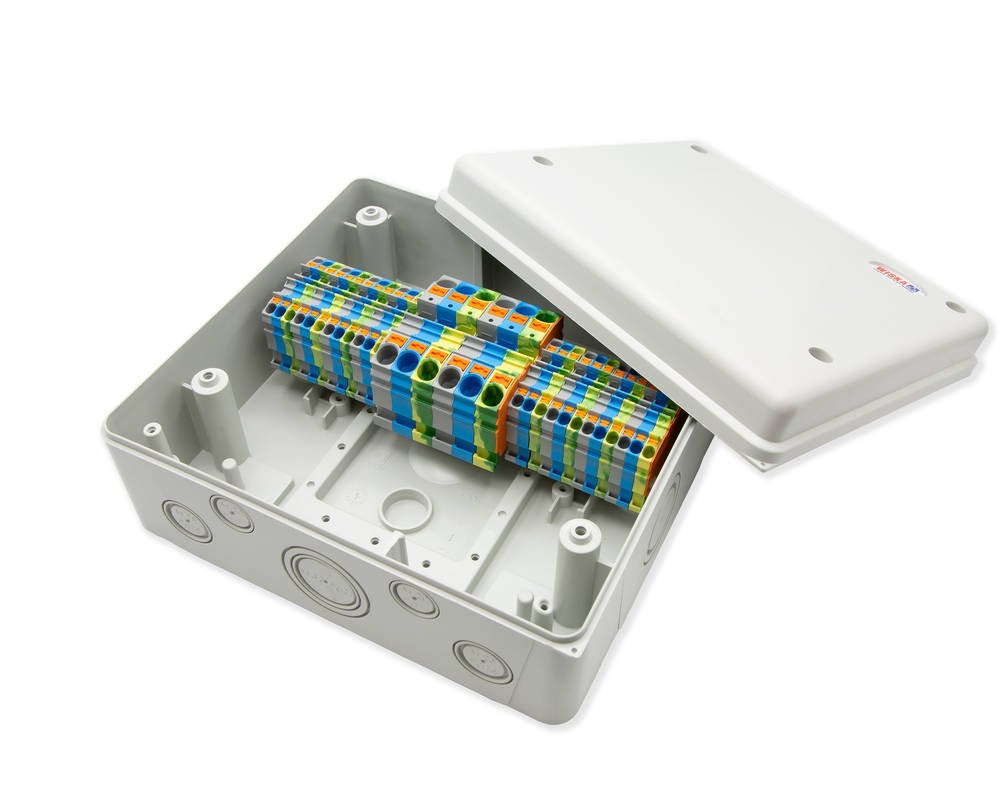

WISKA 10111773 CUR 818 Consumer unit relocation, grey, plastic

• Suitable for relocating up to 10 ways (Each final ring circuit need to be considered as 2 ways)
• Fast self-tapping stainless screws

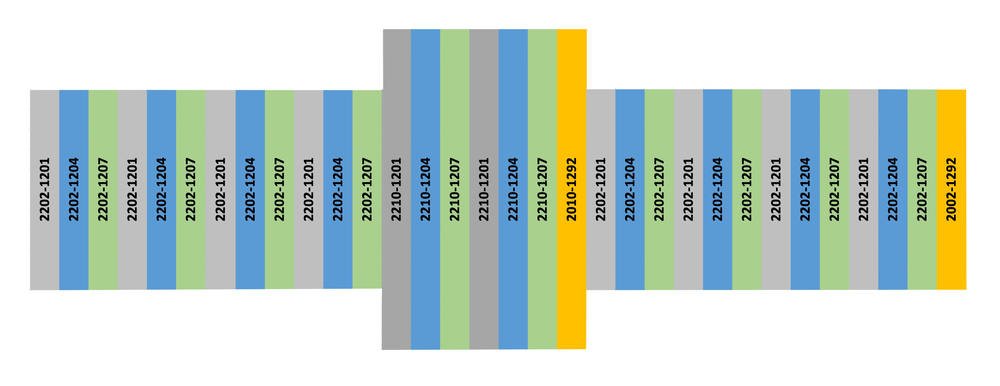

Terminals:

• 2202-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
• 2202-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
• 2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
• 2002-1292 - Orange Endplate for 2202 (x1)
• 2210-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
• 2210-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
• 2210-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
• 2010-1292 - Orange Endplate for 2210 (x1)

Material : Polycarbonate
Protection class : IP65
Temp. range min : -25 °C
Temp. range max : 85 °C
Glow wire test : 650 °C
Impact resistance : IK08
External dimensions LxWxH : 215x200x95mm
Type : CUR 818
Product Color : RAL 7035
WISKA-Order no. : 10111773
