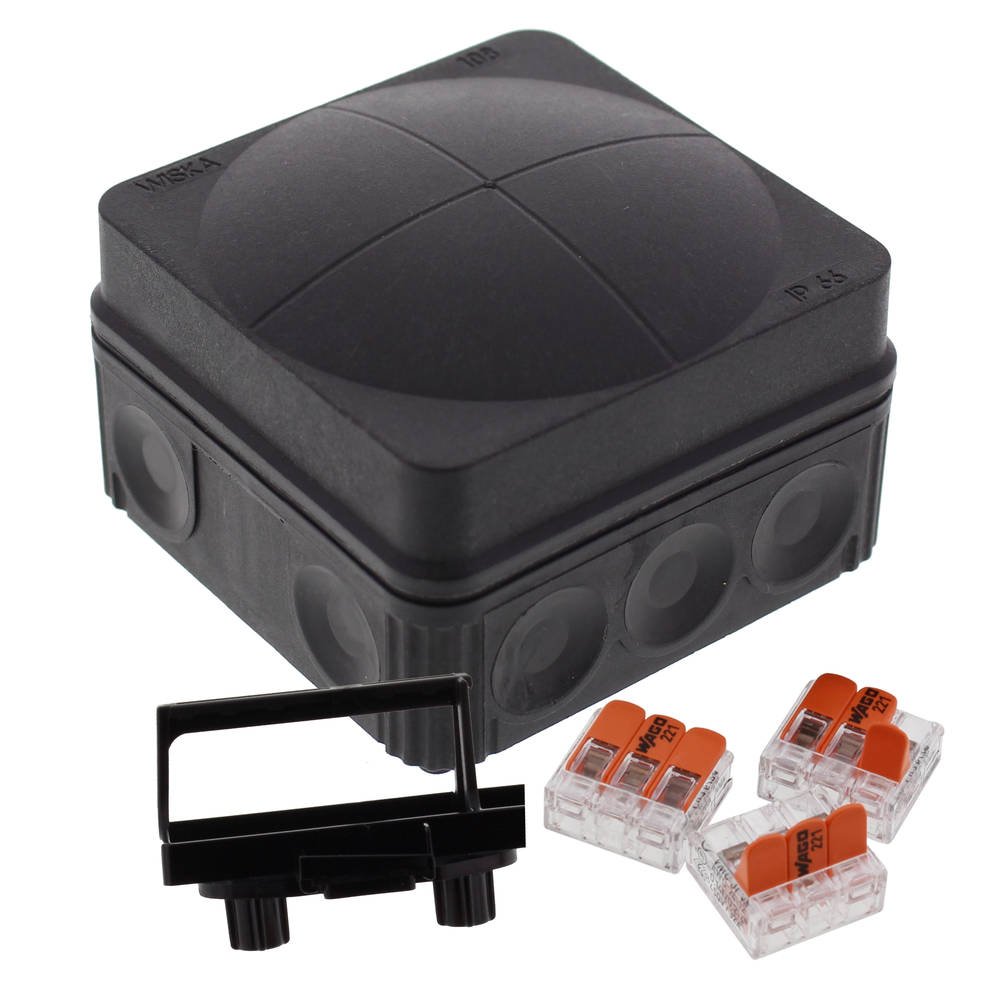

WISKA 10111273 COMBI 108 BK / 3-221-413 junction box, 76 x 76 x 51mm, black, plastic, with Wago terminals
Image is for illustrative purposes only
WISKA 10111273 COMBI 108 BK / 3-221-413 junction box, 76 x 76 x 51mm, black, plastic, with Wago terminals
Dimensions
Dimensions

WISKA 10111273 COMBI 108 BK / 3-221-413 junction box, 76 x 76 x 51mm, black, plastic, with Wago terminals

Part: 10111273
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom
  • Including terminal carrier on quick mounting plate mounted
  • 3x WAGO 221-413 enclosed loose

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66
Glow wire test :750 °C
Voltage :400 V
Rated cross section :2,5 mm²
Fixing :2 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :14 mm
External dimensions LxWxH :76 x 76 x 51mm
Product Color :RAL 9005
WISKA-Order no. :10061999
Type :COMBI 108 BK / 3-221-413
