WISKA 10110949
Image is for illustrative purposes only
Previous
Next
WISKA 10110949
WISKA 10110949
WISKA 10110949
WISKA 10110949
WISKA 10110949

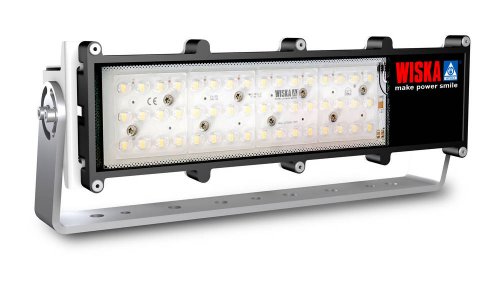

WISKA 10110949 (5000-1x40W-24-MB-FN-1CC) LED Floodlight 5000, 1 x 40W, 18-32VDC, medium beam

Part: 10110949
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • medium beam
  • seawater resistant module housing
  • made of special heat conducting plastic
  • stainless steel frame, back cover and mounting bracket, back cover white powder coated
  • including EMC filter in COMBI 607
  • The electrical connection must be made according to E-Plan

Material :Stainless steel, Plastic
Wattage :40 W
Power^ :1 x 40 W
Voltage :24 V
Voltage min. (V) :18 V
Voltage max. (V) :32 V
Type of Voltage :DC
Protection class :IP66 / IP67
Temp. range min :-30 °C
Temp. range max :55 °C
Operational areas :Indoor / Outdoor
Mounting :Wall, Ceiling, Upside

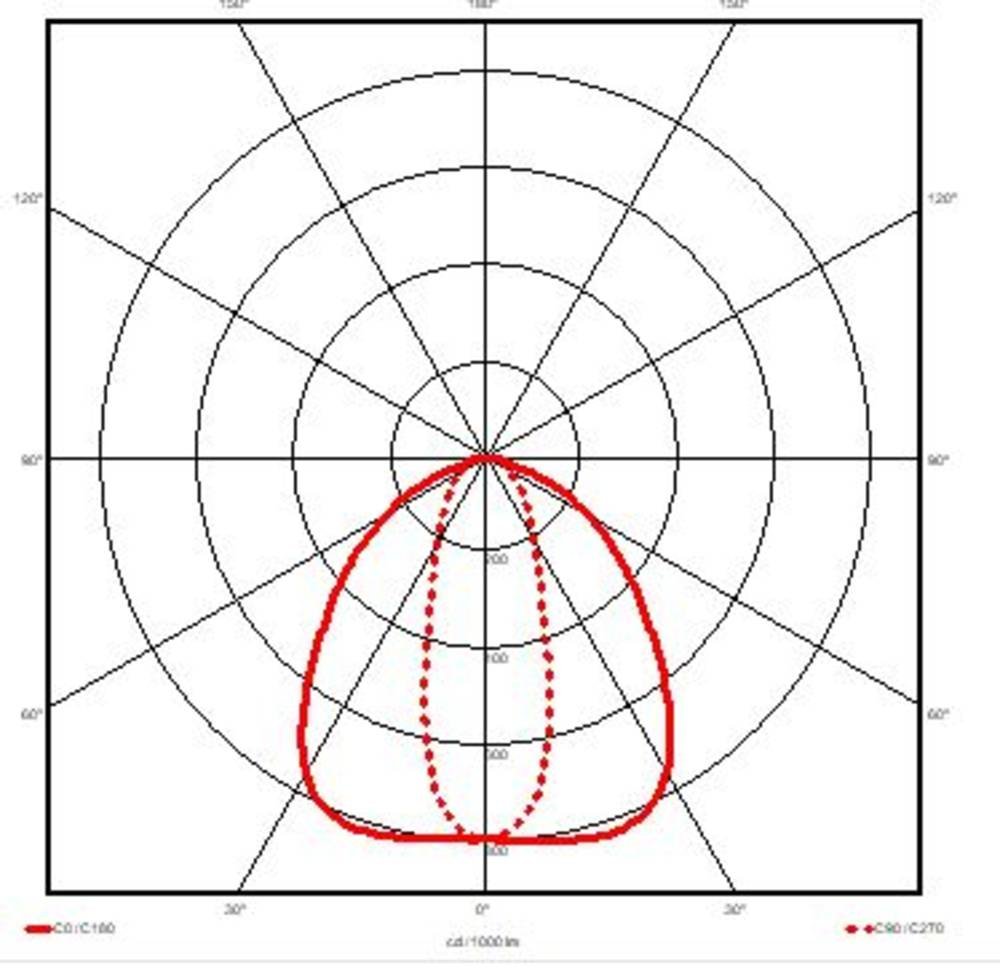

Reflector :Medium beam
Lightsource :LED
Lightsource incl. :Yes
Luminous flux :4000 Im
Colour temperature :5600 K
Colour rendering index :>= 80
Rated Lifetime :L70/B10 @Ta +45 °C
System Lifetime :110000 h
External dimensions LxWxH :408x152x108mm
Weight :4,9 kg

Make an enquiry

...
