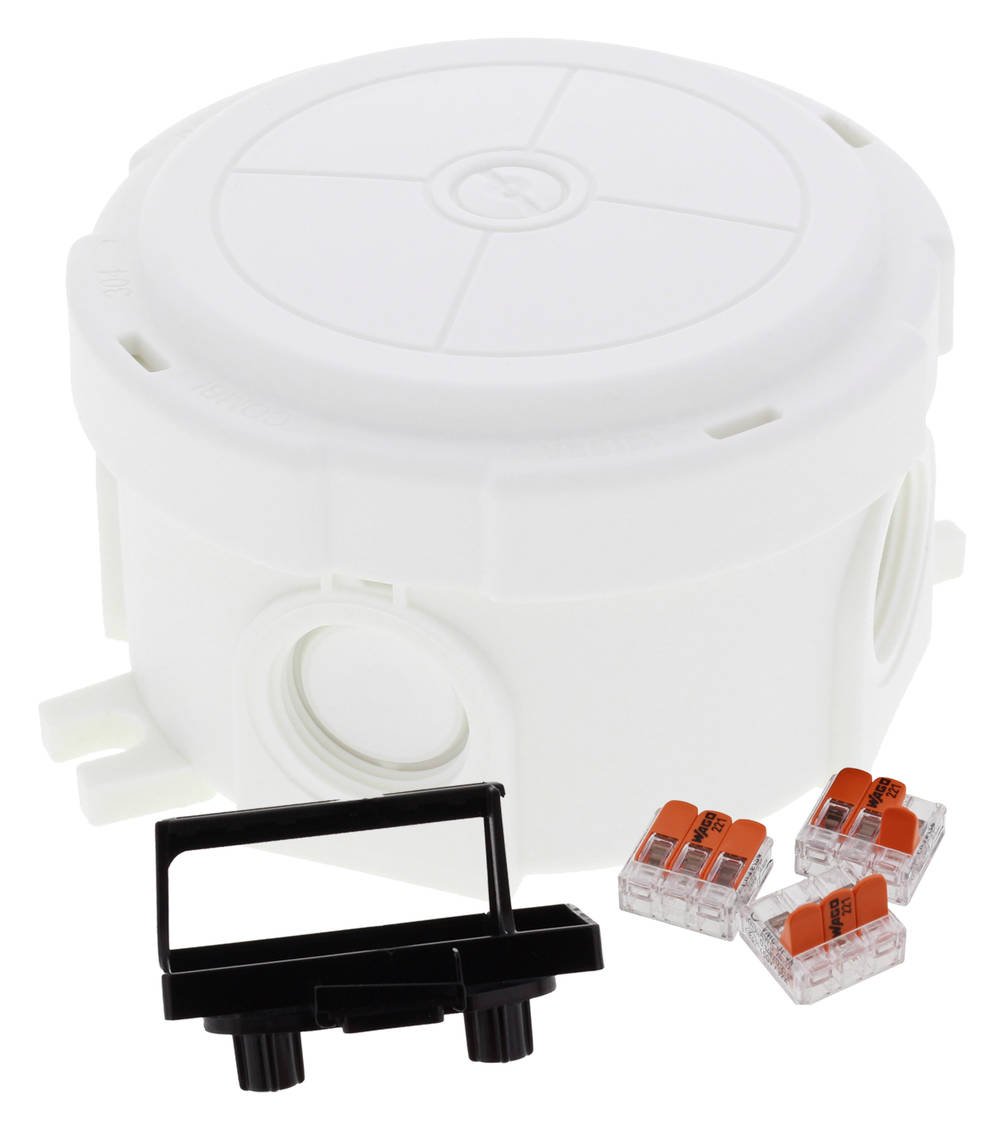

WISKA 10110637 COMBI 304 / 3-221-413 WH junction box, 82 diameter x 57mm, white, plastic, with Wago terminals

Name: WISKA 10110637 COMBI 304 / 3-221-413 WH junction box, 82 diameter x 57mm, white, plastic, with Wago terminals
Brand: WISKA
SKU: 10736
Price: 99999 GBP
Availability: InStock

Part: 10110637

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

4 M20 threaded membrane entries
including terminal carrier on quick mounting plate mounted
3x WAGO 221-413 enclosed loose

Material :	Polypropylene
Material sealing gasket :	TPE
Temp. range min :	-30 °C
Temp. range max :	100 °C
Temperatures during install. :	-5 °C - 60 °C
Protection class :	IP66 / IP67
Glow wire test :	750 °C
Voltage :	400 V
Rated cross section :	2,5 mm²
Terminals/poles :	4 mm²
Fixing :	2 external mounting feet
Ø cable diameter min :	3 mm
Ø cable diameter max :	12 mm
External dimensions LxWxH :	Ø 82 x 57mm
Type of cable gland :	M 20 x 1,5
Product Color :	RAL 9001
WISKA-Order no. :	10110637
Type :	COMBI 304 / 3-221-413 WH
