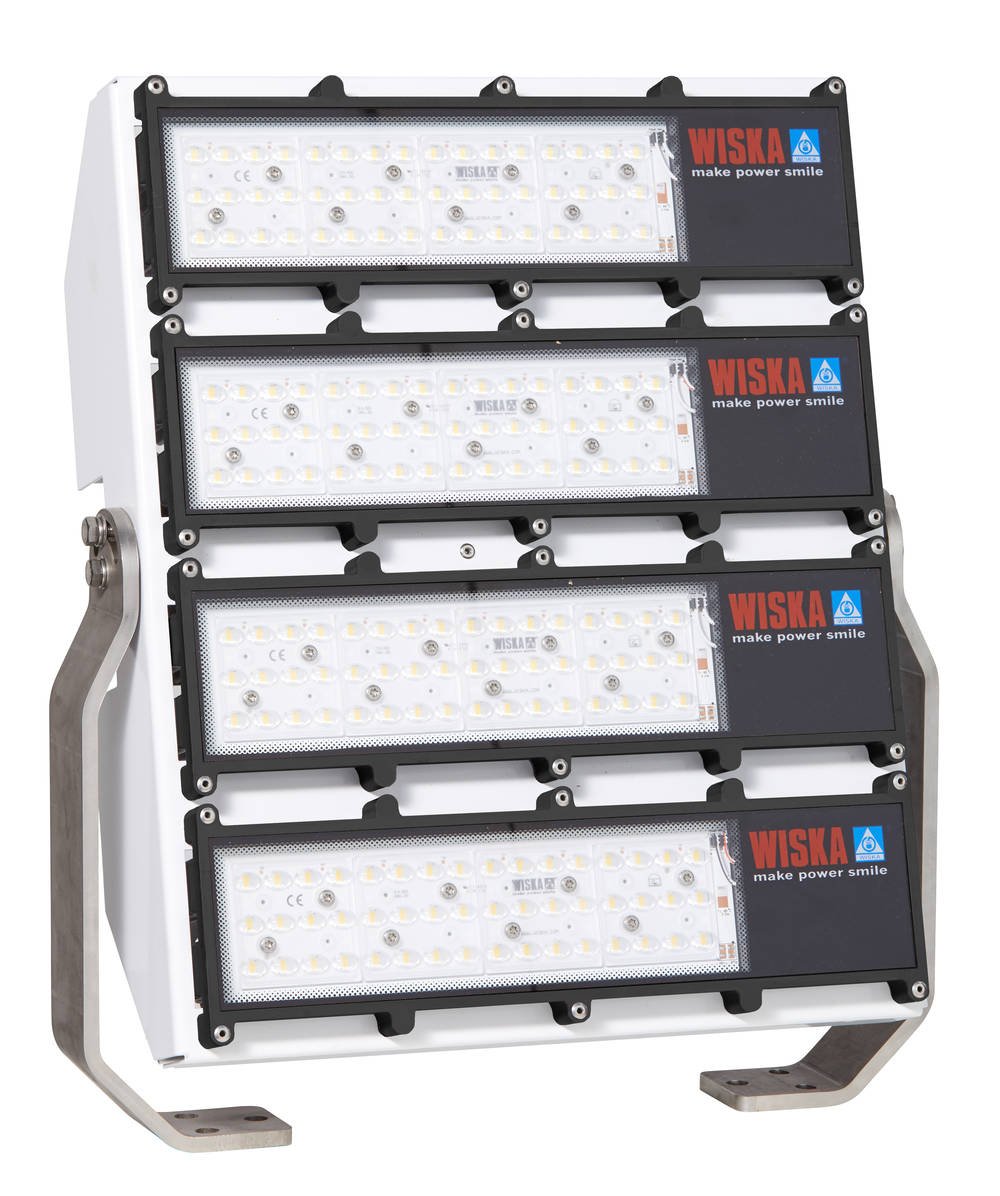

WISKA 10110456 (5000-4x40W-MV-WB-FN-1AA) LED Floodlight 5000, 4 x 40W, 100-240V, wide beam

Name: WISKA 10110456 (5000-4x40W-MV-WB-FN-1AA) LED Floodlight 5000, 4 x 40W, 100-240V, wide beam
Brand: WISKA
SKU: 10806
Price: 99999 GBP
Availability: InStock

Part: 10110456

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

wide beam
seawater resistant module housing
made of special heat conducting plastic
stainless steel frame, back cover and mounting bracket, back cover white powder coated
connection box COMBI 407
1 cable gland ESKV25 for cable 9-17mm in diameter
2x3-pole terminal max. 4mm²

Material :	Stainless steel, Plastic
Wattage :	160 W
Power^ :	4 x 40 W
Voltage :	230 V
Voltage min. (V) :	100 V
Voltage max. (V) :	240 V
Type of Voltage :	AC
Frequence :	50/60 Hz
Protection class :	IP66 / IP67
Temp. range min :	-30 °C
Temp. range max :	55 °C
Operational areas :	Indoor / Outdoor
Mounting :	Ceiling, Upside, Wall
Reflector :	Wide beam
Lightsource :	LED
Lightsource incl. :	Yes
Luminous flux :	16000 Im
Colour temperature :	5600 K
Colour rendering index :	? 80
Rated Lifetime :	L70/B10 @Ta +45 °C
System Lifetime :	120000 h
Type of cable gland :	ESKV 25 / 9-17mm
Material cable gland :	Polyamide
Ø cable diameter min :	9 mm
Ø cable diameter max :	17 mm

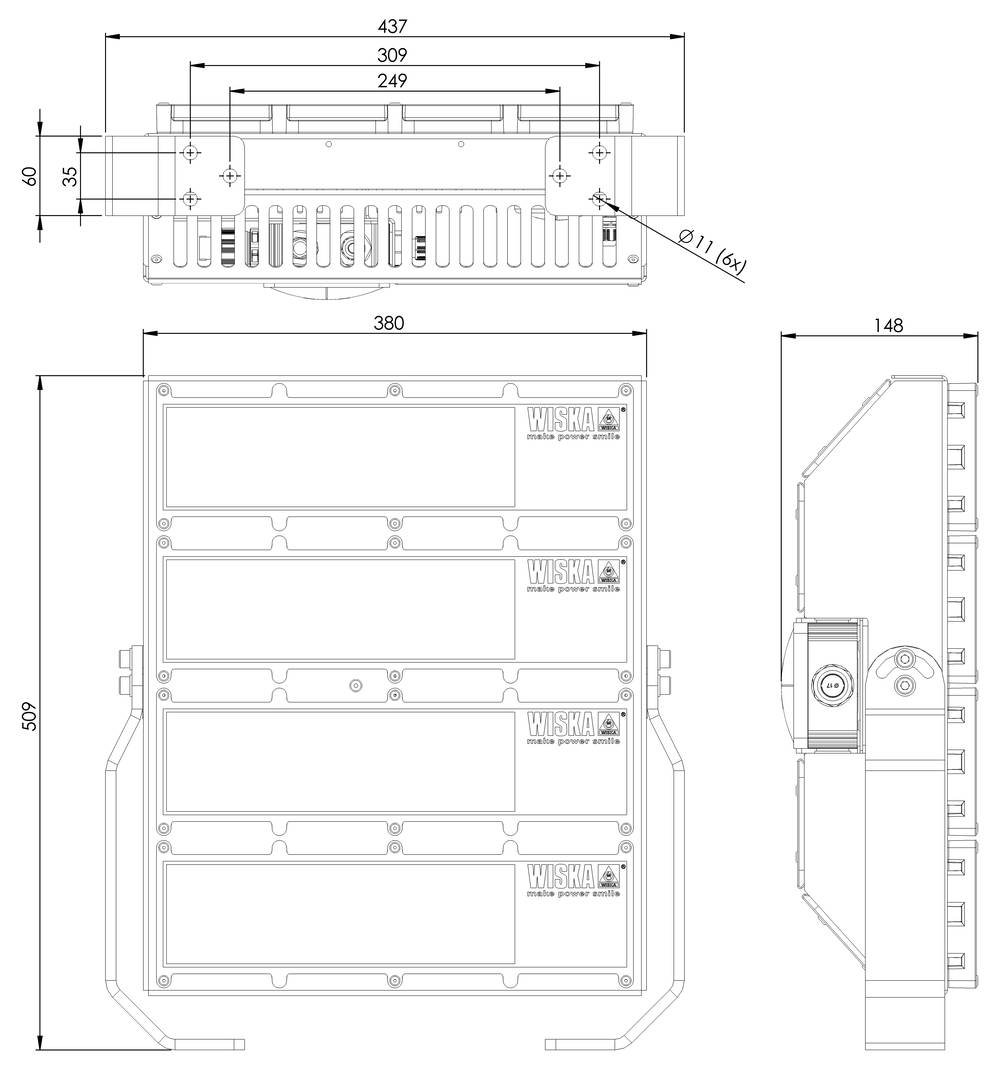

External dimensions LxWxH :	437x509x148mm
Weight :	16,7 kg
