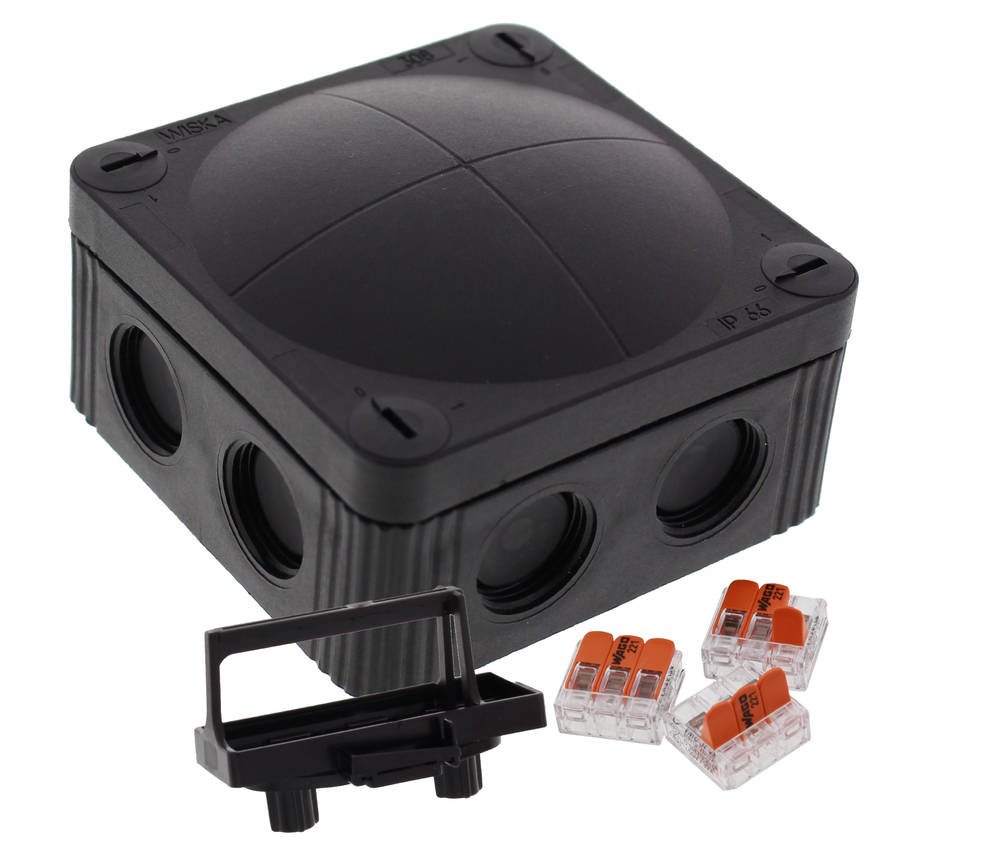

WISKA 10110404 COMBI 308 BK / 3-221-413 junction box, 85 x 85 x 51mm, black, plastic, with Wago terminals
Image is for illustrative purposes only
Previous
Next
WISKA 10110404 COMBI 308 BK / 3-221-413 junction box, 85 x 85 x 51mm, black, plastic, with Wago terminals
WISKA 10110404 COMBI 308 BK / 3-221-413 junction box, 85 x 85 x 51mm, black, plastic, with Wago terminals
Dimensions
Dimensions
Dimensions

WISKA 10110404 COMBI 308 BK / 3-221-413 junction box, 85 x 85 x 51mm, black, plastic, with Wago terminals

Part: 10110404
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 8x M20 threaded membrane entries
  • 4 captive cover screws
  • including mounting clip
  • including terminal carrier on quick mounting plate mounted with
  • 3x WAGO 221-413

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66 / IP67
Glow wire test :750 °C
Voltage :400 V
Rated cross section :4 mm²
Fixing :4 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :12 mm
External dimensions LxWxH :85 x 85 x 51mm
Type of cable gland :M 20 x 1,5
Product Color :RAL 9005
WISKA-Order no. :10110404
Type :COMBI 308 BK / 3-221-413
