WISKA 10110226 BCAB-L CP 17-20 LED BK COMBI 206 adaptable box installation kit

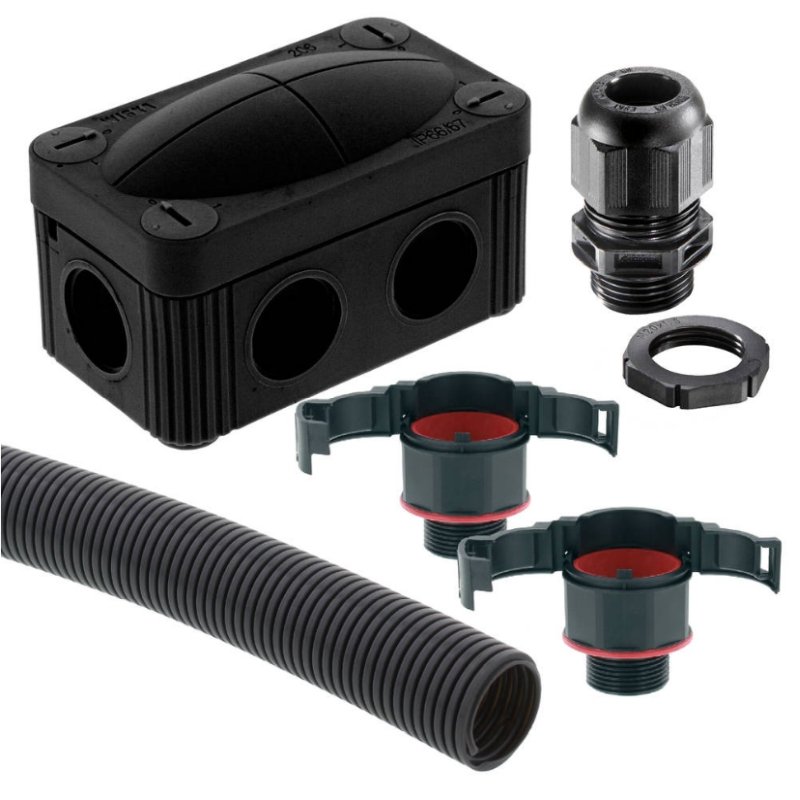

BC-KIT 1 Includes:
2 x EBFS 17-20/
1 x COMBI 206/ 1m BCAB-L 17/
1 x ESKV 20+/
1 x EMUG 20

EBFS 17-20 - Material number 10106867
Material Conduit fitting polyamide UL94-V0
Material Connection thread polyamide UL94-V0
Material sealing gasket TPU
Protection class IP66, IP68
Temp. range min -40 °C
Temp. range max 100 °C
Operational areas EN 45545 - Railway
NW 17
Thread type M
Ø Connection thread D 20
Lead 1,5
Length screw-in thread L 12 mm
Ø closure VD 32,7 mm
Ø inside 14,8 mm
Key width SW 27 mm
Total length TL 41,5 mm
Type of conduit fitting straight
UL 1696 Yes
Product Color RAL 9005

COMBI 206 - Material number 10109571
Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
Voltage 400 V
Rated cross section 1,5 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
External dimensions LxWxH 85 x 49 x 51mm
Using for cable gland Using for cable gland
Product Color RAL 9005

BCAB-L 17 - Material number 10109185
Material PA6 UL94-HB
Temp. range min -40 °C
Temp. range max 140 °C
Product Color RAL 9005
NW 17
External diameter ED 21,2 mm
Ø inside 16,8 mm
Profile width A 3,3 mm
Width B 2,3 mm
Bending radius R 50 mm
Wall thickness S 0,3 mm
Model light

ESKV 20+ - Material number 10100825
Material cable gland Polyamide
Material sealing gasket EPDM
Protection class IP69, IP68 (5 bar 30 min)
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 750 °C
Thread type M
Ø Connection thread D 20
Lead 1,5
Length screw-in thread L 10 mm
Ø cable diameter min 7,5 mm
Ø cable diameter max 14 mm
Ø cable diameter UL 7,5 mm - 14 mm
Key width SW 24 mm
Collar diameter (E) 27 mm
Total length TL 36 mm - 45 mm
Type of cable anchorage A
Install. torques fitting 4 N/m
Install. torques cap nut 3 N/m
Impact category 2

EMUG 20 - Material number 10061782
Material Polyamide, fibre reinforced
Temp. range min -40 °C
Temp. range max 100 °C
Glow wire test 650 °C
Thread type M
Ø Connection thread D 20
Lead 1,5
Key width SW 27 mm
Collar diameter (E) 29 mm
Total length TL 5 mm
Product Color RAL 9005
