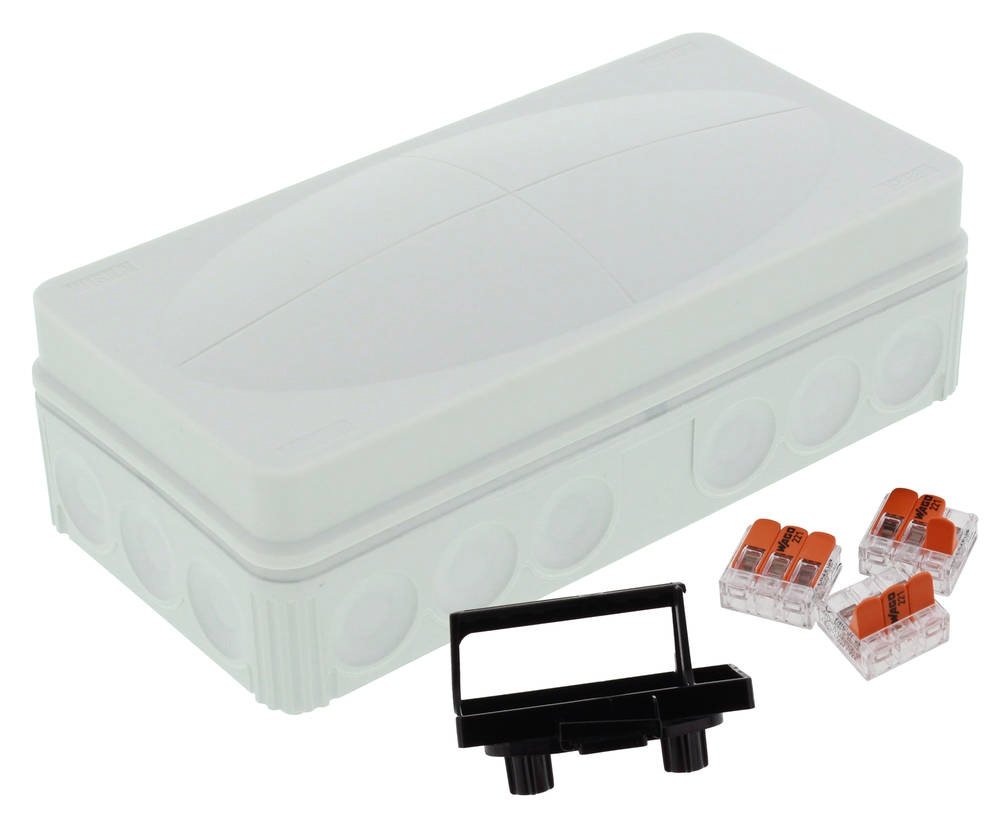

WISKA 10110032 COMBI 116 LG / 3xWAGO 221-413 junction box, 152 x 76 x 51mm, grey, plastic, with Wago terminals
Image is for illustrative purposes only
WISKA 10110032 COMBI 116 LG / 3xWAGO 221-413 junction box, 152 x 76 x 51mm, grey, plastic, with Wago terminals

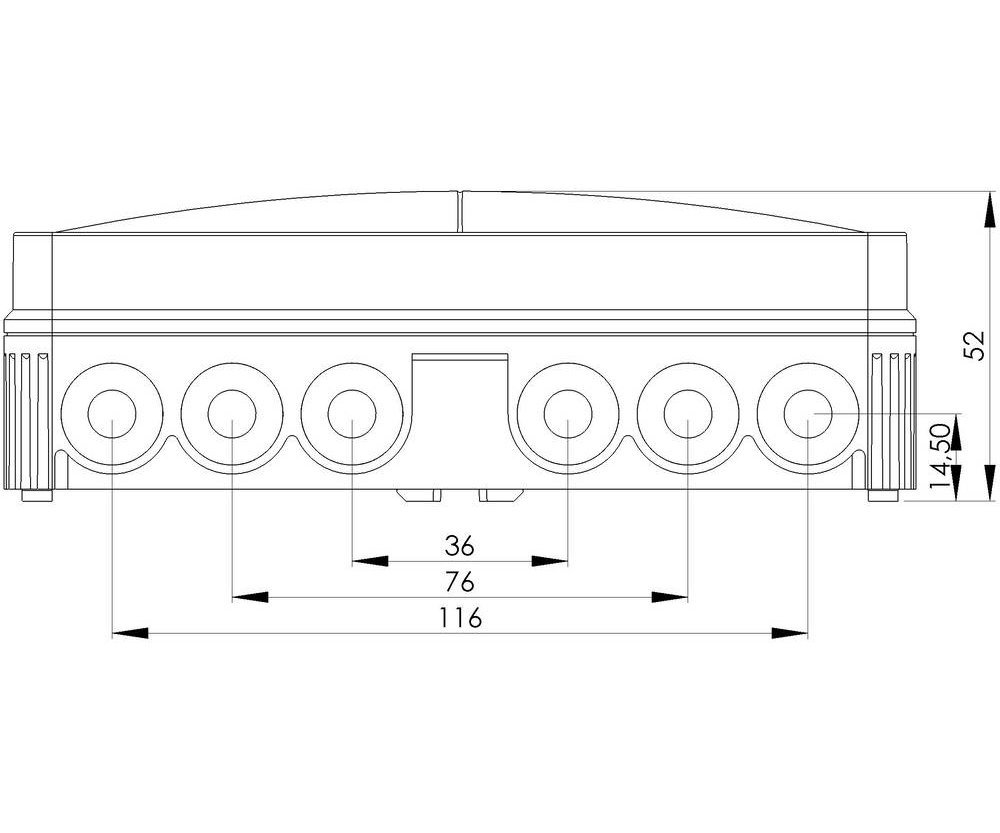

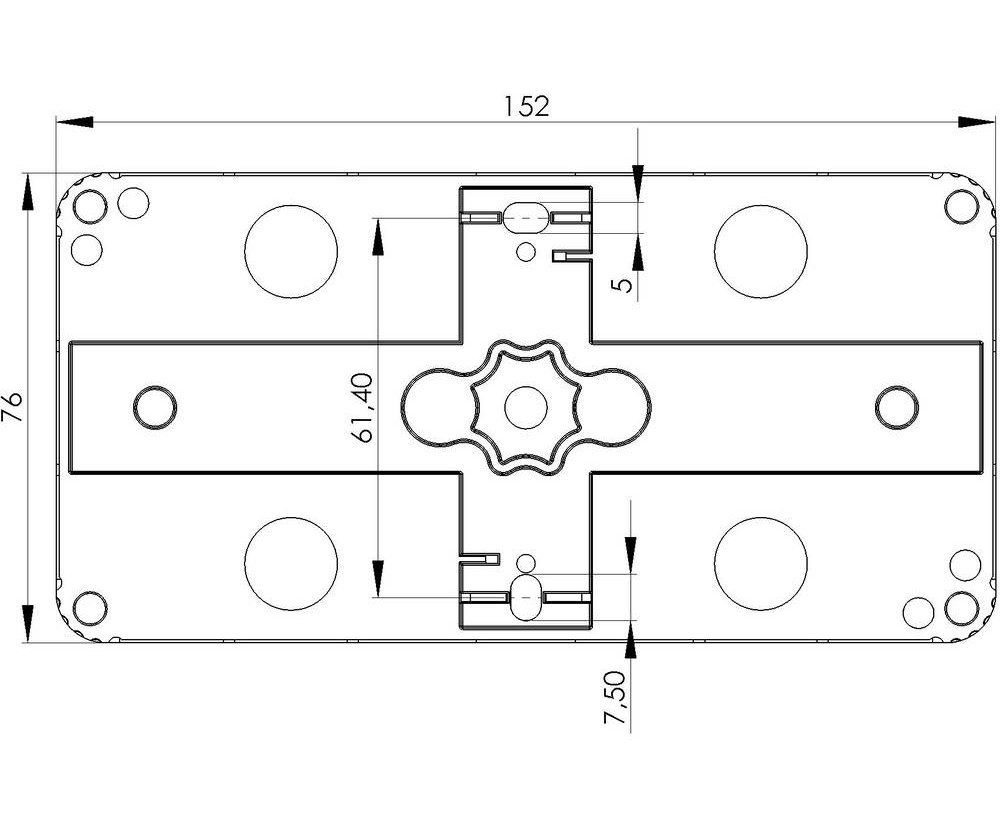

Dimensions
Dimensions

WISKA 10110032 COMBI 116 LG / 3xWAGO 221-413 junction box, 152 x 76 x 51mm, grey, plastic, with Wago terminals

Part: 10110032
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 18 elastic self-sealing puncture-membranes for cable entry on the side and 4 in the bottom
  • including terminal carrier on quick mounting plate mounted + 3x WAGO 221-413 enclosed loose

This item can be ordered directly via our Seltec web site at: WISKA 10110032

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66
Glow wire test :750 °C
Voltage :400 V
Rated cross section :1,5 mm²
Terminals/poles :6 mm²
Fixing :4 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :12 mm
External dimensions LxWxH :152 x 76 x 51mm
Product Color :RAL 7035
Order no. RAL 7035:10110032
Type :COMBI 116 LG / 3xWAGO 221-413
