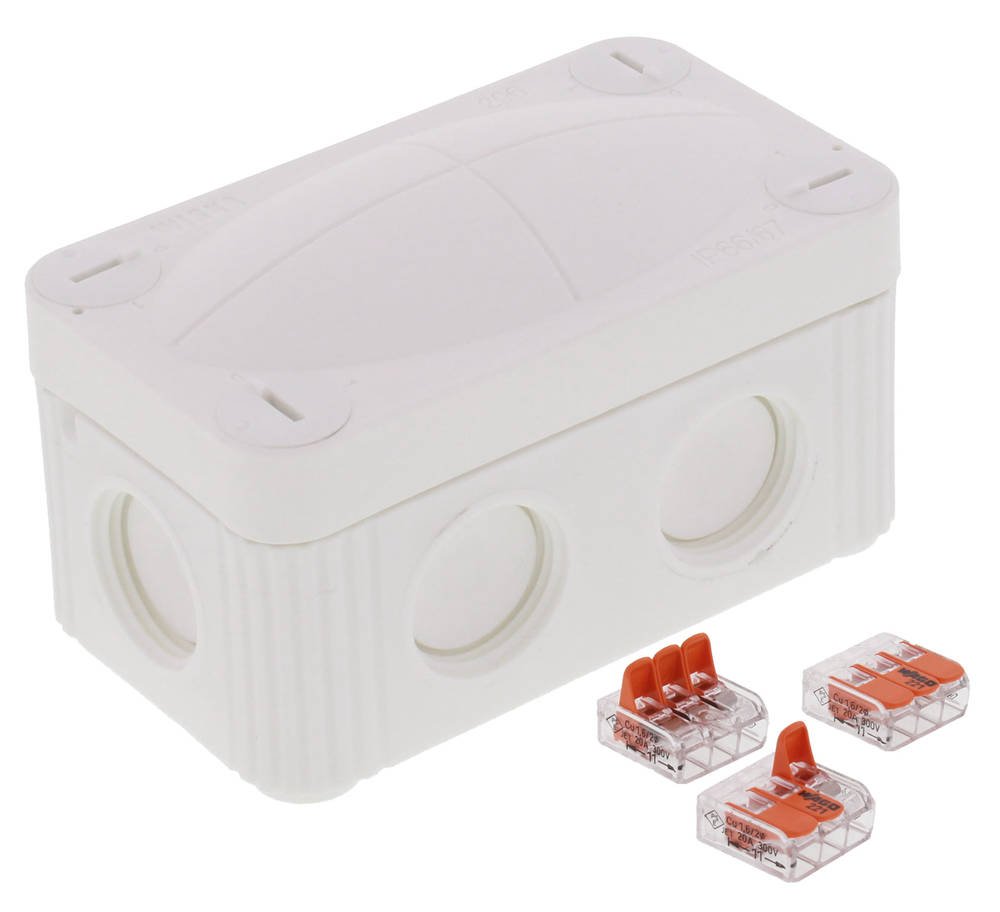

WISKA 10109902 COMBI 206 WH / 3xWAGO 221-413 junction box, 85 x 49 x 51mm, white, plastic, with Wago terminals

Name: WISKA 10109902 COMBI 206 WH / 3xWAGO 221-413 junction box, 85 x 49 x 51mm, white, plastic, with Wago terminals
Brand: WISKA
SKU: 10728
Price: 99999 GBP
Availability: InStock

Part: 10109902

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

6 M20 threaded membrane entries
2 membrane cable entries through rear
4 captive cover screws
Including 3x WAGO 221-413 enclosed loose
Fixing with 4 internal openings outside of the sealing area

Material :	Polypropylene
Material sealing gasket :	TPE
Temp. range min :	-30 °C
Temp. range max :	100 °C
Temperatures during install. :	-5 °C - 60 °C
Protection class :	IP66 / IP67
Glow wire test :	750 °C
Voltage :	400 V
Rated cross section :	1,5 mm²
Terminals/poles :	4 mm²
Fixing :	4 internal openings
Ø cable diameter min :	3 mm
Ø cable diameter max :	12 mm

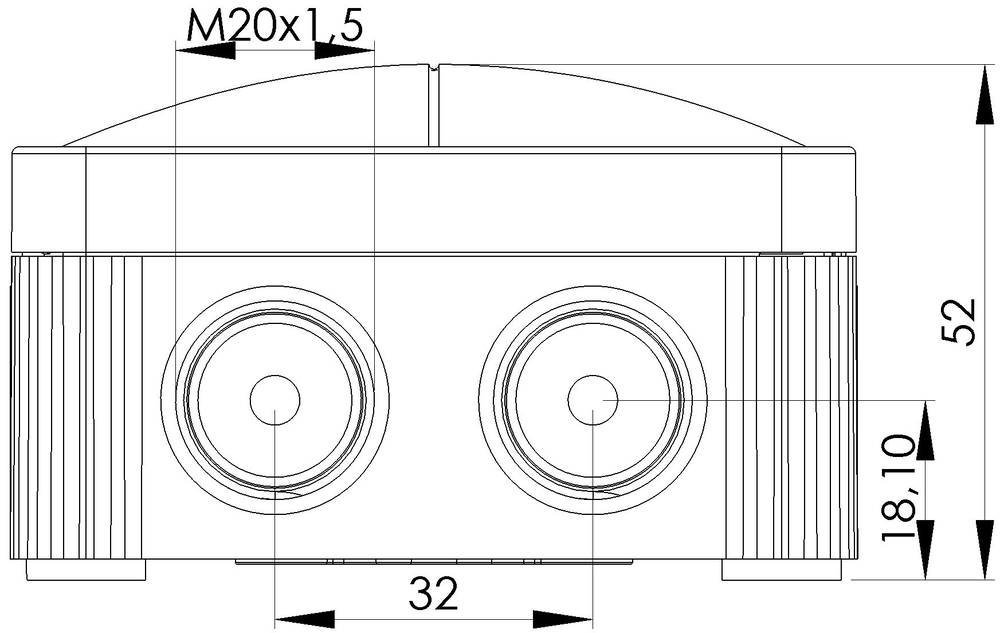

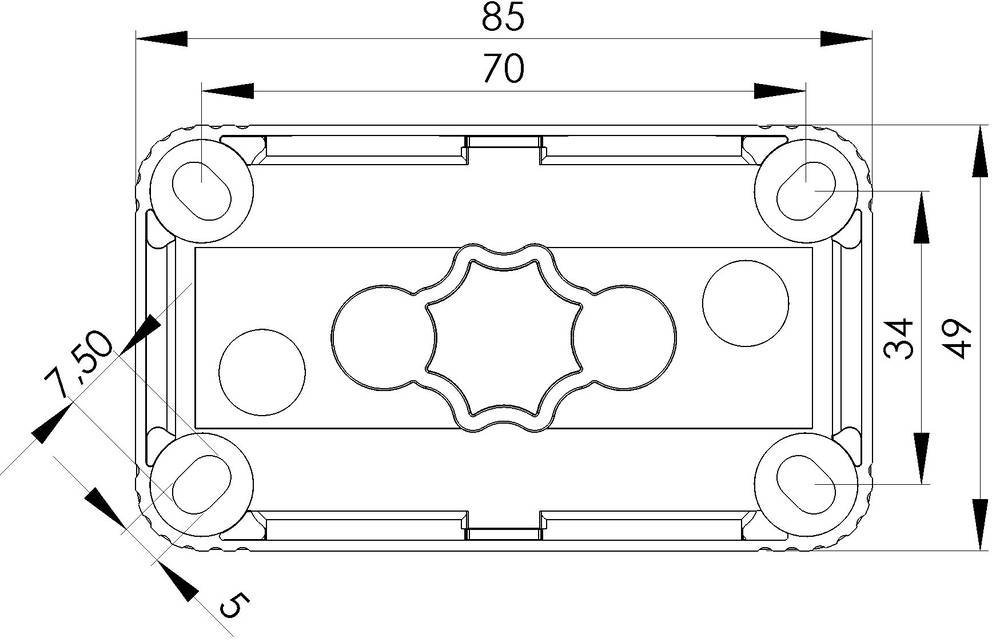

External dimensions LxWxH :	85 x 49 x 51mm
Product Color :	RAL 9001
Order no. RAL 9001:	10109902
Type :	COMBI 206 WH / 3xWAGO 221-413
