WISKA 10106867 EBFS-17-20-BK Conduit fitting
Image is for illustrative purposes only
WISKA 10106867 EBFS-17-20-BK Conduit fitting
WISKA 10106867 EBFS-17-20-BK Conduit fitting

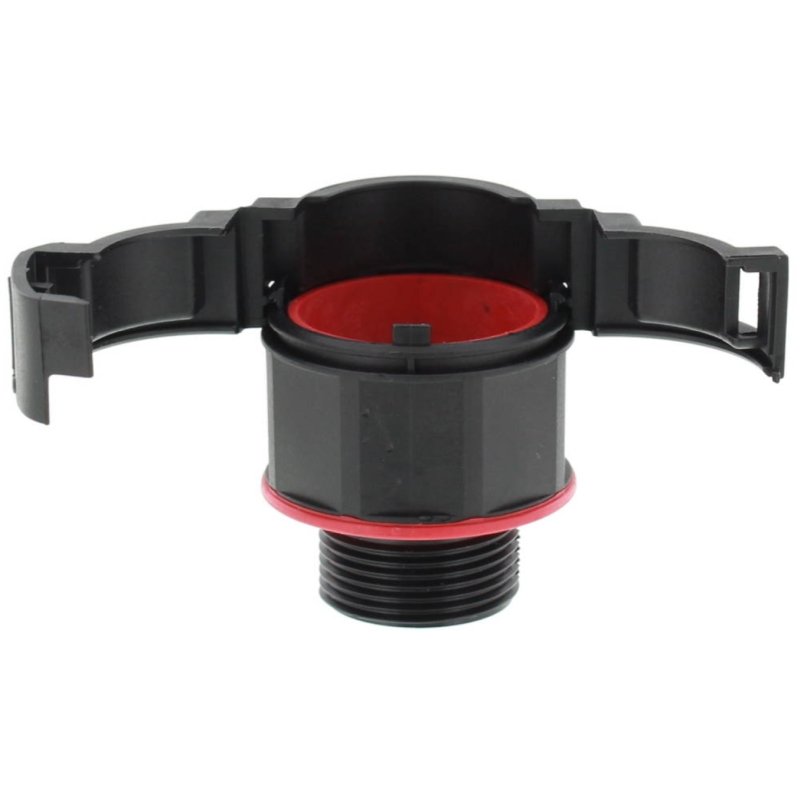

WISKA 10106867 EBFS-17-20-BK Conduit fitting, straight, non-metallic, RAL 9005, NW 17 / M20

Part: 10106867
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Material Conduit fitting :polyamide UL94-V0
Material Connection thread :polyamide UL94-V0
Material sealing gasket :TPU
Protection class :IP68, IP66
Temp. range min :-40 °C
Temp. range max :100 °C
Operational areas :EN 45545 - Railway
NW :17
Thread type :M

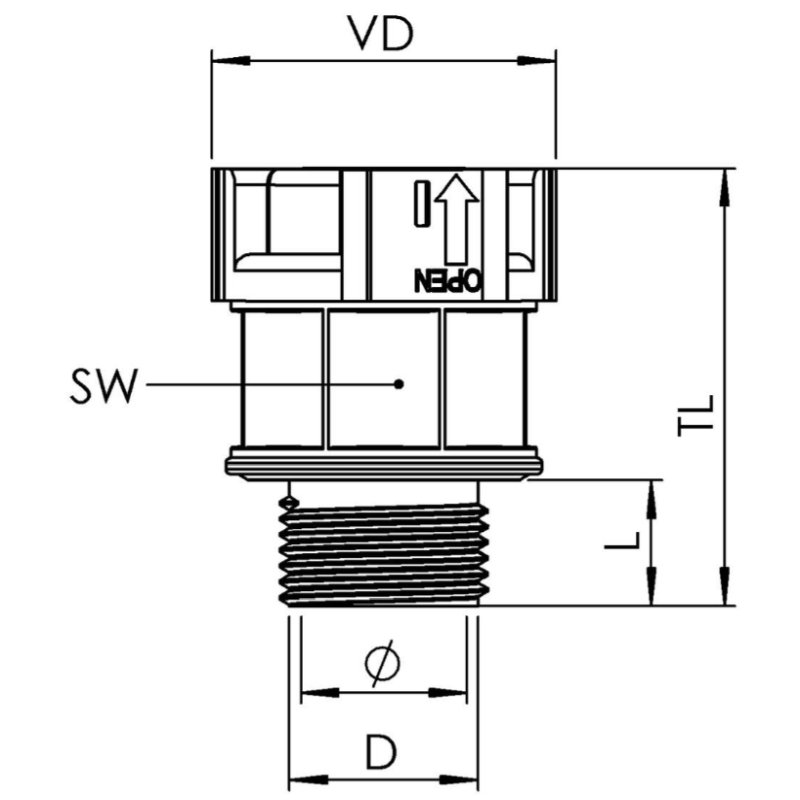

Ø Connection thread D :20
Lead :1,5
Length screw-in thread L :12 mm
Ø closure VD :33,2 mm
Ø inside :14,8 mm
Key width SW :27 mm
Total length TL :41,5 mm
Type of conduit fitting :straight
UL 1696 :Yes
Product Color :RAL 9005

Make an enquiry

...
