WISKA 10106804 (4000-2x13-230-2-CC) LED luminaire, double, 2x 13W, 230V, Connection box 1210

Part: 10106804

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Maintenance-free - No driver and only a few components reduce maintenance costs to a minimum
Time-saving installation - Assembly and installation in just a few steps, available in all standard installation dimensions
Robust - Non-corrosive, withstands vibrations, salt water and UV resistant, watertight
Connection box COMBI 1210
2 cable glands ESKV-L 25 included
Breathing via VentPLUG mounted in end cap
Mounting via 2 mounting rails

Material :	Polycarbonate
Globe colour :	Clear
Wattage :	26 W
Power^ :	2 x 13 W
Voltage :	230 V
Type of Voltage :	AC
Protection class :	IP66 / IP67
Frequence :	50/60 Hz
Connection :	connection box 1210
Temp. range max :	55 °C
Temp. range min :	-30 °C
Operational areas :	Engine room, Outdoor, Cargo hold
Ų cable diameter min :	9 mm
Colour rendering index :	CRI > 80
Ų cable diameter max :	17 mm
Lightsource :	LED
Lightsource incl. :	Yes
Colour temperature :	5600 K
Rated Lifetime :	L70/B50 @Ta +35 °C
System Lifetime :	100000 h
Mounting :	Surface mounting, Ceiling, Wall
Material cable gland :	Polyamide
Colour :	RAL 7035

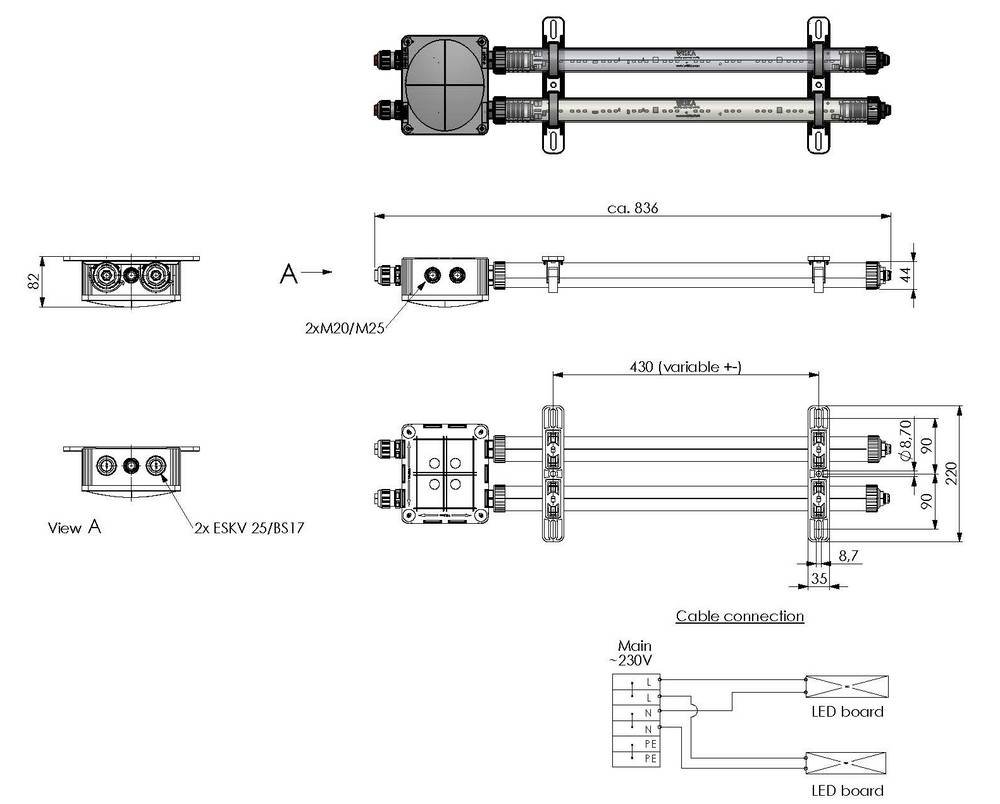

External dimensions LxWxH :	791x220x83mm
Approval :	DNV-GL, RMRS
Weight :	1,2 kg
