WISKA 10106768
Image is for illustrative purposes only
WISKA 10106768
WISKA 10106768
WISKA 10106768

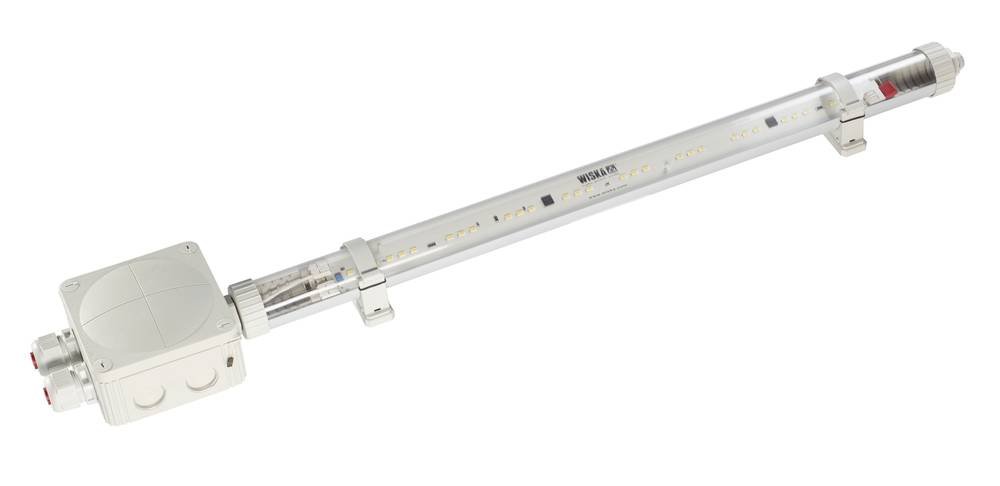

WISKA 10106768 (4000-1x26-230-2-CE) LED luminaire, single, 1x 26W, 220V, Connection box 607

Part: 10106768
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Maintenance-free - No driver and only a few components reduce maintenance costs to a minimum
  • Time-saving installation - Assembly and installation in just a few steps, available in all standard installation dimensions
  • Robust - Non-corrosive, withstands vibrations, salt water and UV resistant, watertight
  • Connection box COMBI 607
  • 2 cable glands ESKV 25 RDE included
  • Breathing via VentPLUG mounted in end cap
  • Mounting via 2 clamps

Material :Polycarbonate
Globe colour :Clear
Wattage :26 W
Power^ :1 x 26 W
Voltage :220 V
Type of Voltage :AC
Protection class :IP66 / IP67
Frequence :50/60 Hz
Connection :Connection box 607
Temp. range max :55 °C
Temp. range min :-30 °C
Operational areas :Cargo hold, Engine room, Outdoor
Ø cable diameter min :7 mm
Colour rendering index :CRI > 80
Ø cable diameter max :17 mm
Lightsource :LED
Lightsource incl. :Yes
Colour temperature :5600 K
Rated Lifetime :L70/B50 @Ta +35 °C
System Lifetime :100000 h
Mounting :Ceiling, Wall, Surface mounting
Colour :RAL 7035

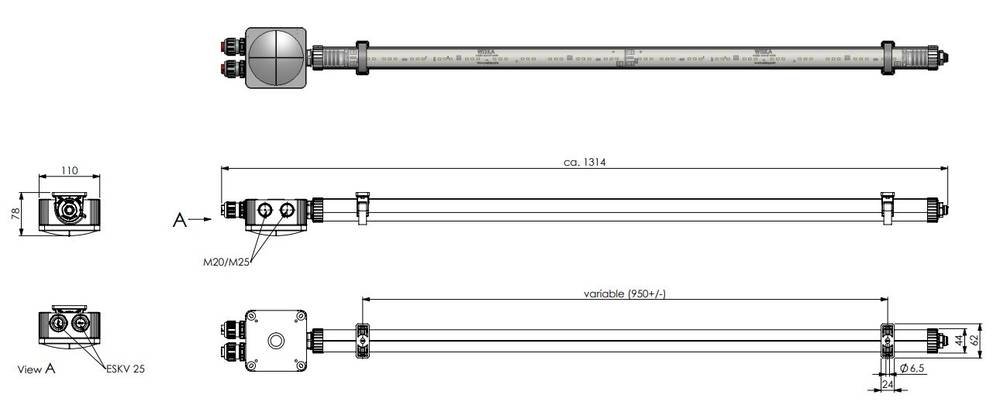

External dimensions LxWxH :1175x62x53mm
Approval :DNV-GL, RMRS
Weight :0,95 kg
