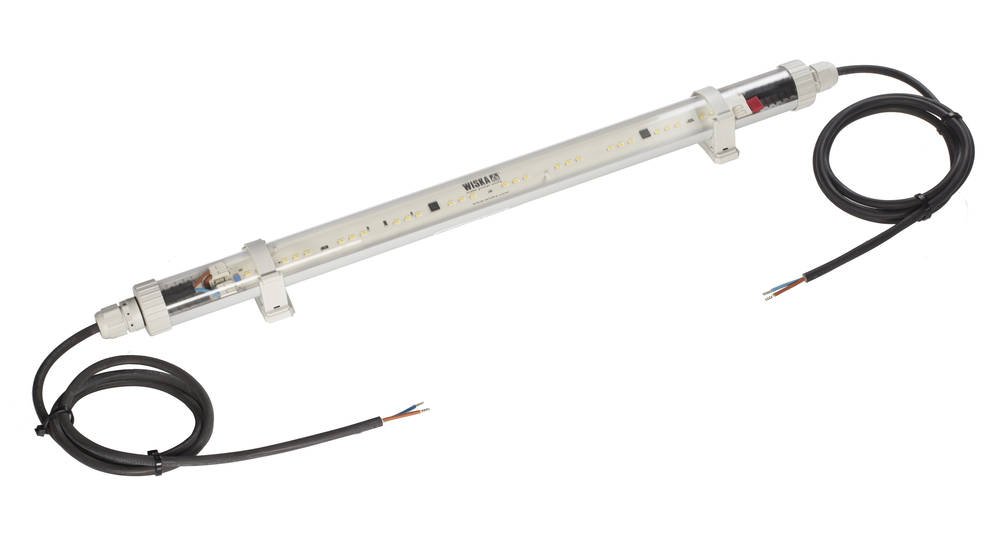

WISKA 10106247 (4000-1x26-230-3-T) LED luminaire, single, 1x 26W, 230V, 1.5m cable, through wiring

Part: 10106247
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • Maintenance-free - No driver and only a few components reduce maintenance costs to a minimum
  • Time-saving installation - Assembly and installation in just a few steps, available in all standard installation dimensions
  • Robust - Non-corrosive, withstands vibrations, salt water and UV resistant, watertight
  • 1,5m connecting cable 2x1,5mm²
  • outer diameter 7,6mm
  • with through wiring
  • Breathing via VentGLAND cable gland
  • Mounting via two clamps

Material :Polycarbonate
Globe colour :Clear
Wattage :26 W
Power^ :1 x 26 W
Voltage :230 V
Type of Voltage :AC
Protection class :IP66 / IP68 (0,2 bar 30min)
Frequence :50/60 Hz
Connection :1,5m cable
Temp. range max :55 °C
Temp. range min :-30 °C
Operational areas :Cargo hold, Engine room, Outdoor
Through wiring :2x1,5mm²
Colour rendering index :CRI > 80
Lightsource :LED
Lightsource incl. :Yes
Colour temperature :5600 K
Rated Lifetime :L70/B50 @Ta +35 °C
System Lifetime :100000 h
Mounting :Wall, Ceiling, Surface mounting
Colour :RAL 7035
Equipment :Through wiring

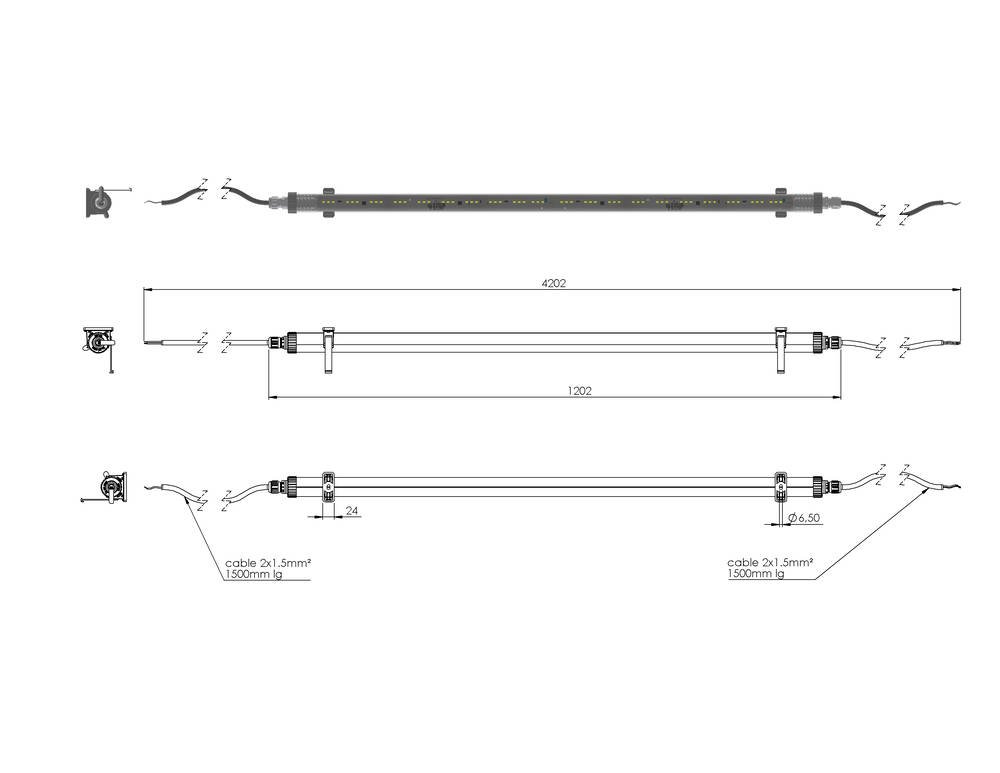

External dimensions LxWxH :1175x62x53mm
Approval :DNV-GL, RMRS
Weight :1,03 kg
