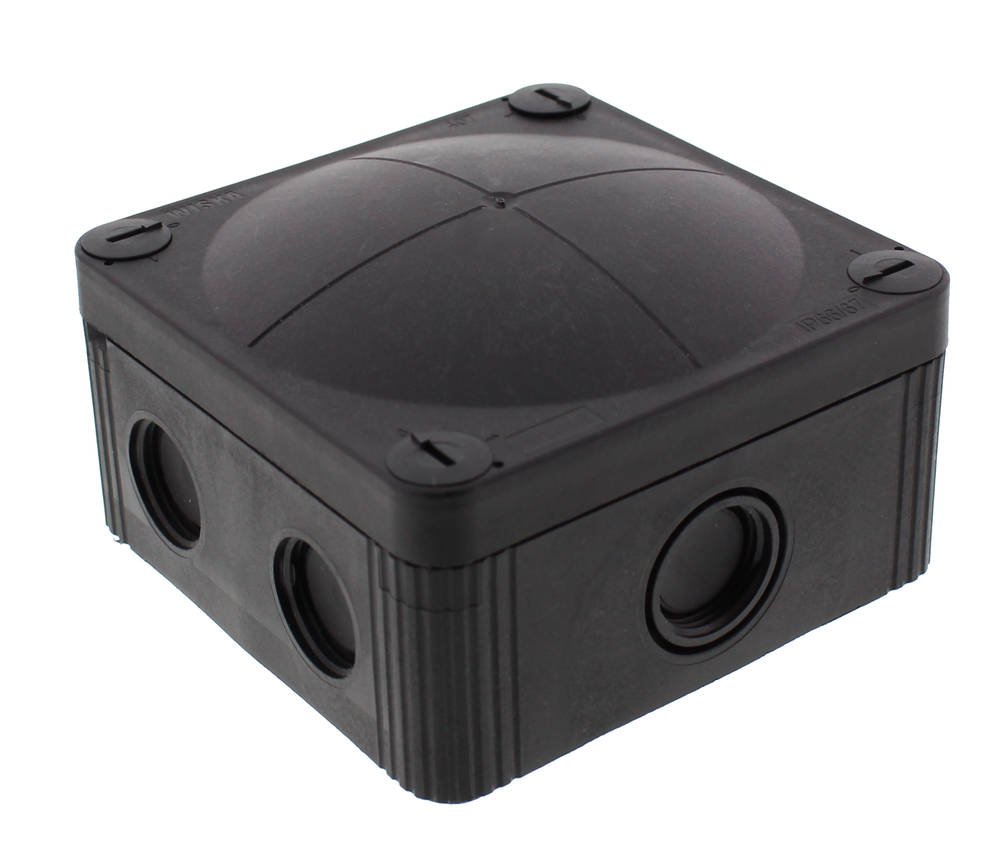

WISKA 10105601 COMBI 407 BK junction box, 95 x 95 x 60mm, black, plastic

Name: WISKA 10105601 COMBI 407 BK junction box, 95 x 95 x 60mm, black, plastic
Brand: WISKA
SKU: 10721
Price: 99999 GBP
Availability: InStock

Part: 10105601

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Material :	Polypropylene
Material sealing gasket :	TPE
Temp. range min :	-30 °C
Temp. range max :	100 °C
Temperatures during install. :	-5 °C - 60 °C
Protection class :	IP66 / IP67
Glow wire test :	750 °C
Voltage :	690 V
Rated cross section :	4 mm²
Fixing :	4 internal openings
Ø cable diameter min :	3 mm
Ø cable diameter max :	12 mm

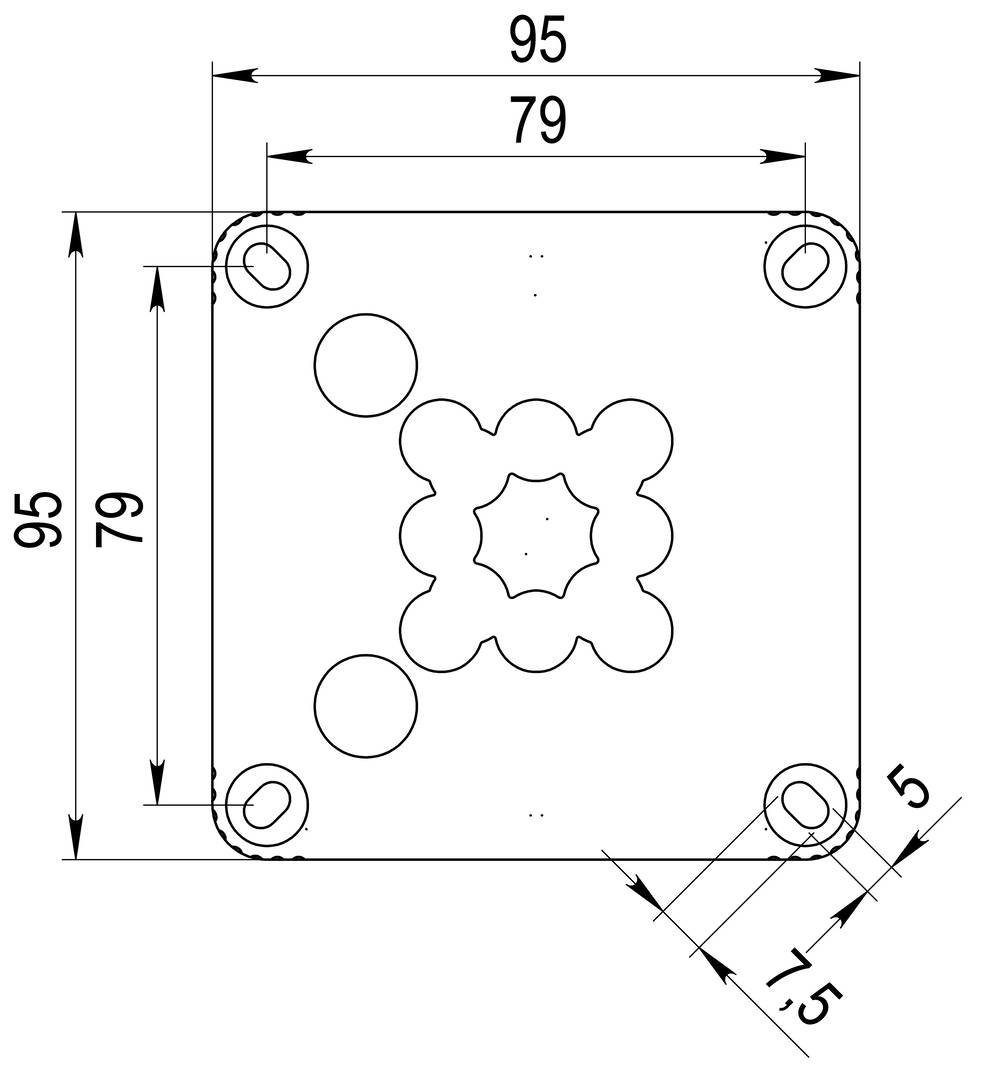

External dimensions LxWxH :	95 x 95 x 60mm

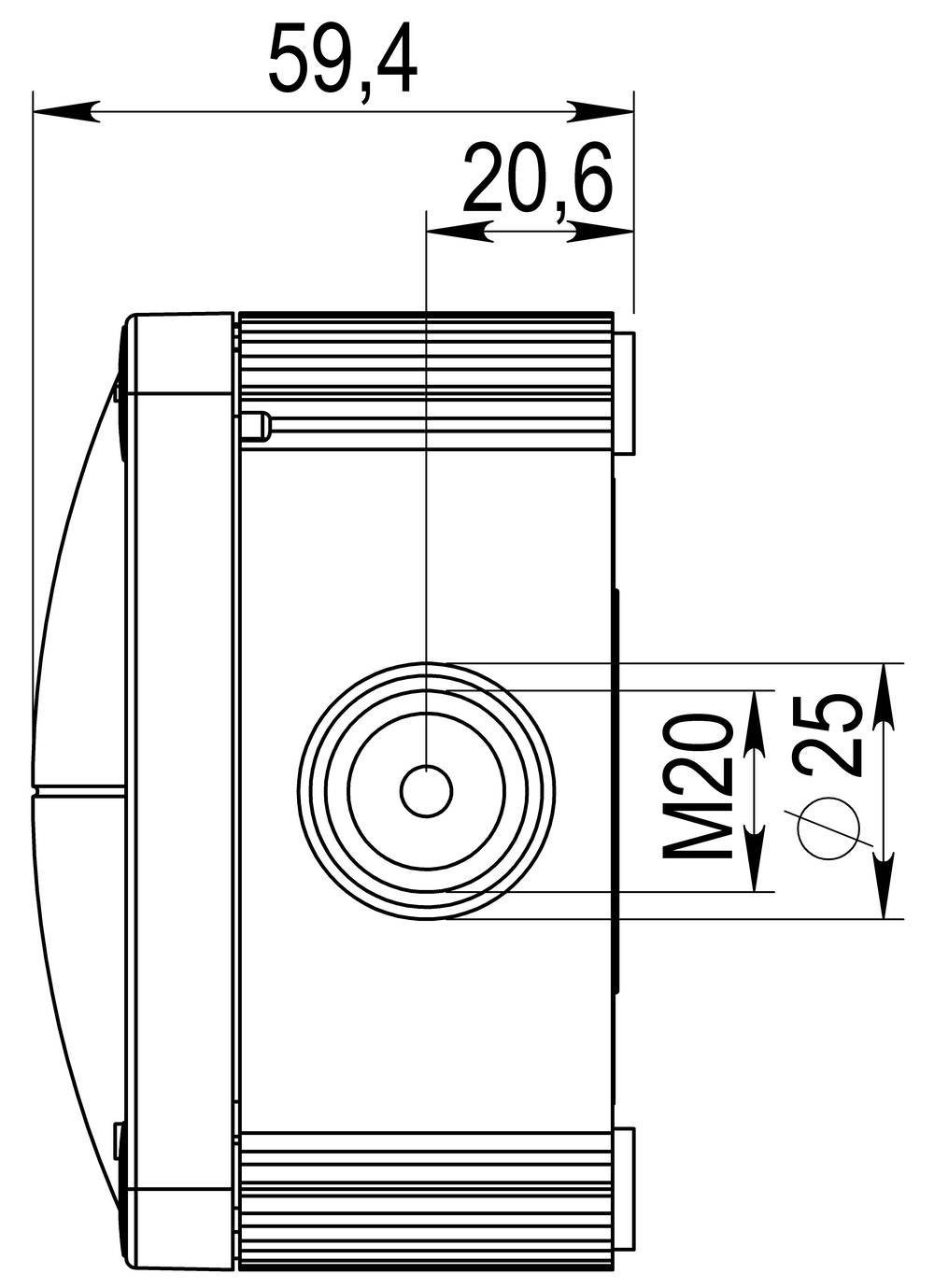

Type of cable gland :	M 20 x 1,5, M 25 x 1,5
Product Color :	RAL 9005
WISKA-Order no. :	10105601
Type :	COMBI 407 BK
