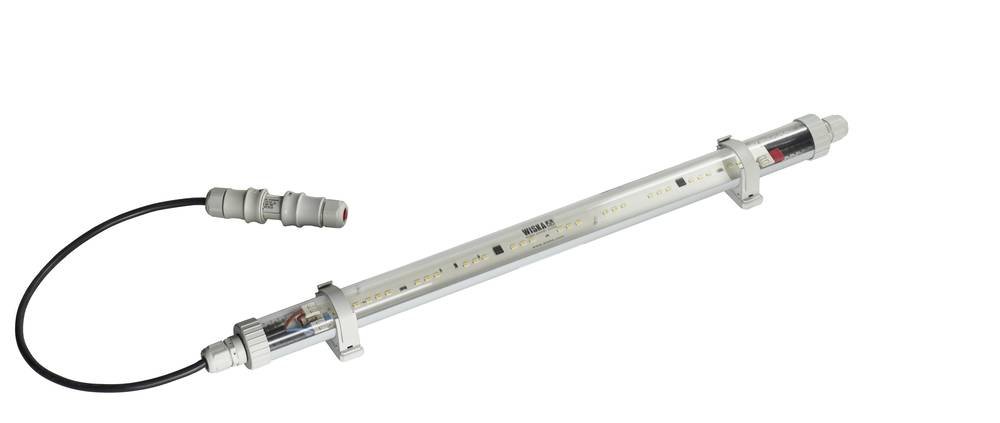

WISKA 10105524 (4000-1x13-230-4-T-SR2) LED luminaire, single, 1x 13W, 230V, plug-cable-socket, through wiring

Name: WISKA 10105524 (4000-1x13-230-4-T-SR2) LED luminaire, single, 1x 13W, 230V, plug-cable-socket, through wiring
Brand: WISKA
SKU: 10766
Price: 99999 GBP
Availability: InStock

Part: 10105524

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

Maintenance-free - No driver and only a few components reduce maintenance costs to a minimum
Time-saving installation - Assembly and installation in just a few steps, available in all standard installation dimensions
Robust - Non-corrosive, withstands vibrations, salt water and UV resistant, watertight
0,5m connection cable 2x1,5mm²
with two Wieland quick connector male/female
with through wiring
Cable out diameter 13-18mm
Breathing via VentGland mounted to end cap
Mounting via two clamps
Mounting via two clamps

Material :	Polycarbonate
Globe colour :	Clear
Wattage :	13 W
Power^ :	1 x 13 W
Voltage :	230 V
Type of Voltage :	AC
Protection class :	IP66 / IP68 (0,2 bar 30min)
Frequence :	50/60 Hz
Connection :	plug-cable-socket
Temp. range max :	55 °C
Temp. range min :	-30 °C
Operational areas :	Cargo hold, Outdoor, Engine room
Through wiring :	2x1,5mm²
Ø cable diameter min :	13 mm
Colour rendering index :	CRI > 80
Ø cable diameter max :	18 mm
Lightsource :	LED
Lightsource incl. :	Yes
Colour temperature :	5600 K
Rated Lifetime :	L70/B50 @Ta +35 °C
System Lifetime :	100000 h
Mounting :	Wall, Surface mounting, Ceiling
Colour :	RAL 7035
Equipment :	Through wiring

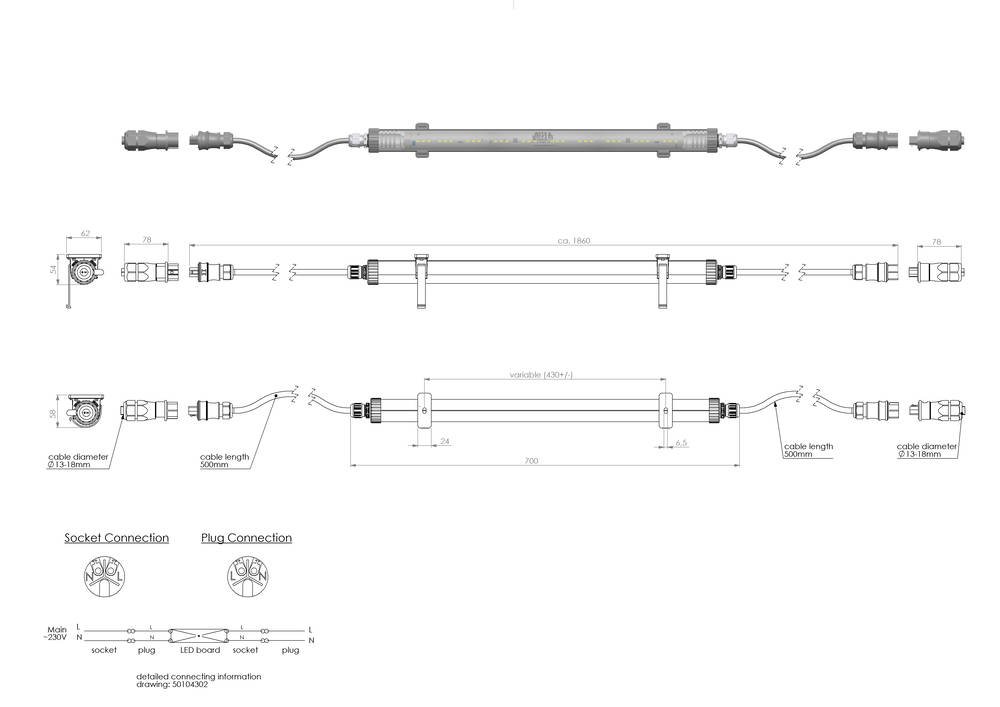

External dimensions LxWxH :	699x62x54mm
Approval :	DNV-GL, RMRS
Weight :	0,4 kg
