WISKA 10103372 ESKE/1-i 16

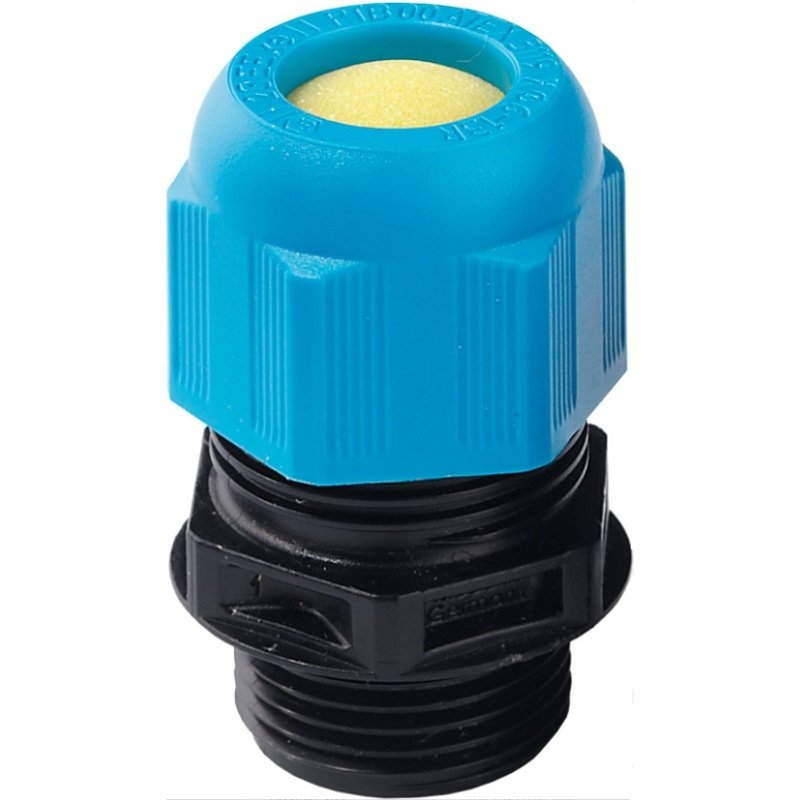

Image is for illustrative purposes only

WISKA 10103372 ESKE/1-i 16 Ex-cable gland, polyamide with short thread, RAL 9005/5012, M16

Part: 10103372
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Material cable gland :Polyamide
Material sealing gasket :EPDM
Temp. range min :-40 °C
Temp. range max :75 °C
Protection class :IP66 / IP68 (5 bar 30 min)
Type of protection :Ex eb, Ex tb
Ex-Certificate :ATEX, IECEx
Glow wire test :750 °C
Thread type :M
Ø Connection thread D :16
Lead :1,5
Length screw-in thread L :9 mm
Ø cable diameter min :4,5 mm
Ø cable diameter max :9 mm
Key width SW :20 mm
Collar diameter (E) :22 mm
Total length TL :31 mm - 37 mm
Install. torques fitting :1,8 N/m
Install. torques cap nut :1,3 N/m
Equipment :Incl. connection thread gasket
Product Color :RAL 5012 / RAL 9005
