WISKA 10102646 EMSKV-L 16 EMV-S

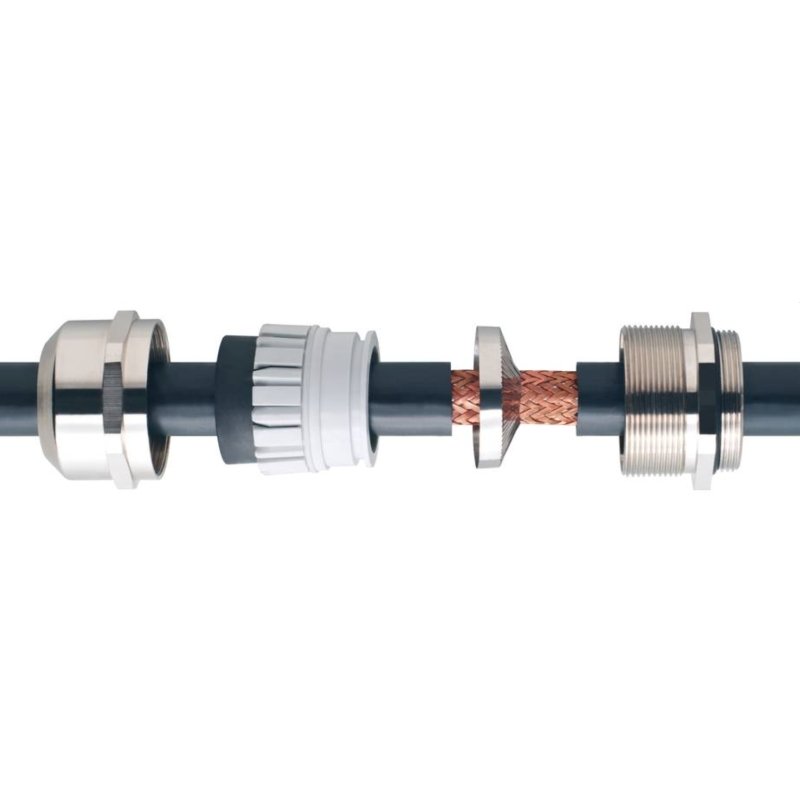

Image is for illustrative purposes only

WISKA 10102646 EMSKV-L 16 EMV-S EMC-cable gland, brass with long thread M16

Part: 10102646
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Material cable gland :Brass nickel-plated
Material sealing gasket :EPDM
Material clamping cage :Polyamide
Material earthing insert :Stainless steel 1.4310
Temp. range min :-40 °C
Temp. range max :100 °C
Protection class :IP68 (5 bar 30 min), IP69
Thread type :M
Ø Connection thread D :16
Lead :1,5
Length screw-in thread L :12 mm
Ø cable diameter min :4,5 mm
Ø cable diameter max :10 mm
Cable Ø shield external :3 mm - 9 mm
Key width SW :20 mm
Collar diameter (E) :22 mm
Total length TL :33 mm - 41 mm
Type of cable anchorage :A
Install. torques cap nut :4 N/m
Install. torques fitting :4 N/m
Impact category :6
Surface :Nickel-plated
