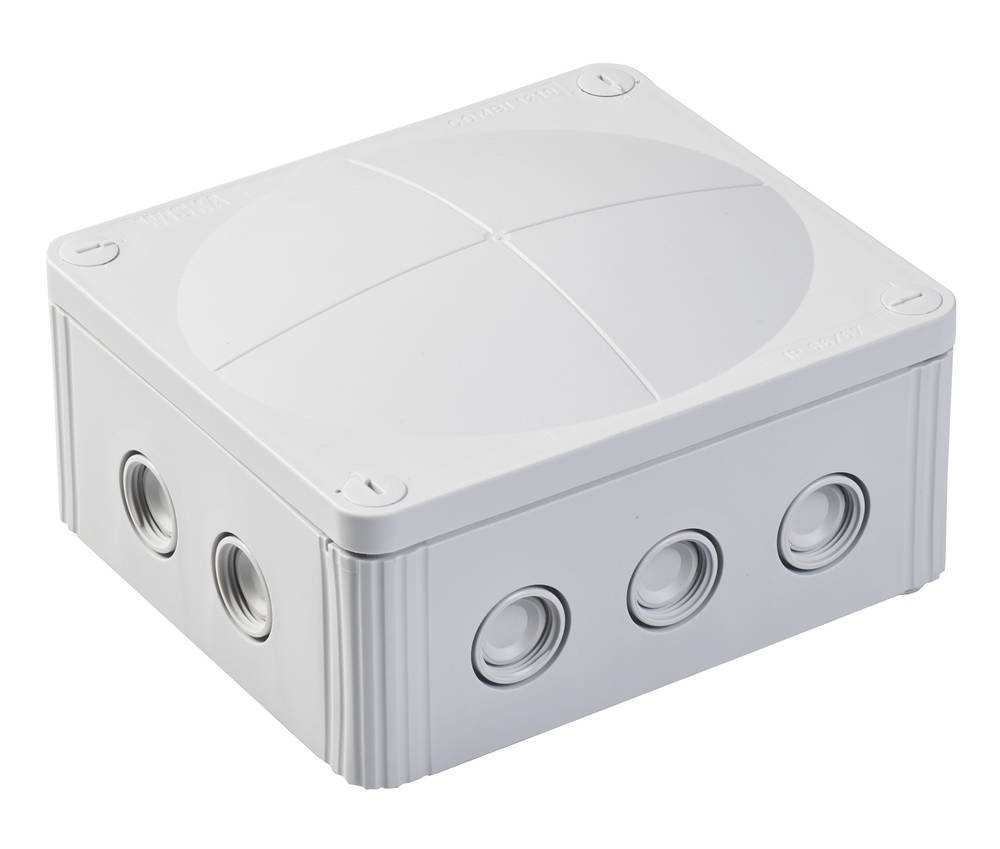

WISKA 10101462 COMBI 1210/5 LG junction box, 160 x 140 x 81mm, grey, plastic
Image is for illustrative purposes only
WISKA 10101462 COMBI 1210/5 LG junction box, 160 x 140 x 81mm, grey, plastic
Dimensions
Dimensions

WISKA 10101462 COMBI 1210/5 LG junction box, 160 x 140 x 81mm, grey, plastic, with terminal block

Part: 10101462
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 10 M20 threaded membrane entries and M25 knockouts
  • 4 membrane cable entries through rear
  • 4 captive cover screws
  • Inclusive terminal block 5-poles, 10mm²

Protection class :IP66 / IP67
Glow wire test :750 °C
Voltage :690 V
Rated current / A (Terminal) :57 A
Rated cross section :10 mm²
Terminals/poles :5-pole, 10,0 mm²
Fixing :4 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :12 mm
External dimensions LxWxH :160 x 140 x 81mm
Product Color :RAL 7035
WISKA-Order no. :10101462
Type :COMBI 1210/5 LG
