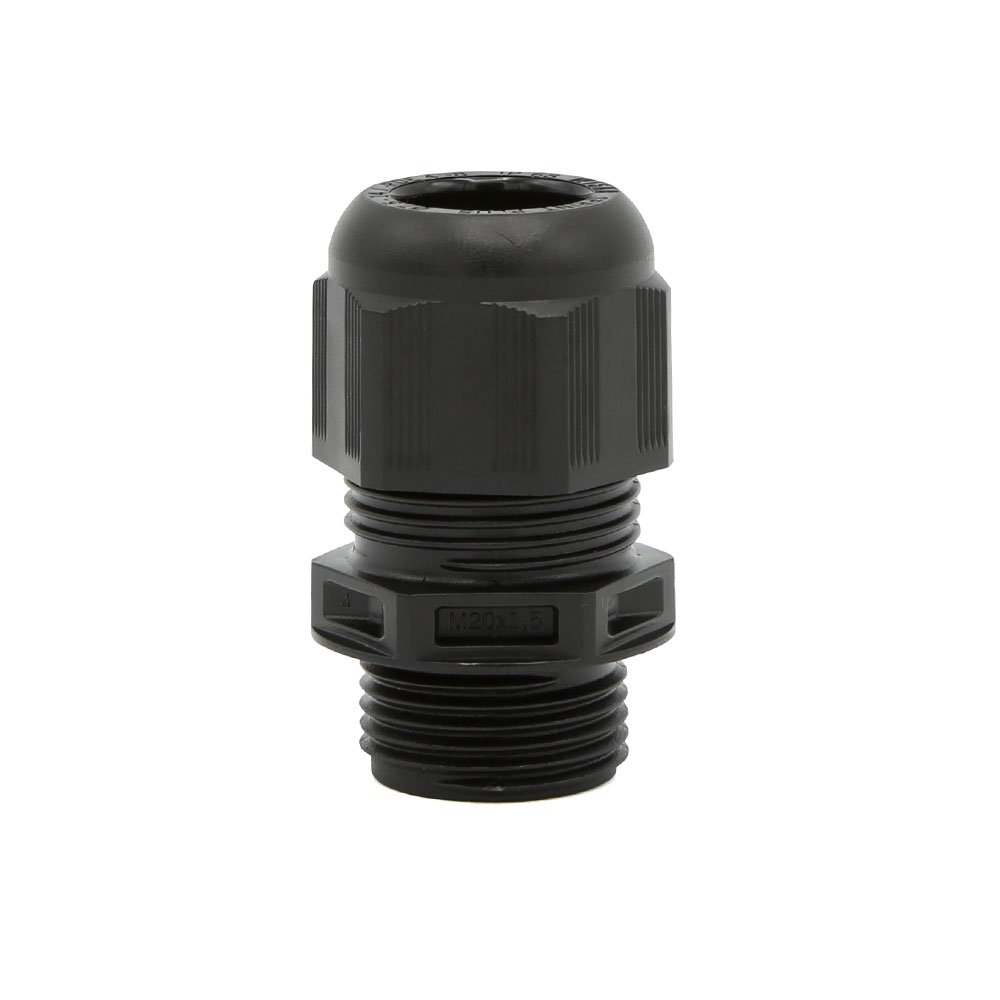

WISKA 10100825 ESKV 20 PLUS BK SPRINT M20+ Polyamide Cable Gland Black

Part: 10100825
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

SPRINTŪ cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut. The SPRINTŪ system offers a comprehensive selection of accessories for special applications.

  • Protection Rating - IP68 (5 bar 30 mins) / IP69
  • M20+
  • Material - 100% polyamide
  • Halogen Free / UV Resistant
  • Clamping range: 4 - 14+mm
  • Vibration Proof
  • No Gasket
  • Colour: Black
