WISKA 10100699 PMSKV 16-20 EMV-Z

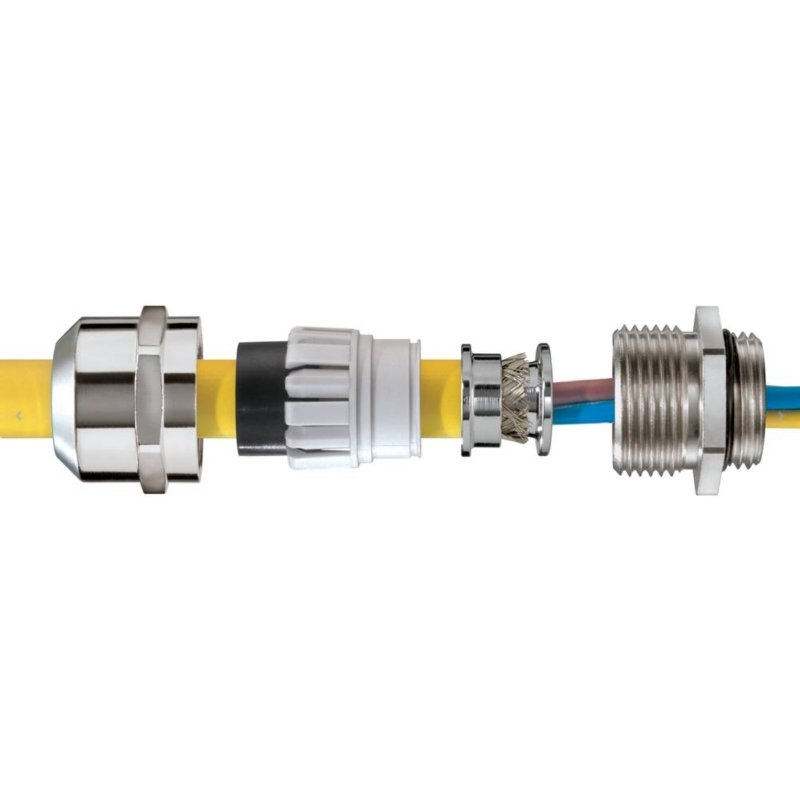

Image is for illustrative purposes only

WISKA 10100699 PMSKV 16-20 EMV-Z EMC-cable gland, brass PG16

Part: 10100699
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Material cable gland :Brass nickel-plated
Material sealing gasket :EPDM
Material clamping cage :Polyamide
Material earthing insert :Brass chromium-plated
Temp. range min :-40 °C
Temp. range max :100 °C
Protection class :IP69, IP68 (5 bar 30 min)
Thread type :PG
Ø Connection thread D :16
Length screw-in thread L :6 mm
Ø cable diameter min :6 mm
Ø cable diameter max :13 mm
Ø cable below cable shield max :9,5 mm
Key width SW :29 mm
Collar diameter (E) :32 mm
Total length TL :28 mm - 36 mm
Type of cable anchorage :A
Install. torques cap nut :8 N/m
Install. torques fitting :8 N/m
Surface :Nickel-plated
