WISKA 10066502 ESKV-L 20

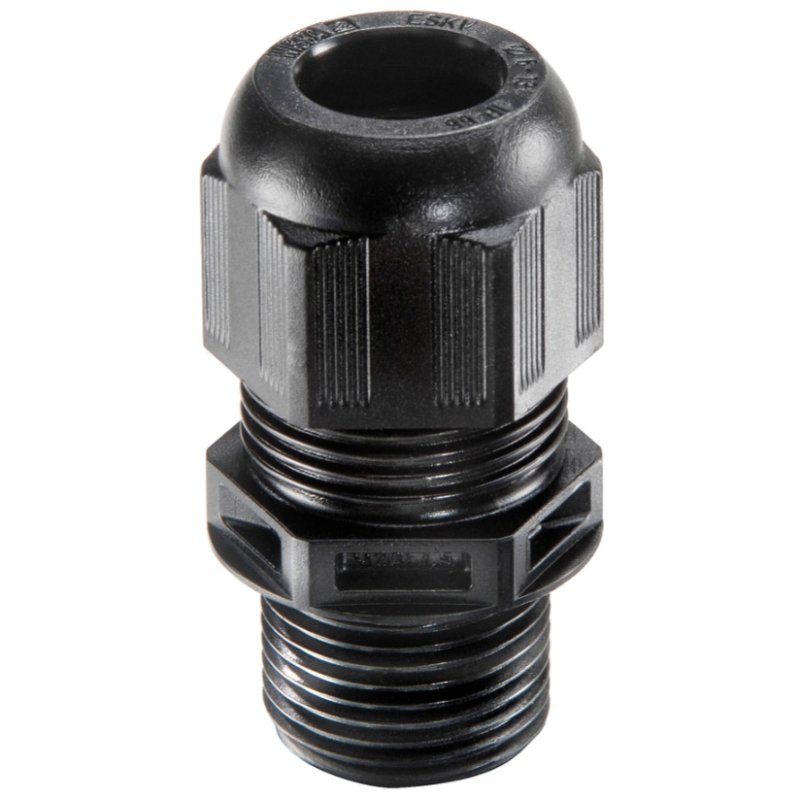

Image is for illustrative purposes only

WISKA 10066502 ESKV-L 20 BK SPRINT M20 Polyamide Cable Gland Long Thread Black

Part: 10066502
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

SPRINTŪ cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing in sizes M12 to M32 by injection-moulded sealing lip, sizes M40 to M63 with connection thread sealing ring. All seals are made of silicone and are characterised by excellent resistance to water, ozone, UV radiation, chemicals and low temperatures. The self-locking cap nut thread offers optimum vibration protection and protection against overtightening of the cap nut. The SPRINTŪ system offers an extensive selection of accessories for special applications.

  • Installation indoors & outdoors
  • Gland Polyamide, Gasket EPDM
  • Cable entry
  • Long thread
  • self-locking cap nut
  • Easy to install
  • Temp Range -40 °C - 100 °C
  • Vibration protection
  • Black
  • IP69 / IP68 (5 bar 30 min)

Colour :Black
Model :Straight
Halogen free :Yes
Shock resistant :Yes
RAL number :9005
Surface protection :Untreated
Wrench width :24mm
Thread length :15mm
Bend radius protection/trumpet flare :No
With strain relief :Yes
Screened :No
EMC-version :No
Glass fibre reinforced :No
Type of sealing :Sealing ring
Material qualifier :Polyamide (PA)
Working temperature :-40 to 100°C
Thread type :Metric
Material :Plastic
Pitch thread :1.5mm
Explosion-tested version :No
Flat cable sealing :No
Multi cable sealing :No
Locknut included :No
Hexagon angular dimension :27mm
Separable (split) screw gland :No
Suitable for cable outer diameter :6 to 13mm
Degree of protection (IP rating) :IP68
For ATEX classification, Ex-zone gas :None
Nominal thread size metric/PG :20
For ATEX classification, Ex-zone dust :None
For armoured cable :No
Snapping in opening :No
