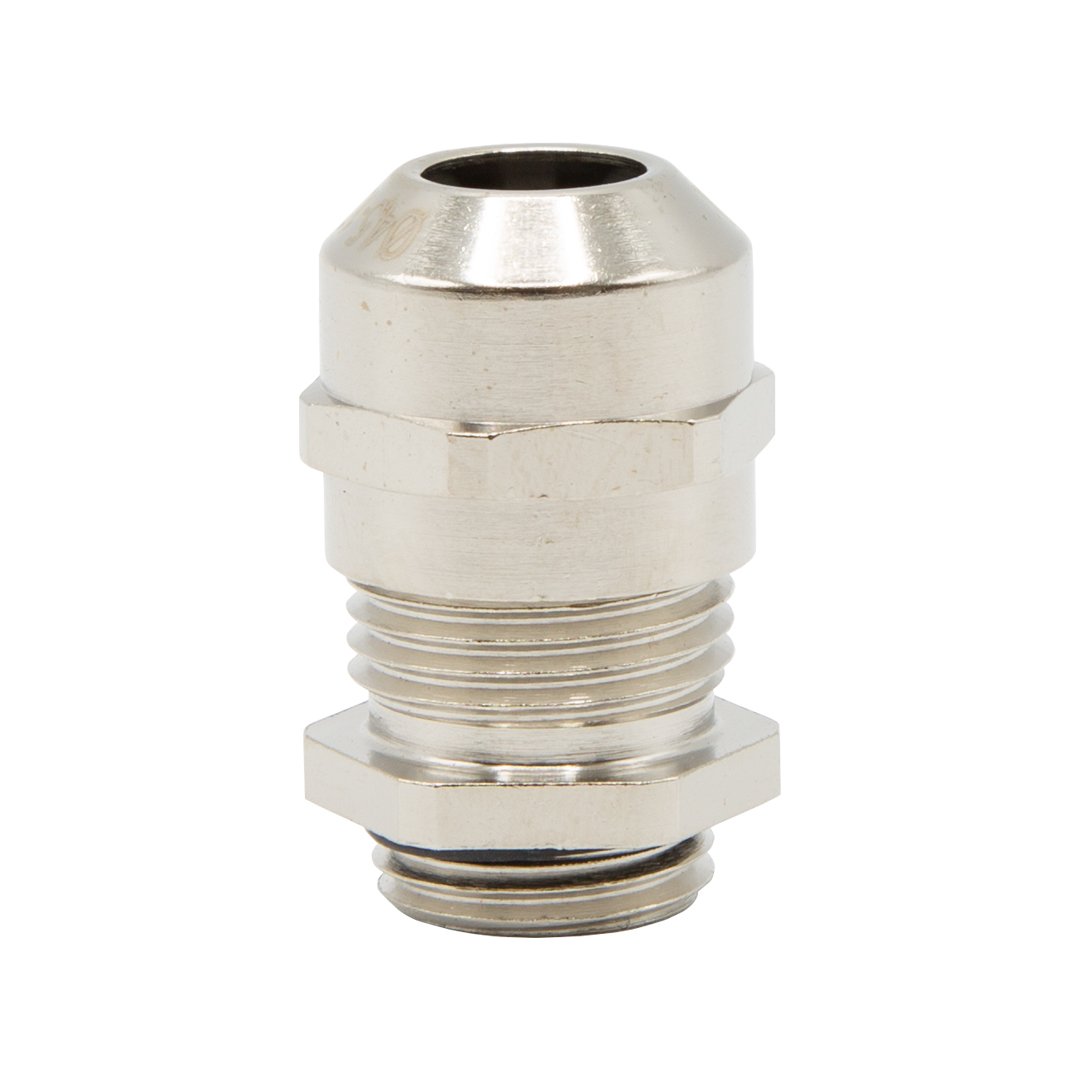

WISKA 10065017 EMSKV 16 EMV-Z SPRINT M16 Brass Nickel Plated Cable Gland Complete With Earthing Cone Suitable for SY Cable

Part: 10065017
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

SPRINTŪ EMC cable gland made of brass for indoor and outdoor use. Optimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The SPRINTŪ system offers an extensive selection of accessories for special applications. For EMC-compliant installation, the cable gland has been supplemented with an EMC insert.

  • Protection Rating - IP68 (5 bar 30 mins) / IP69
  • M16
  • Brass nickel-plated gland / polyamide clamping cage / gasket EPDM / earthing cones Brass chromium-plated
  • Halogen Free / UV Resistant
  • Clamping Range: 4.5 - 10mm
  • Vibration Proof

Model :Straight
Halogen free :Yes
Shock resistant :Yes
RAL number :0
Surface protection :Nickel-plated
Wrench width :20mm
Thread length :5mm
Bend radius protection/trumpet flare :No
With strain relief :Yes
Screened :Yes
EMC-version :Yes
Glass fibre reinforced :No
Type of sealing :Sealing ring
Material qualifier :Brass
Working temperature :-40 to 100°C
Thread type :Metric
Material :Metal
Pitch thread :1.5mm
Explosion-tested version :No
Flat cable sealing :No
Multi cable sealing :No
Locknut included :No
Hexagon angular dimension :22mm
Separable (split) screw gland :No
Suitable for cable outer diameter :4.5 to 10mm
Degree of protection (IP rating) :IP68
For ATEX classification, Ex-zone gas :None
Nominal thread size metric/PG :16
For ATEX classification, Ex-zone dust :None
For armoured cable :No
Snapping in opening :No
