WISKA 10065009 EMSKV-L 16
Image is for illustrative purposes only

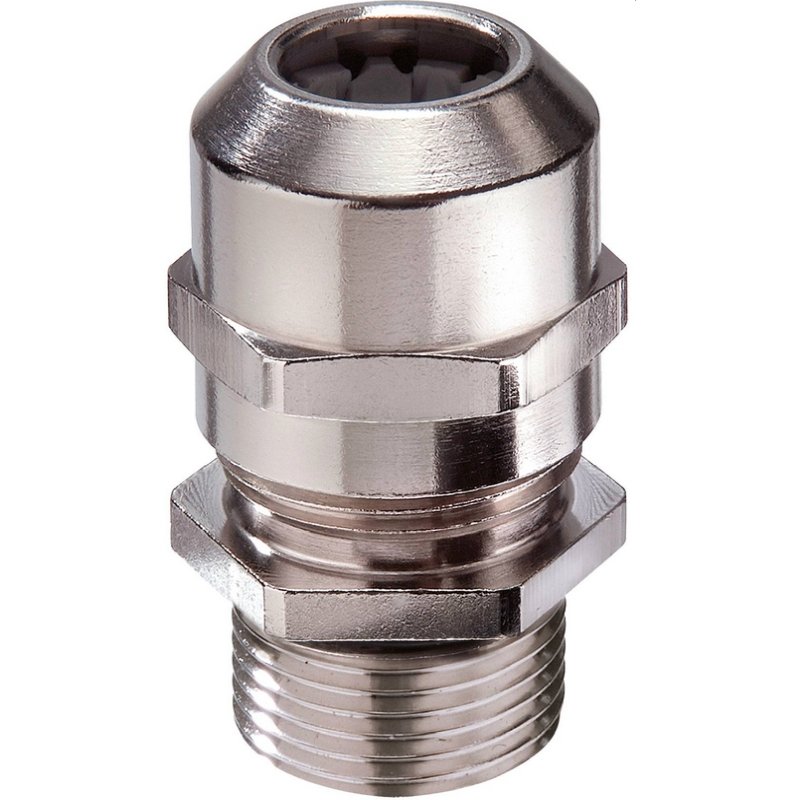

WISKA 10065009 EMSKV-L 16 Cable gland, brass with long thread M16

Part: 10065009
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Material cable gland :Brass nickel-plated
Material clamping cage :Polyamide
Material sealing gasket :EPDM
Temp. range min :-40 °C
Temp. range max :100 °C
Protection class :IP69, IP68 (5 bar 30 min)
Thread type :M
Ø Connection thread D :16
Lead :1,5
Length screw-in thread L :12 mm
Ø cable diameter min :4,5 mm
Ø cable diameter max :10 mm
Key width SW :20 mm
Collar diameter (E) :22 mm
Total length TL :33 mm - 41 mm
Type of cable anchorage :A
Install. torques fitting :4 N/m
Install. torques cap nut :4 N/m
Impact category :6
Surface :Nickel-plated

Make an enquiry

...
