WISKA 10065002

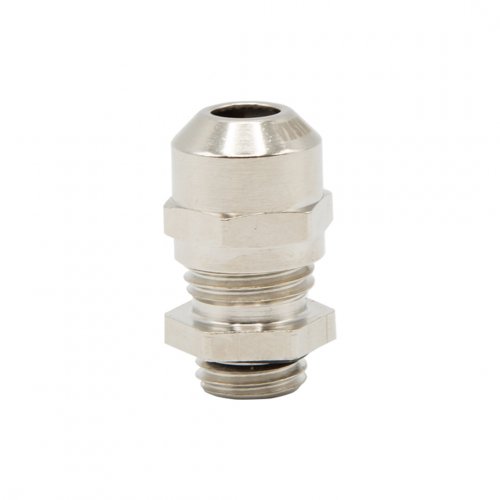

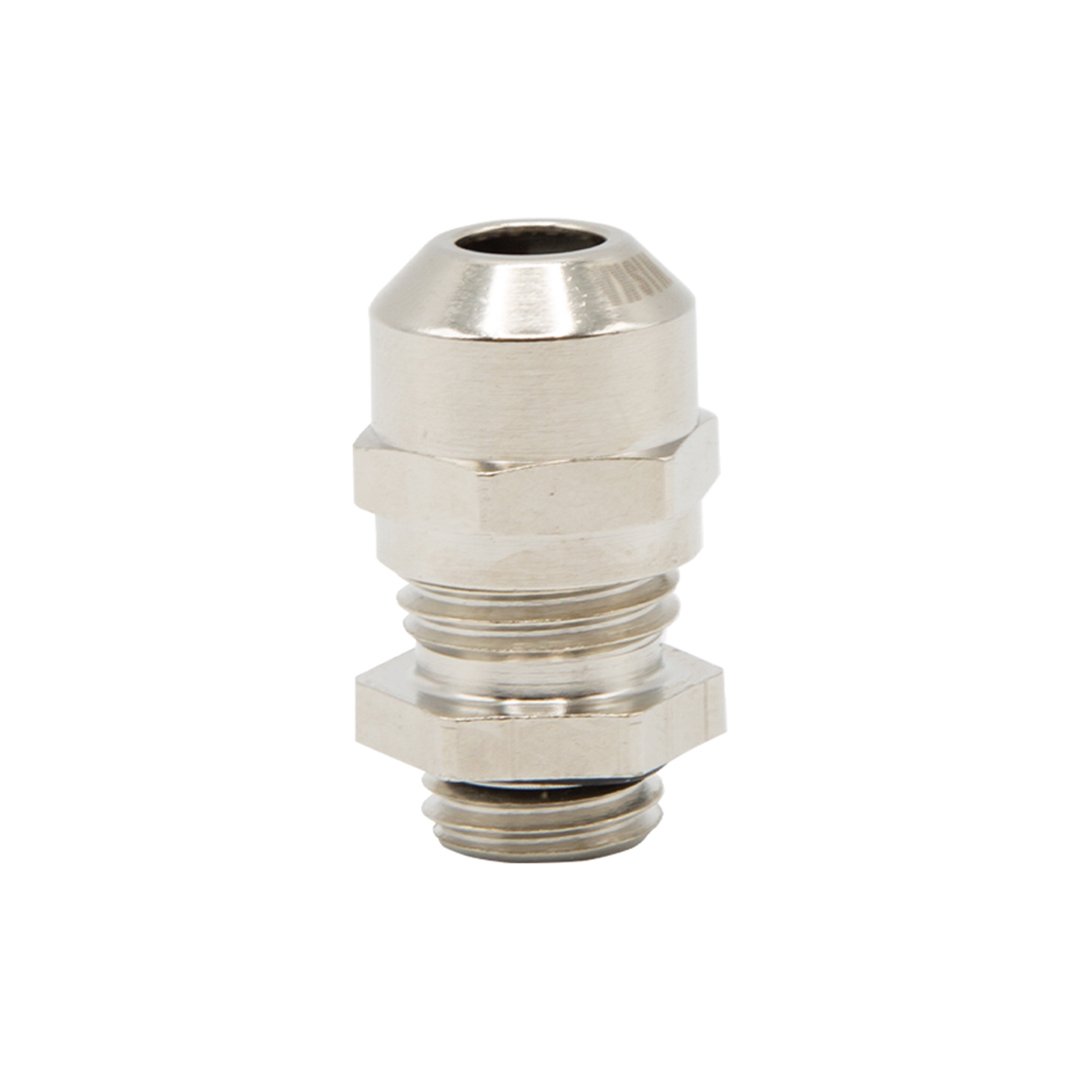

Image is for illustrative purposes only

WISKA 10065002 EMSKV 20 SPRINT M20 Brass Nickel Plated Cable Gland

Part: 10065002
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

SPRINTŪ cable gland made of brass for indoor and outdoor use. Optimum sealing and strain relief due to special WISKA lamella system with enlarged contact surfaces and large sealing area. Sealing to the housing by mounted O-ring. All seals are made of EPDM and are characterised by excellent resistance to water, ozone, UV radiation and chemicals. The SPRINTŪ system offers an extensive selection of accessories for special applications.

  • Protection Rating - IP68 (5 bar 30 mins) / IP69
  • M20
  • Brass nickel-plated gland / polyamide clamping cage / gasket EPDM
  • Halogen Free / UV Resistant
  • Clamping Range: 6 - 13mm

Model :Straight
Halogen free :Yes
Shock resistant :Yes
RAL number :0
Surface protection :Nickel-plated
Wrench width :24mm
Thread length :6mm
Bend radius protection/trumpet flare :No
With strain relief :Yes
Screened :No
EMC-version :No
Glass fibre reinforced :No
Type of sealing :Sealing ring
Material qualifier :Brass
Working temperature :-40 to 100°C
Thread type :Metric
Material :Metal
Pitch thread :1.5mm
Explosion-tested version :No
Flat cable sealing :No
Multi cable sealing :No
Locknut included :No
Hexagon angular dimension :27mm
Separable (split) screw gland :No
Suitable for cable outer diameter :6 to 13mm
Degree of protection (IP rating) :IP68
For ATEX classification, Ex-zone gas :None
Nominal thread size metric/PG :20
For ATEX classification, Ex-zone dust :None
For armoured cable :No
Snapping in opening :No
