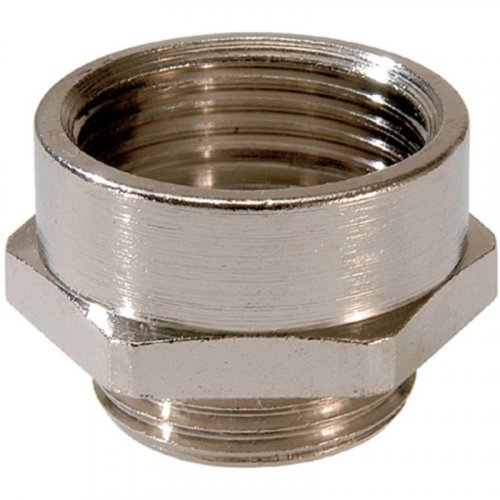

WISKA 10063892 AMPM 16/25
Image is for illustrative purposes only
WISKA 10063892 AMPM 16/25

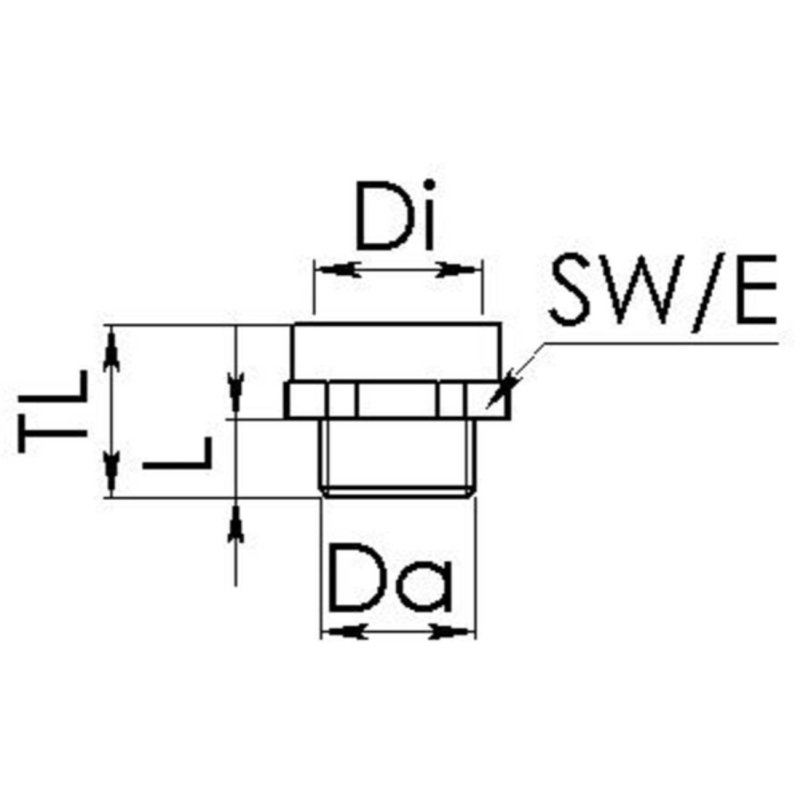

WISKA AMPM dimensions

WISKA 10063892 AMPM 16/25 Adaptor, brass PG16 to M25

Part: 10063892
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Material :Brass nickel-plated
Temp. range min :-200 °C
Temp. range max :250 °C
Thread type outer :PG
Ø outer thread :16
Length screw-in thread L :6,5 mm
Thread type inner :M
Ø inner thread :25
Lead inner :1,5
Length internal thread :9,5 mm
Key width SW :30 mm
Collar diameter (E) :34 mm
Total length TL :18,5 mm
Surface :Nickel-plated
