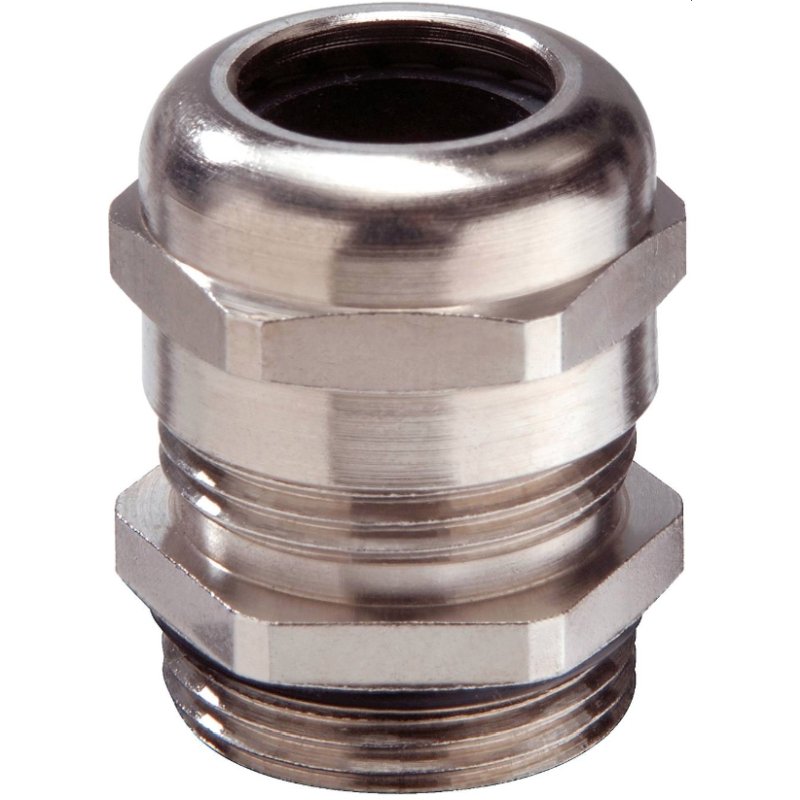

Material cable gland : | Brass nickel-plated |
Material clamping cage : | Polyamide |
Material sealing gasket : | TPV |
Temp. range min : | -40 °C |
Temp. range max : | 100 °C |
Protection class : | IP68 (5 bar 30 min), IP69 |
Thread type : | PG |
Ø Connection thread D : | 16 |
Length screw-in thread L : | 6,5 mm |
Ø cable diameter min : | 10 mm |
Ø cable diameter max : | 14 mm |
Key width SW : | 24 mm |
Collar diameter (E) : | 27 mm |
Total length TL : | 26 mm - 30 mm |
Install. torques fitting : | 25 N/m |
Install. torques cap nut : | 13 N/m |
Impact category : | 6 |
Surface : | Nickel-plated |
