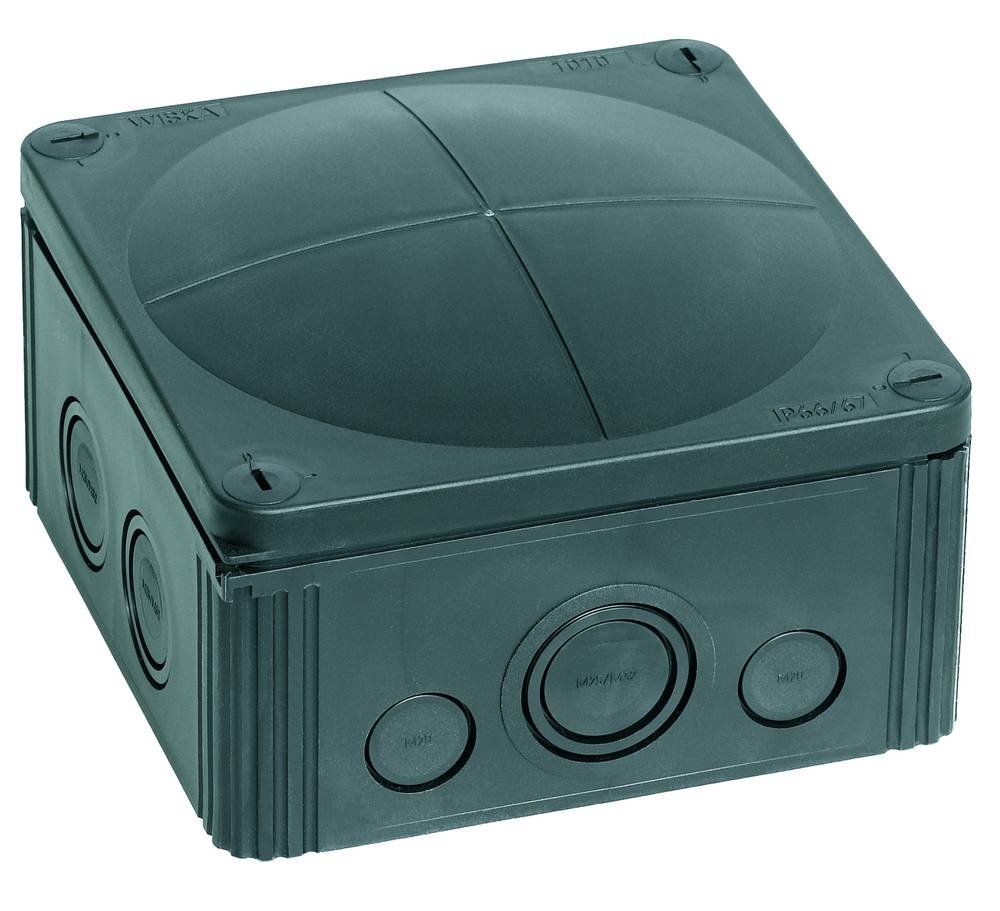

WISKA 10062215 COMBI 1010/5 BK junction box, 140 x 140 x 82mm , black, plastic, wtih terminal block
Image is for illustrative purposes only
WISKA 10062215 COMBI 1010/5 BK junction box, 140 x 140 x 82mm , black, plastic, wtih terminal block
WISKA 10062215 COMBI 1010/5 BK junction box, 140 x 140 x 82mm , black, plastic, wtih terminal block

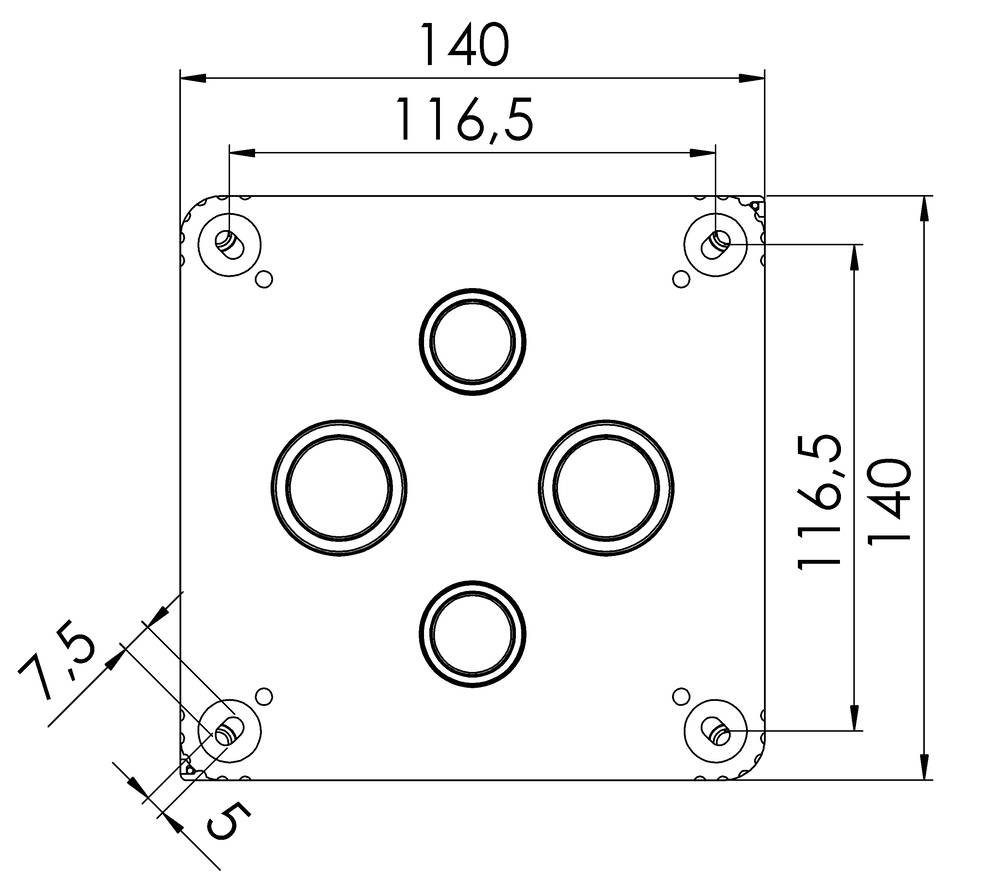

Dimensions

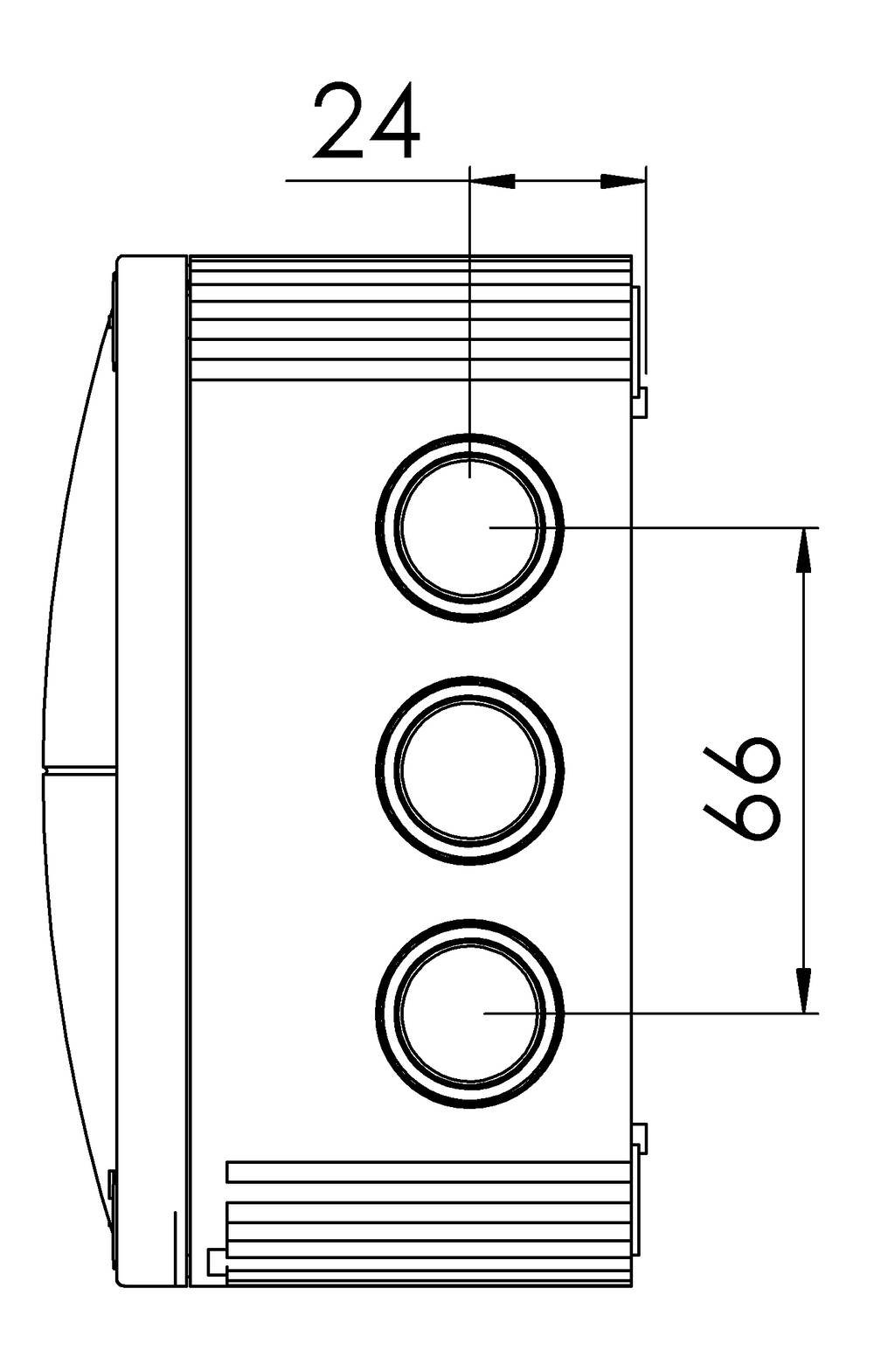

Dimensions

WISKA 10062215 COMBI 1010/5 BK junction box, 140 x 140 x 82mm , black, plastic, wtih terminal block

Part: 10062215
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M25
  • 4 knockouts in the bottom 2x M25/M32; 2x M20/M25
  • 4 captive cover screws
  • Including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32

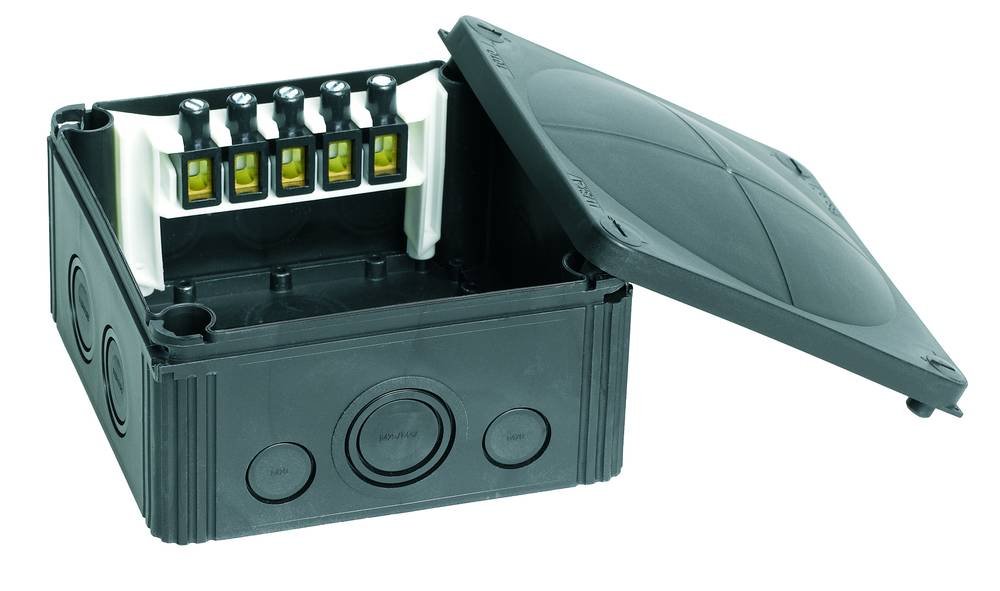

  • Including terminal block 5-poles, 10mm²

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66 / IP67
Glow wire test :750 °C
Voltage :690 V
Rated current / A (Terminal) :57 A
Rated cross section :10 mm²
Terminals/poles :5-pole, 10,0 mm²
Fixing :4 internal openings
Ø cable diameter min :6 mm
Ø cable diameter max :21 mm
External dimensions LxWxH :140 x 140 x 82mm
Product Color :RAL 9001
WISKA-Order no. :10062215
Type :COMBI 1010/5 BK
