WISKA 10061779 COMBI 607/5/2xKRM25/20 BK 110 x 110 x 66mm, black, plastic
Image is for illustrative purposes only
WISKA 10061779 COMBI 607/5/2xKRM25/20 BK 110 x 110 x 66mm, black, plastic

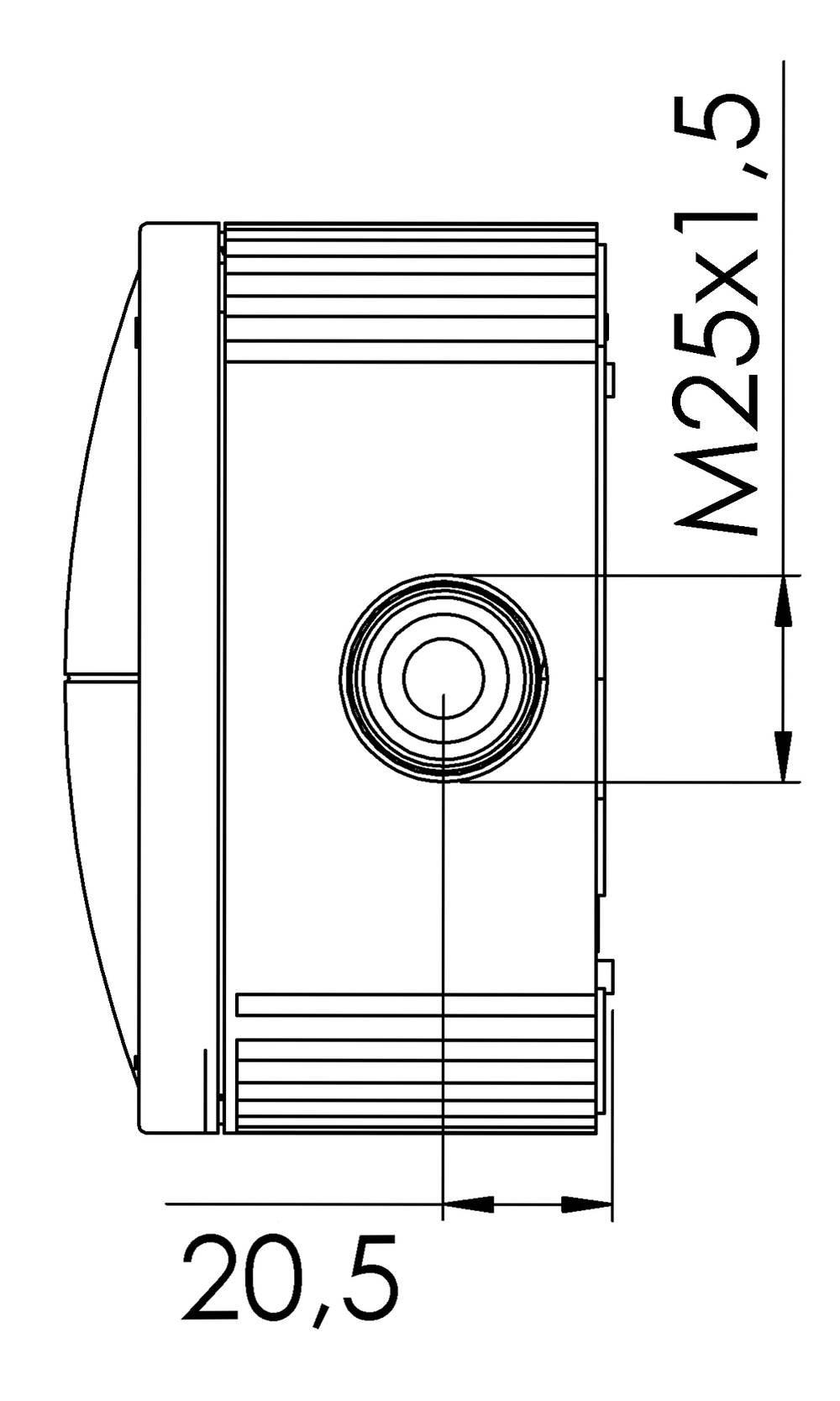

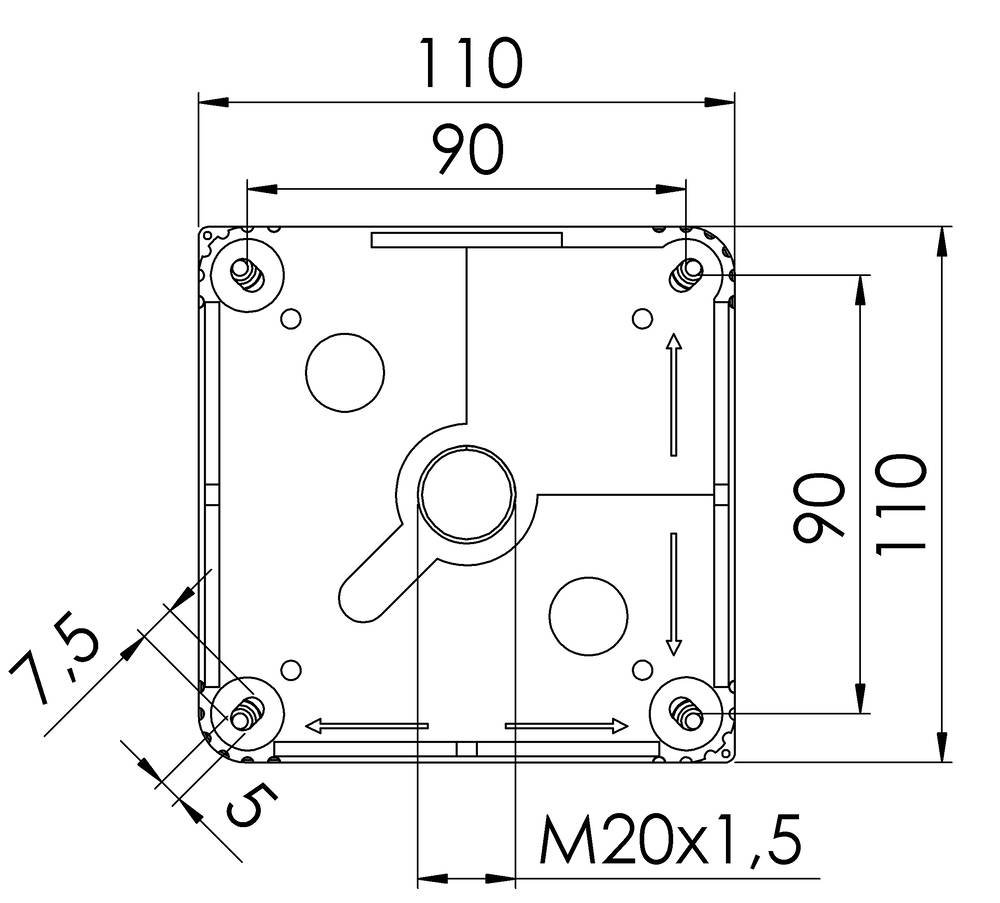

Dimensions
Dimensions

WISKA 10061779 COMBI 607/5/2xKRM25/20 BK 110 x 110 x 66mm, black, plastic

Part: 10061779
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 4 internal openings outside of the sealing area
  • 7 elastic, self-sealing puncture-membranes for cable entry on the side and 3 on the bottom
  • 7 integrated M25 thread for mounting without lock nut
  • 4 captive cover screws
  • Terminal block 5-pole, 6mm²
  • 2 reduction adaptors KRM 25/20

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66 / IP67
Glow wire test :750 °C
Voltage :690 V
Rated current / A (Terminal) :41 A
Rated cross section :5 x 6mm²
Terminals/poles :6 mm²
Fixing :4 internal openings
Ø cable diameter min :5,2 mm
Ø cable diameter max :17 mm
External dimensions LxWxH :110 x 110 x 66 mm
Product Color :RAL 9005
