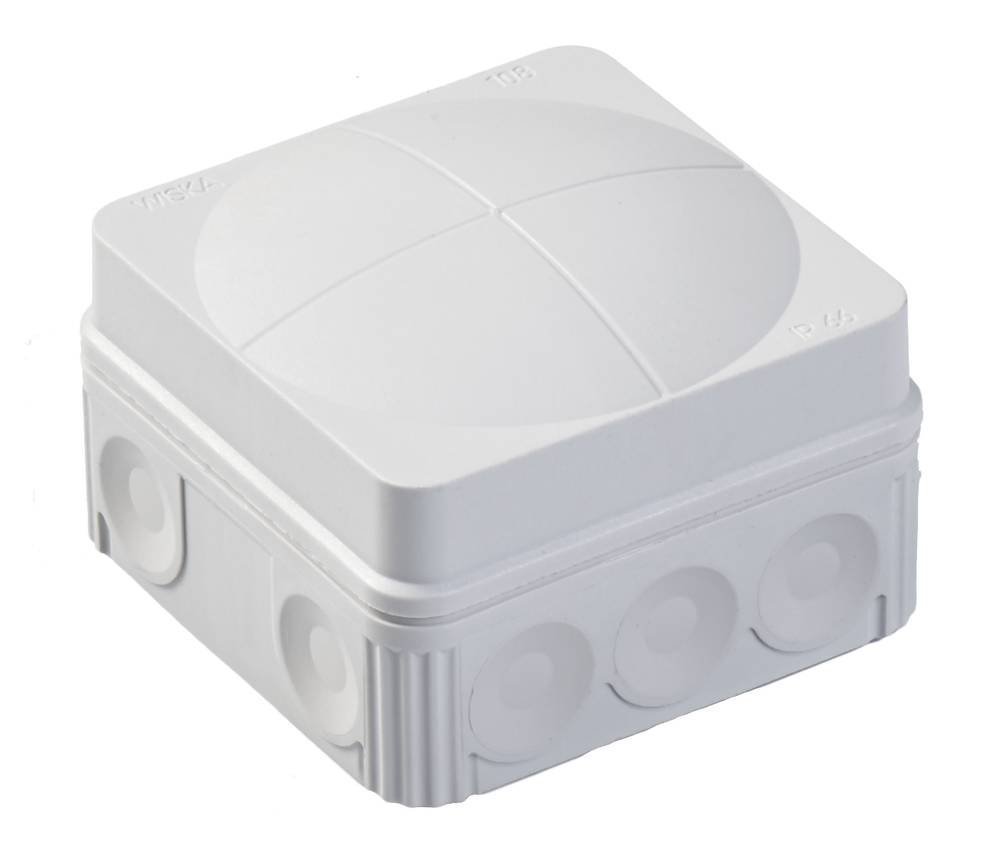

WISKA 10060703 COMBI 1010/5 LG junction box, 140 x 140 x 82mm , grey, plastic, wtih terminal block

Name: WISKA 10060703 COMBI 1010/5 LG junction box, 140 x 140 x 82mm , grey, plastic, wtih terminal block
Brand: WISKA
SKU: 10743
Price: 99999 GBP
Availability: InStock

Part: 10060703

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

10 knockouts side 5x M25/M32; 2x M20; 3x M20/M25
4 knockouts in the bottom 2x M25/M32; 2x M20/M25
4 captive cover screws
Including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
Including terminal block 5-poles, 10mm²

Material :	Polypropylene
Material sealing gasket :	TPE
Temp. range min :	-30 °C
Temp. range max :	100 °C
Temperatures during install. :	-5 °C - 60 °C
Protection class :	IP66 / IP67
Glow wire test :	750 °C
Voltage :	690 V
Rated current / A (Terminal) :	57 A
Rated cross section :	10 mm²
Terminals/poles :	5-pole, 10,0 mm²
Fixing :	4 internal openings
Ø cable diameter min :	6 mm
Ø cable diameter max :	21 mm
External dimensions LxWxH :	140 x 140 x 82mm
Product Color :	RAL 7035
WISKA-Order no. :	10060703
Type :	COMBI 1010/5 LG
