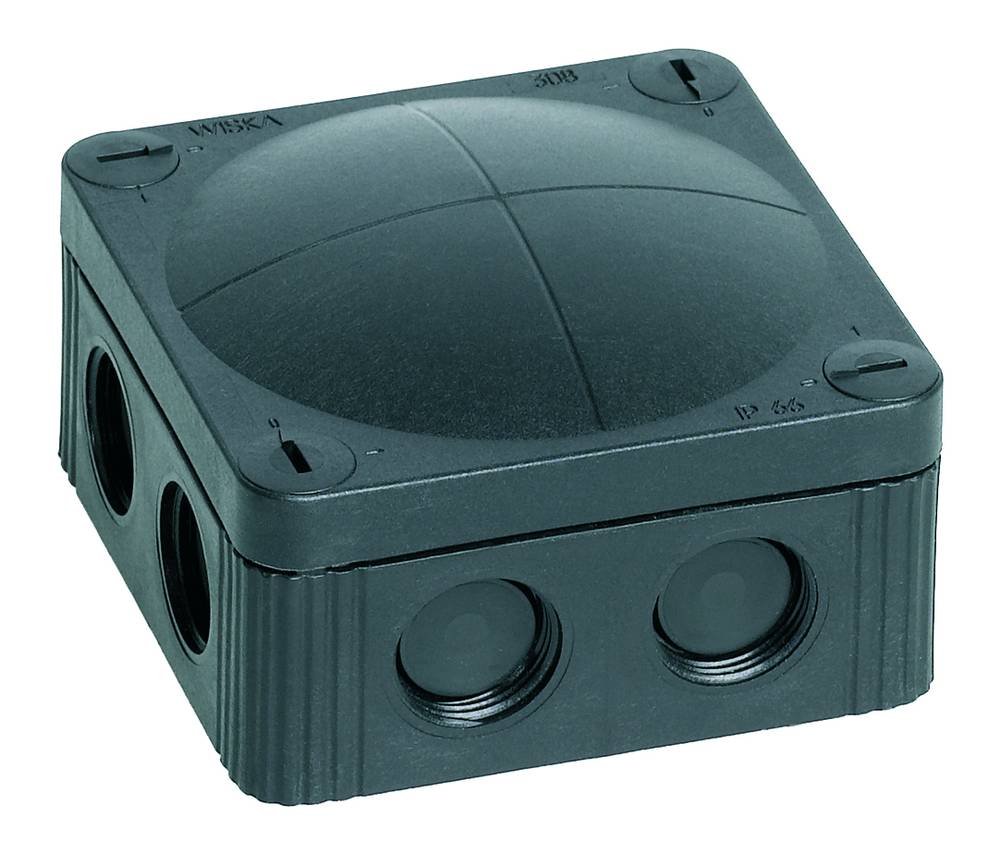

WISKA 10060581 COMBI 308 BK junction box, 85 x 85 x 51mm, black, plastic

Name: WISKA 10060581 COMBI 308 BK junction box, 85 x 85 x 51mm, black, plastic
Brand: WISKA
SKU: 10716
Price: 99999 GBP
Availability: InStock

Part: 10060581

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Material :	Polypropylene
Material sealing gasket :	TPE
Temp. range min :	-30 °C
Temp. range max :	100 °C
Temperatures during install. :	-5 °C - 60 °C
Protection class :	IP66
Glow wire test :	750 °C
Voltage :	400 V
Rated cross section :	4mm²
Fixing :	4 internal openings
Ø cable diameter min :	3 mm
Ø cable diameter max :	12 mm

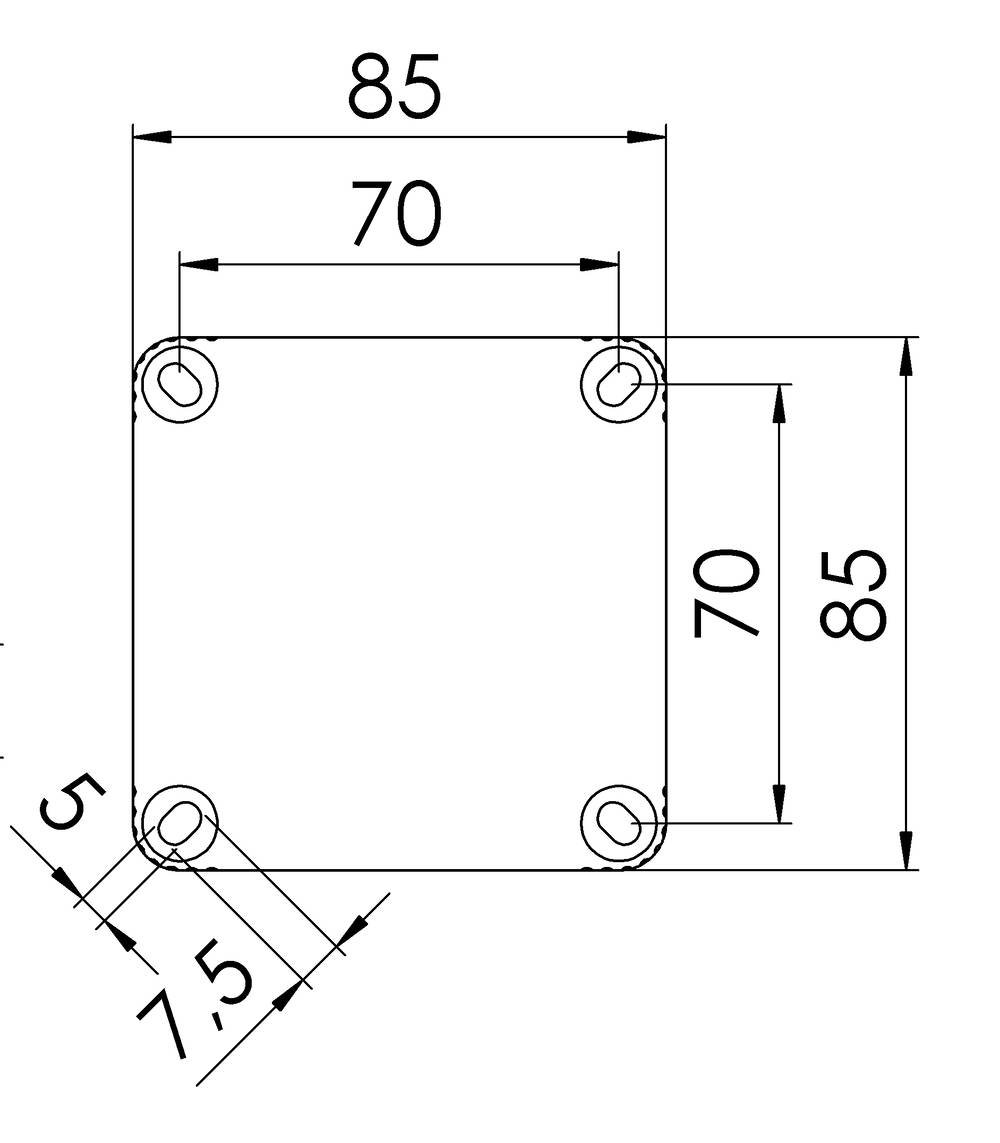

External dimensions LxWxH :	76 x 76 x 51mm

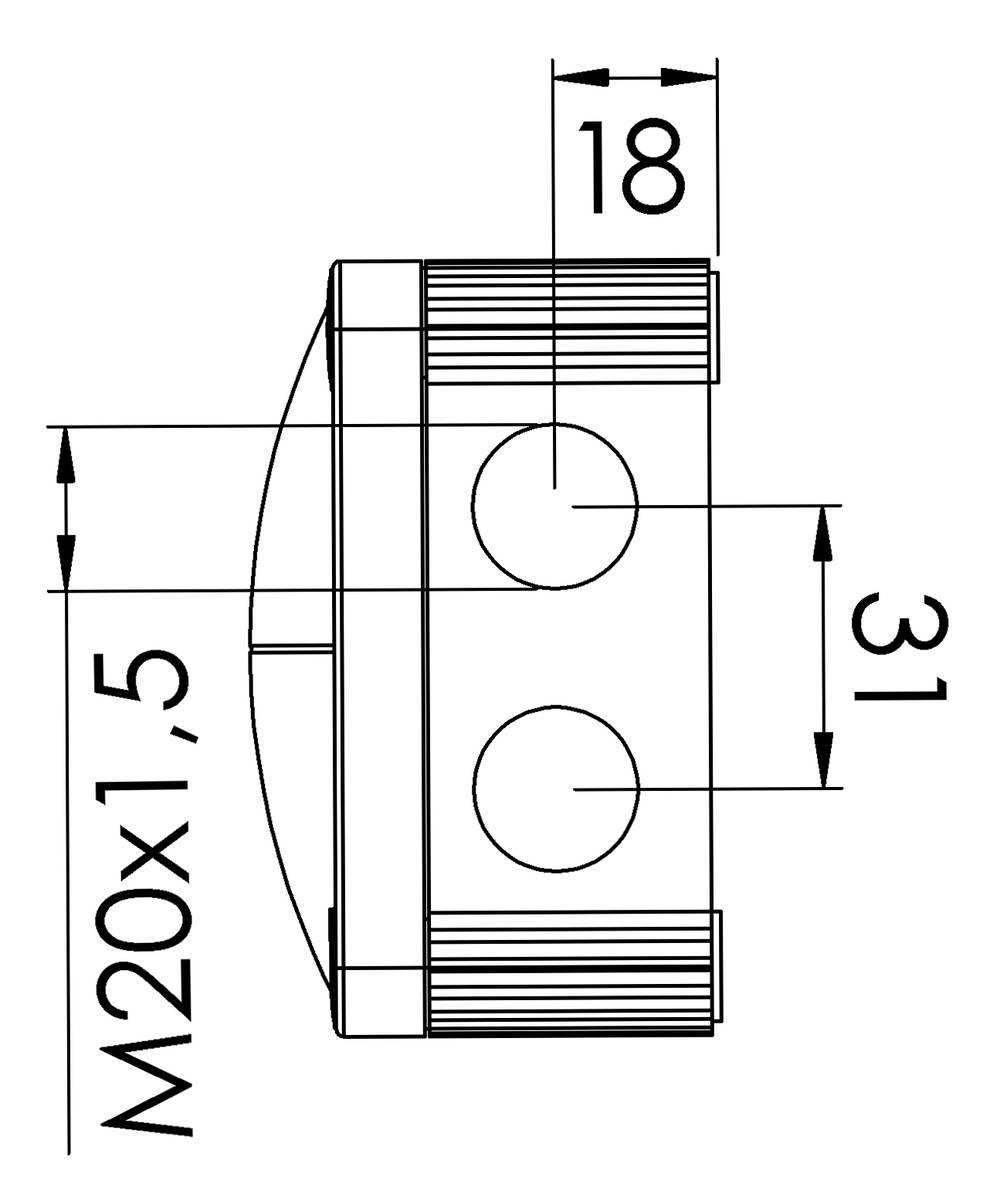

Type of cable gland :	M 20 x 1,5
Product Color :	RAL 7035
WISKA-Order no. :	10060581
Type :	COMBI 108 LG
