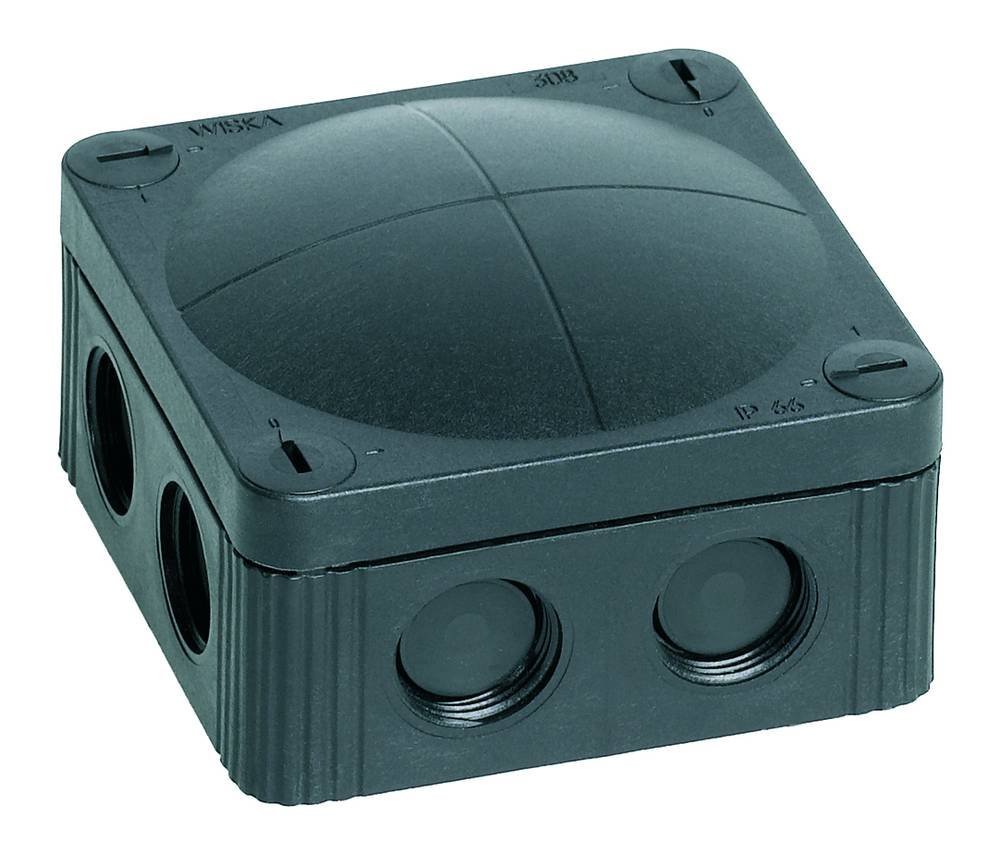

WISKA 10060580 COMBI 308/5 BK junction box, 85 x 85 x 51mm, black, plastic, with terminal block
Image is for illustrative purposes only
WISKA 10060580 COMBI 308/5 BK junction box, 85 x 85 x 51mm, black, plastic, with terminal block
WISKA 10060580 COMBI 308/5 BK junction box, 85 x 85 x 51mm, black, plastic, with terminal block
Dimensions
Dimensions

WISKA 10060580 COMBI 308/5 BK junction box, 85 x 85 x 51mm, black, plastic, with terminal block

Part: 10060580
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads
  • 8 M20 threaded membrane entries
  • 4 captive cover screws
  • Including mounting clip
  • Including terminal block 5-poles, 4mm²

Material :Polypropylene
Material sealing gasket :TPE
Temp. range min :-30 °C
Temp. range max :100 °C
Temperatures during install. :-5 °C - 60 °C
Protection class :IP66
Glow wire test :750 °C
Voltage :400 V
Rated cross section :4mm²
Fixing :4 internal openings
Ø cable diameter min :3 mm
Ø cable diameter max :12 mm
External dimensions LxWxH :76 x 76 x 51mm
Type of cable gland :M 20 x 1,5
Product Color :RAL 7035
WISKA-Order no. :10060580
Type :COMBI 308/5 BK
