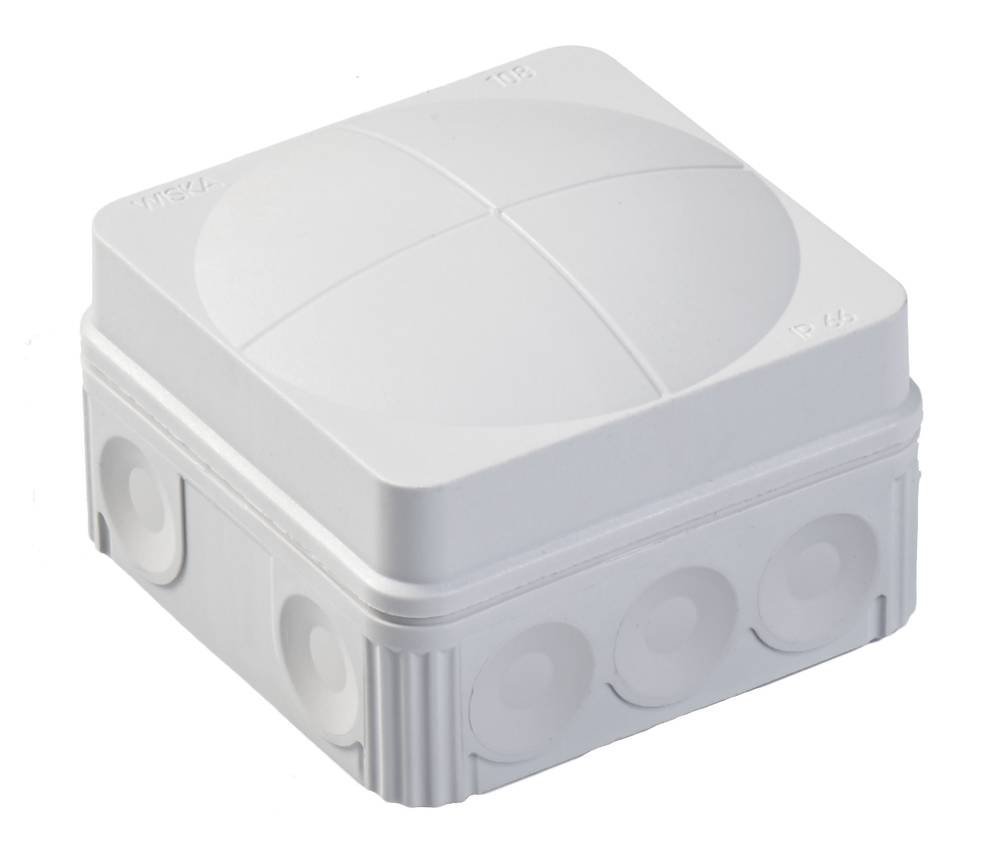

WISKA 10060523 COMBI 108/5 LG junction box, 76 x 76 x 51mm, grey, plastic, wtih terminal block

Name: WISKA 10060523 COMBI 108/5 LG junction box, 76 x 76 x 51mm, grey, plastic, wtih terminal block
Brand: WISKA
SKU: 10742
Price: 99999 GBP
Availability: InStock

Part: 10060523

Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015

Description

Downloads

10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom
Inclusive terminal block 5-poles, 2,5mm²

Material :	Polypropylene
Material sealing gasket :	TPE
Temp. range min :	-30 °C
Temp. range max :	100 °C
Temperatures during install. :	-5 °C - 60 °C
Protection class :	IP66
Glow wire test :	750 °C
Voltage :	400 V
Rated cross section :	2,5 mm²
Terminals/poles :	5-pole, 2,5mm²
Fixing :	2 internal openings
Ø cable diameter min :	3 mm
Ø cable diameter max :	14 mm

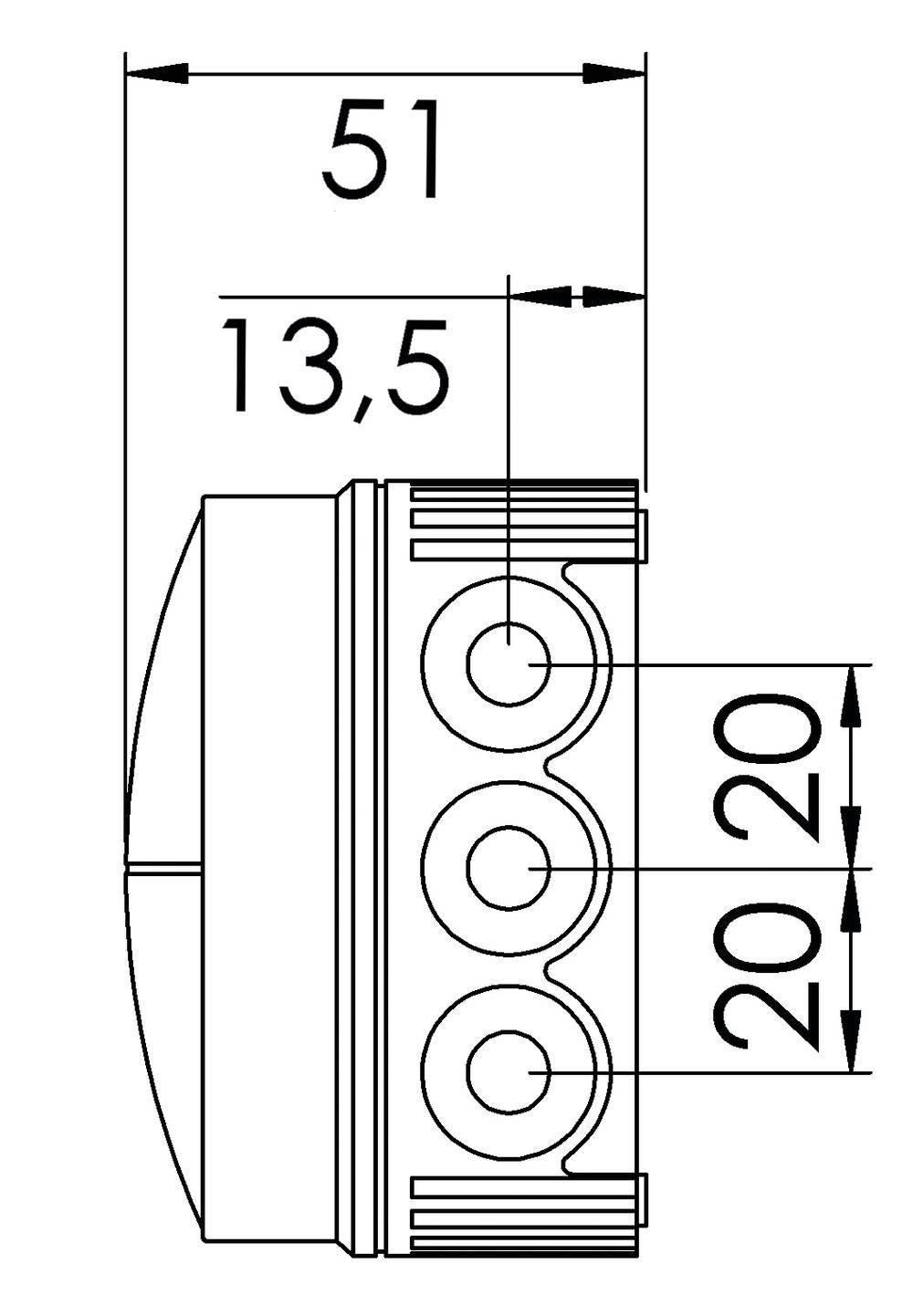

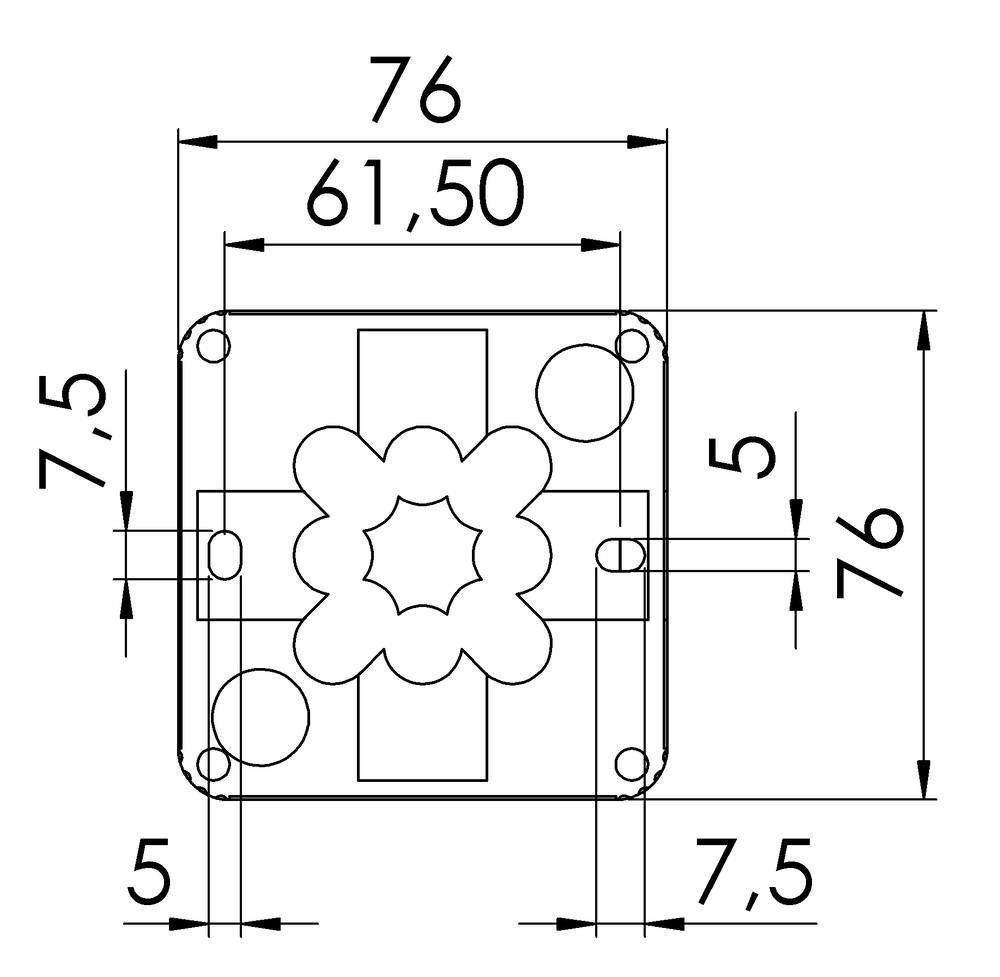

External dimensions LxWxH :	76 x 76 x 51mm
Product Color :	RAL 7035
WISKA-Order no. :	10060522
Type :	COMBI 108/5 LG
