WALTHER 219306 Waterproof plug 16A 3P 6h with cable gland

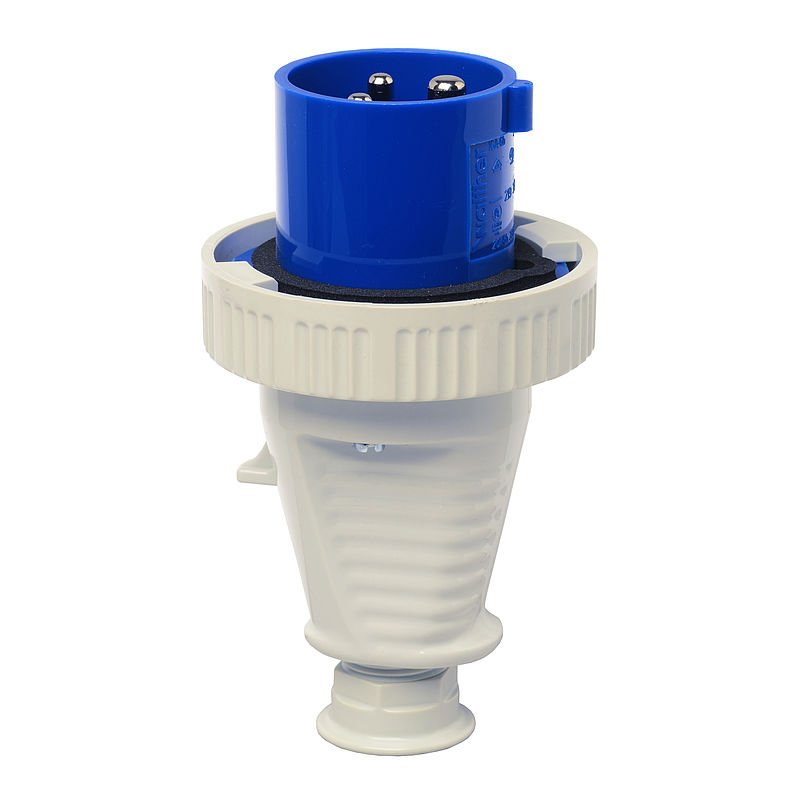

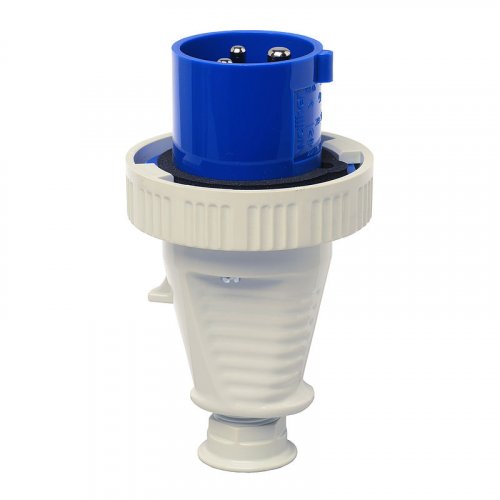

Image is for illustrative purposes only

WALTHER 219306 Waterproof plug 16A 3P 6h with cable gland

Part: 219306
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

WALTHER Plug 16A 3P 230V 6h IP67 made from PA6 material with screw terminal and cable gland Increased safety due to injected 2K seal and two contact screws.

IEC-amperage :16 A
Amperage according to UL/CSA (for UL-version) :20 A
Number of poles :3
Voltage according to EN 60309-2 :230 V (50+60Hz) blue
Clock hour position :6 h
Identification colour :Blue
Conductor cross-section :1 - 2.5 mm²
Cable diameter :7.5 - 14.5 mm
Cable strip length :30 mm +/- 2 mm
Cable ferrules length :10 mm +/- 1 mm
Maximum torque terminal screw :0.8 Nm
Maximum torque cable gland :4 Nm
Degree of protection (IP) :IP67
Connection system :Screwed terminal
Contact material :Nickel-plated brass
Cable entry :Swivel
Angle of plug :Straight
Material :Plastic
Inflammability class of insulation material according to with UL94 :V2
