WALTHER Wall socket 119306

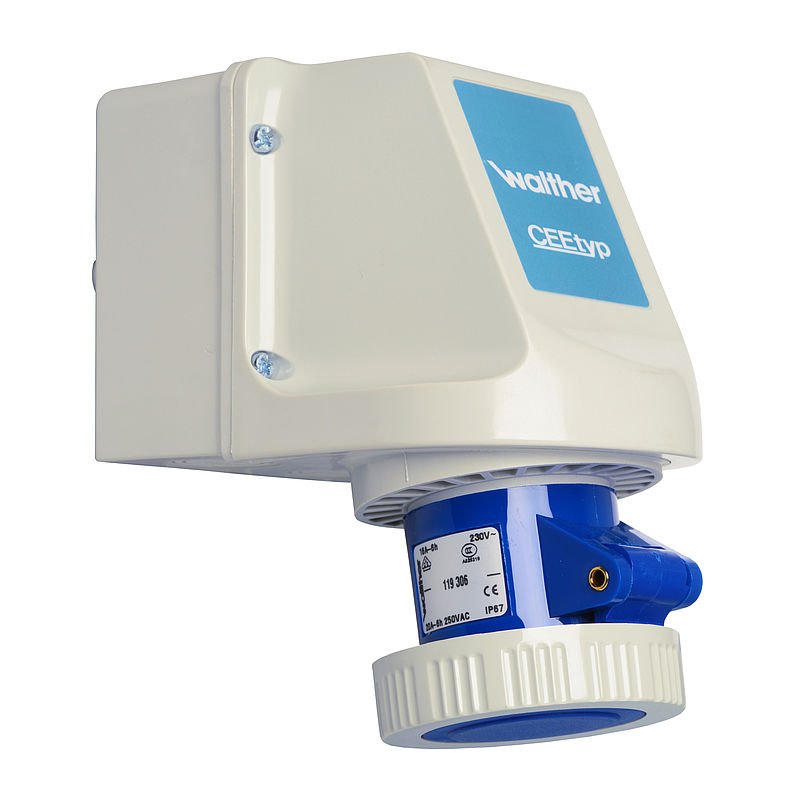

Image is for illustrative purposes only

WALTHER 119306 Wall socket IP67, 16A 3P, blue

Part: 119306
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

WALTHER Wall socket 16A 3P 230V 6h IP67 made from PA6 material with screw terminal for internal fixing with two knock-out cable entries both top and bottom and one knock-out floor entry

Model :Surface mounted (plaster)
IEC-amperage :16 A
Amperage acc. UL/CSA (for UL-version) :20 A
Number of poles :3
Voltage acc. EN 60309-2 :230 V (50+60 Hz) blue
Clock hour position :6 h
Identification colour :Blue
RAL-number :5002
Degree of protection (IP) :IP67
Connection system :Screwed terminal
Material :Plastic
Type of fastening :Inner lying mounting
Insulated mounting :True
