Surge SY2-D Type 2+3 single module

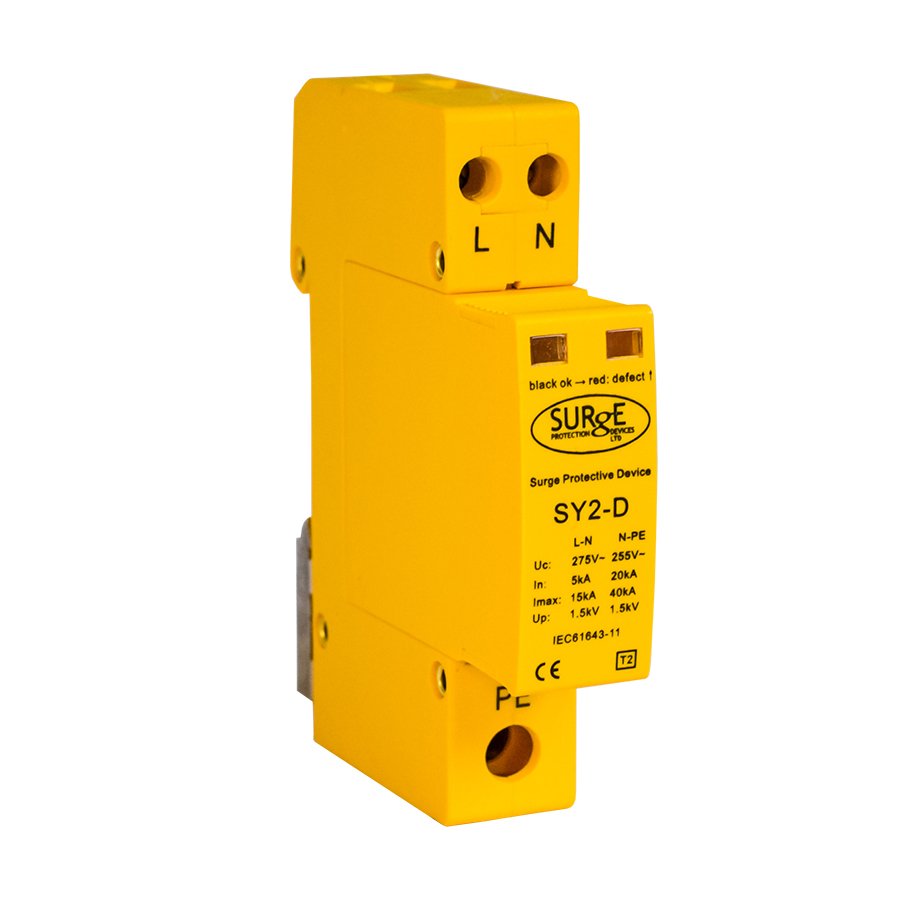

Image is for illustrative purposes only

SY2-D Type 2+3 single phase surge protection module, 2 pole with replaceable modules & window indication

Part: SY2-D
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

  • Type 2 single phase surge device ideal for domestic installations.
  • Fully compliant to BSEN61643-11, BSEN62305 & BS7671.
  • Visual status indication.
  • Earth leakage free so may be connected before or after RCD’s, RCBO’s etc.
  • Can be used on all installation types (TN-S, TNC-S, PME & TT).
  • Earth wire must be 6mm².
  • Din rail mountable.
  • Recommended MCB 32A.
  • Easy to install, just connect it in parallel to your board.

This item can be ordered directly via our Seltec web site at: Surge Protection Devices SY2-D

Manufacturer :Surge Protection Devices Ltd
Part number :SY2-D
Maximum Continuous Voltage - Uc :275V
Nominal Discharge Current 8/20µS - In :L-N 10kA, N-PE 20kA
Maximum Discharge Current 8/20µs - Imax :L-N 15kA, N-PE 40kA
Voltage Protection Level - Up @ In :≤5kV
Voltage Protection Level - Up @5kA :≤1.00kV
Response Time - tA :≤25ns
Tightening Torque :L-N 1.2Nm, N-PE 2Nm
Operating Temperature :-40C to +80C
Dimensions :1 Module
Mounting On :35mm DIN rail
Indication of Status :Flag
Classification According to BS EN 61643-11 :Type 2/3
