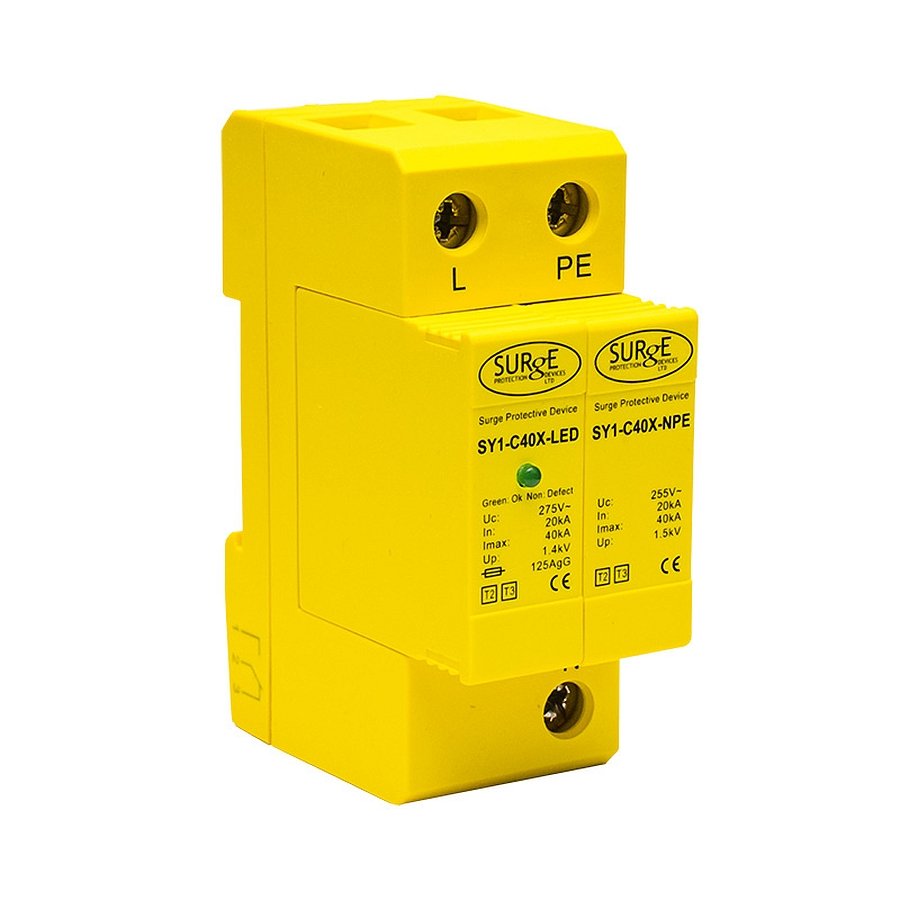

SY1-C40XLED Type 2+3 single phase surge protection module, with LED indication
Image is for illustrative purposes only

SY1-C40XLED Type 2+3 single phase surge protection module, with LED indication

Part: SY1-C40XLED
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description
Downloads

  • Type 2 Surge protection device.
  • Fully compliant to BSEN61643-11, BSEN62305 & BS7671.
  • Suitable for TT, TNC-S and TN-S installations.
  • Protects sensitive electronic systems and end equipment.
  • Visual indication of status (LED’S).
  • Pluggable replacement modules.
  • Remote changeover contacts can be linked to BMS, buzzer, light etc.
  • Din rail mountable.
  • Connect in parallel, meaning no current limitations.
  • Recommended backup fuse / MCB 16-32A.

This item can be ordered directly via our Seltec web site at: Surge Protection Devices SY1-C40XLED

Manufacturer :Surge Protection Devices Ltd
Part number :SY1-C40XLED
Maximum Continuous Voltage - Uc :275V
Nominal Discharge Current 8/20µS - In :20kA
Maximum Discharge Current 8/20µs - Imax :40kA
Voltage Protection Level - Up @ In :≤1.4kV
Voltage Protection Level - Up @5kA :≤1.00kV
Response Time - tA :≤25ns
Tightening Torque :3Nm
Operating Temperature :-40C to +80C
Dimensions :2 Module
Mounting On :35mm DIN rail
Indication of Status :LED & remote
Classification According to BS EN 61643-11 :Type 2/3
