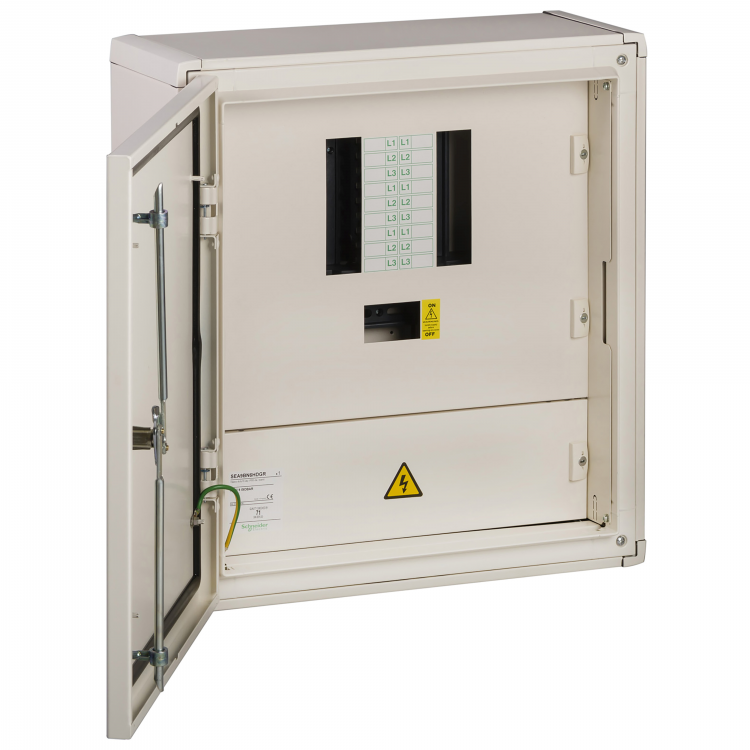

Schneider Electric SEA9BPN6HDGR A9 IsobarP 6W 125A IP55 typeB HD transparent door

Part: SEA9BPN6HDGR
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Acti9 Isobar P B - heavy duty DB - 125A - 6 ways - transparent door IP55.

  • Plug-on neutral
  • Ease of installation
  • IP20 internal conforming to BS EN 60529
  • IP55 external conforming to BS EN 60529
  • ambient air temperature for operation between -35…70 °C
  • IK05 degree of protection
  • Powder Painted Steel with Epoxy Treatment
  • Steel Door
  • Green Premium Product

Mounting method :Surface mounted
Colour :Other
Width :600mm
Height :650mm
Depth :330mm
RAL number :9001
Number of rows :1
Type of covering :Cover
Extension possible :Yes
With DIN-rail :Yes
Housing material :Steel
Width in number of modular spacings :6
Type of closure :Other
Degree of protection (IP rating) :IP3X
Transparent cover/door :Yes
With lock :Yes
Cover model :Closed
