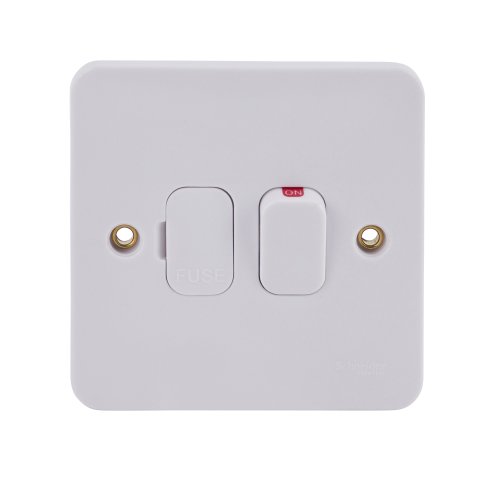

Schneider Electric GGBL5011 Lisse 13A DP Switched FCU with LED Indic. White

Lisse - Fuse connection unit - LED - 1 gang - 13 A - white moulded.

• Raised rounded profile complimented by the curved rocker switch
• 13A at 250V AC

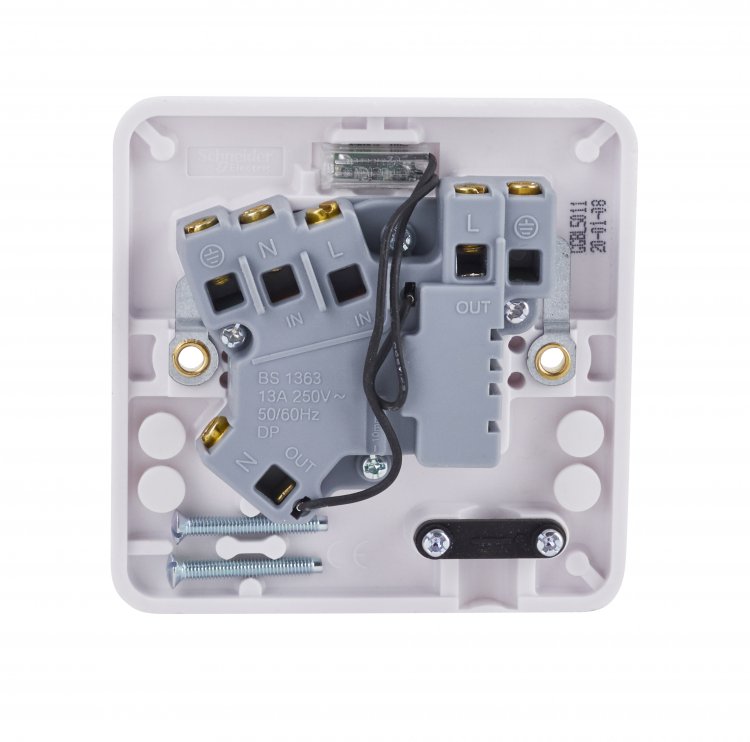

• Backed out and captive screw terminals to allow for positive drive and speed of installation
• Angled terminals for easier access

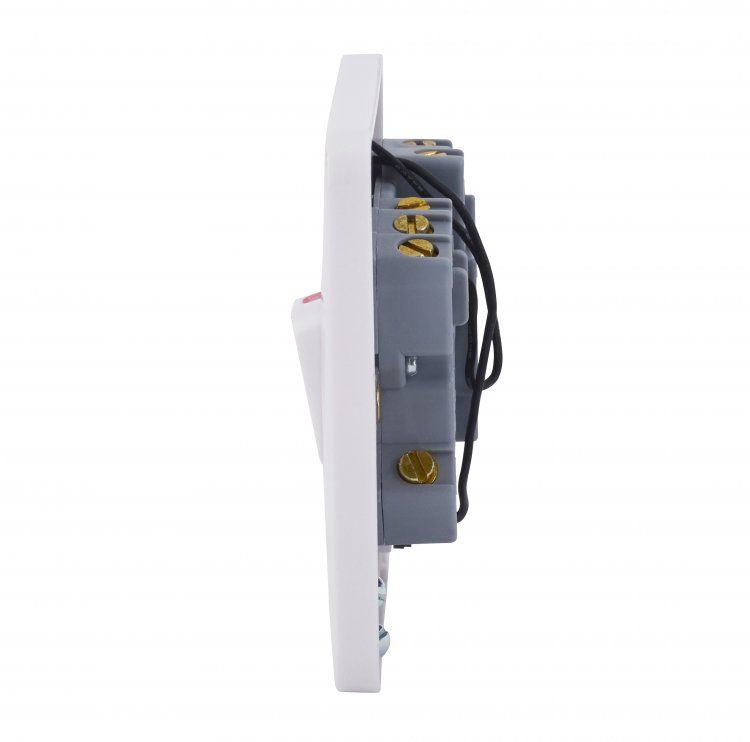

• Minimum back projection frees up space in the back box for cabling
• LED pilot light
• The 7mm raised edge profile offers easy installation
• Double pole switched fused connection unit with a LED indicator
• Screw cap covers provided to offer a sleek finish
• 13A at 250V AC

Nominal voltage :	250V
Mounting method :	Surface mounted
Assembly arrangement :	Basic unit with full cover plate
Method of operation :	Rocker
Colour :	White
With mounting plate :	No
Connection type :	Screwed terminal
Illumination :	Yes
Rated current :	13A
Material qualifier :	Urea formaldehyde
Type of lighting :	LED non-replaceable
Material :	Plastic
Type of fastening :	Screw mounting
Wiring system :	Other
Number of rockers/gangs :	1
Push button switch :	No
Washing machine switch :	No
Degree of protection (IP rating) :	IP20
Width of device :	87mm
Height of device :	87mm
Depth of device :	28mm
Label space/information surface :	No
Function lighting :	Illuminated (on)
