Schneider Electric GGBL4011BSS
Image is for illustrative purposes only

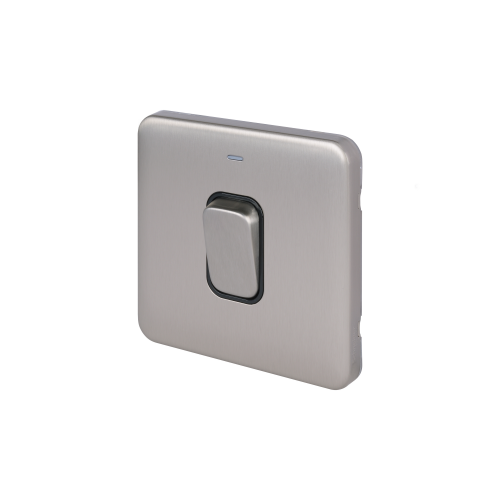

Schneider Electric GGBL4011BSS Lisse 1G 50A DP Switch with LED Indic. BSS

Part: GGBL4011BSS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - 1 gang 50A DP High Current Switch with LED ind Stainless Steel wth Black insert.

  • High current single switch, 50A
  • Double pole with neon indicator
  • 7mm raised edge plate with rounded profile
  • Removable screwless cover with a reliable clip-in system.
  • Light grey back moulding for easier terminal identification
  • Cable markings to check wire length
  • Gently rounded metal rocker to compliment the curved profile
  • Requires a 47mm minimum back box

Nominal voltage :230V
Mounting method :Flush mounted
Assembly arrangement :Basic unit fully enclosed
Method of operation :Rocker
Colour :Stainless steel
Connection type :Screwed terminal
Illumination :Yes
Rated current :50A
Feedback-signal contact :No
Material qualifier :Stainless steel
Material :Metal
Type of fastening :Screw mounting
Wiring system :2-pole switch
Number of rockers/gangs :1
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :87mm
Height of device :87mm
Label space/information surface :No
Function lighting :Illuminated (on)
