Schneider Electric GGBL4011
Image is for illustrative purposes only
Schneider Electric GGBL4011
Schneider Electric GGBL4011
Schneider Electric GGBL4011
Schneider Electric GGBL4011

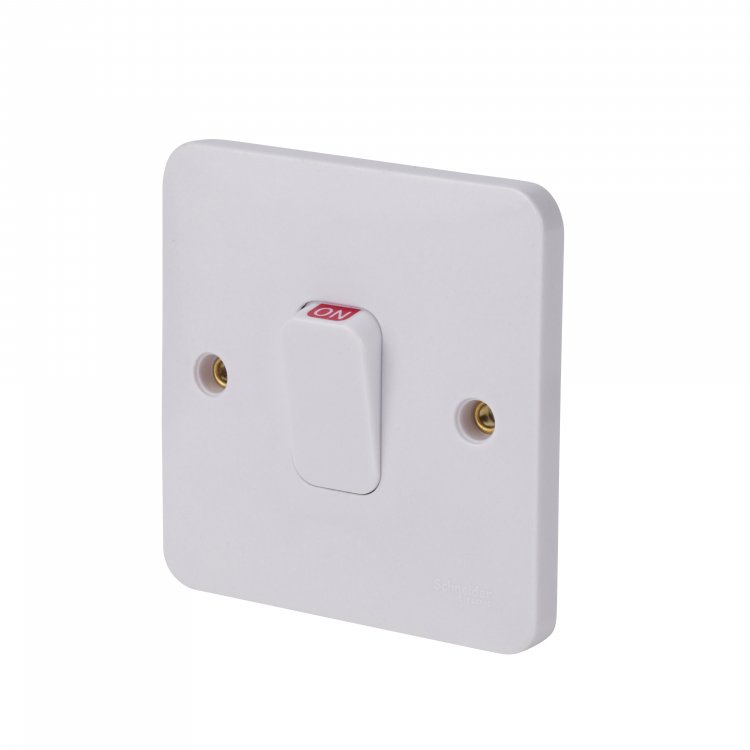

Schneider Electric GGBL4011 Lisse 1G 50A DP Switch with LED Indic. White

Part: GGBL4011
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - 2-pole switch with indicator lamp- 1 gang - 50A.

  • Raised rounded profile complimented by the curved rocker switch
  • IP20 degree of protection
  • High current switch with neon indicator

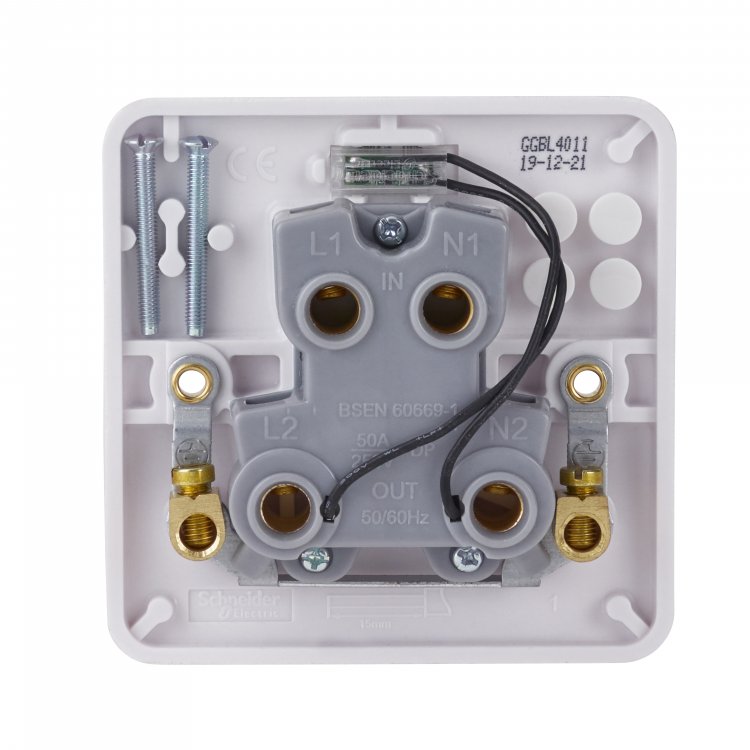

  • Angled terminals for easier access
  • Backed out and captive screw terminals to allow for a positive drive and speed of installation
  • Screw cap covers provided for a sleek finish
  • The 7mm raised edge profile offers easy installation
  • Minimum back projection frees up space in the back box for cabling
  • 50A at 230V AC rated current
  • IP20 degree of protection
  • Nominal voltage :230V
    Mounting method :Surface mounted
    Assembly arrangement :Basic unit fully enclosed
    Method of operation :Rocker
    Colour :White
    Halogen free :Yes
    Connection type :Screwed terminal
    Illumination :Yes
    Surface protection :Untreated
    Rated current :50A
    Material qualifier :Other
    Material :Other
    Type of fastening :Screw mounting
    Wiring system :2-pole switch
    Number of rockers/gangs :1
    RAL-number (similar) :9003
    Switching current for fluorescent lamps :50AX
    Push button switch :No
    Washing machine switch :No
    Surface finish :Matt
    Degree of protection (IP rating) :IP20
    Width of device :87mm
    Height of device :31.7mm
    Depth of device :87mm
    Label space/information surface :Yes
