Schneider Electric GGBL4001WSS

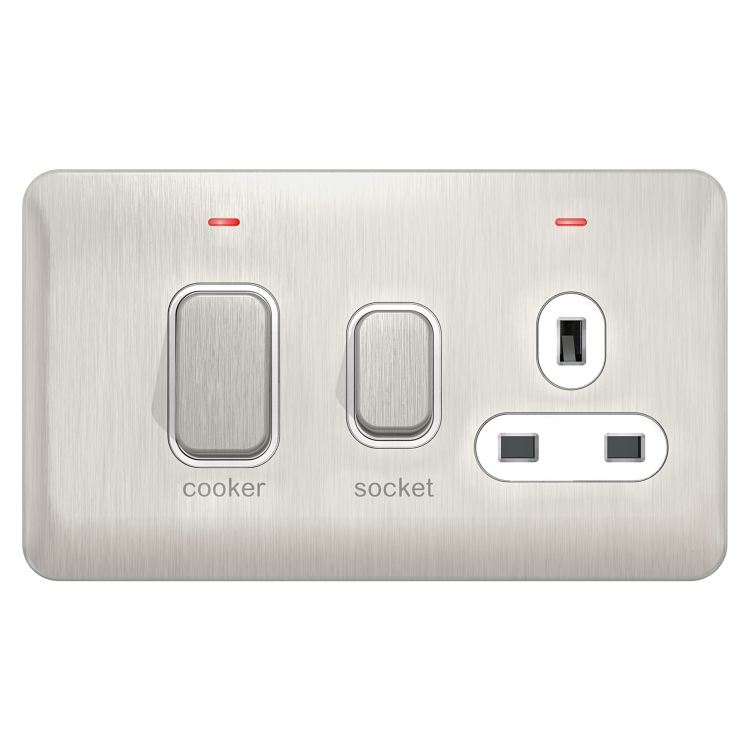

Image is for illustrative purposes only

Schneider Electric GGBL4001WSS Lisse 2G Cooker Control Unit LED Ind 45A DP Stainless Steel

Part: GGBL4001WSS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - Cooker Control Unit with 13A Socket LED Ind 45A DP Stainless Steel with White insert.

  • Single 45A cooker control unit with 13A switched power socket
  • Double pole with neon indicator
  • 7mm raised edge plate with rounded profile
  • Removable screwless cover with a reliable clip-in system.
  • Light grey back moulding for easier terminal identification
  • Cable markings to check wire length
  • Gently rounded metal rocker to compliment the curved profile
  • Requires a 47mm minimum back box

Nominal current :45A
Nominal voltage :230V
Mounting method :Flush mounted
Colour :Stainless steel
Model :British Standard
Number of units/gangs :2
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :Yes
With enhanced contact protection :Yes
Frequency :50 to 60Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Material qualifier :Stainless steel
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Special power supply :No special power supply
Material :Metal
Type of fastening :Mounting with screw
Transparent :No
Surface finish :Matt
With miniature fuse :No
With loop through function :No
Degree of protection (IP rating) :IP20
Width of device :148mm
Height of device :87mm
Depth of device :32.8mm
Number of switchable socket outlets :1
With function lighting :Yes
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (rectangular) :3
Antibacterial treatment :No
