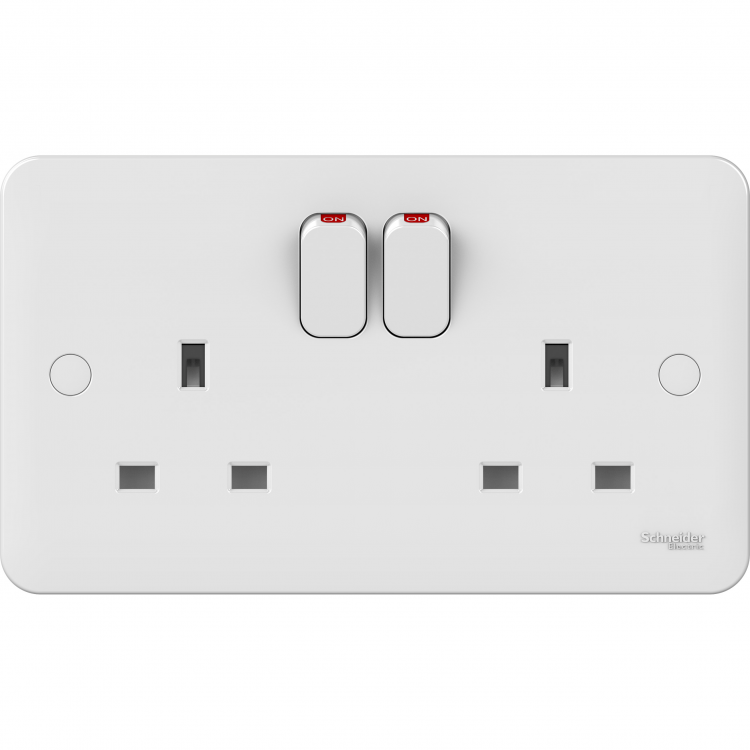

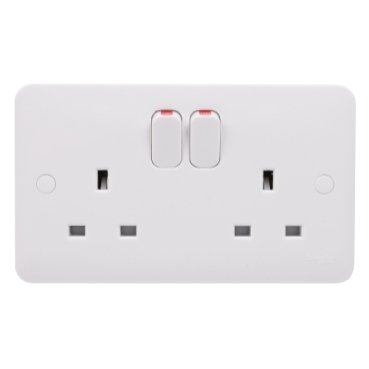

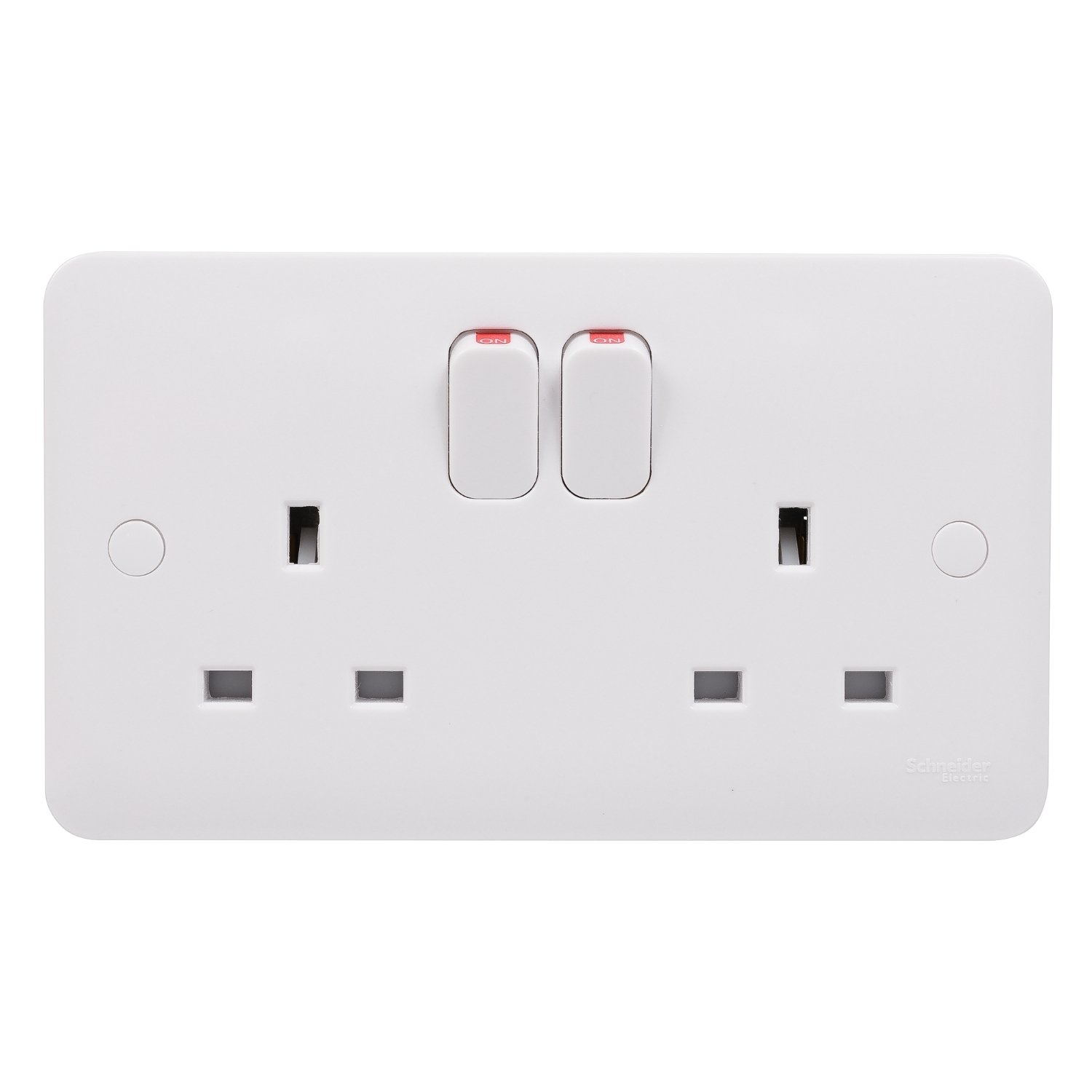

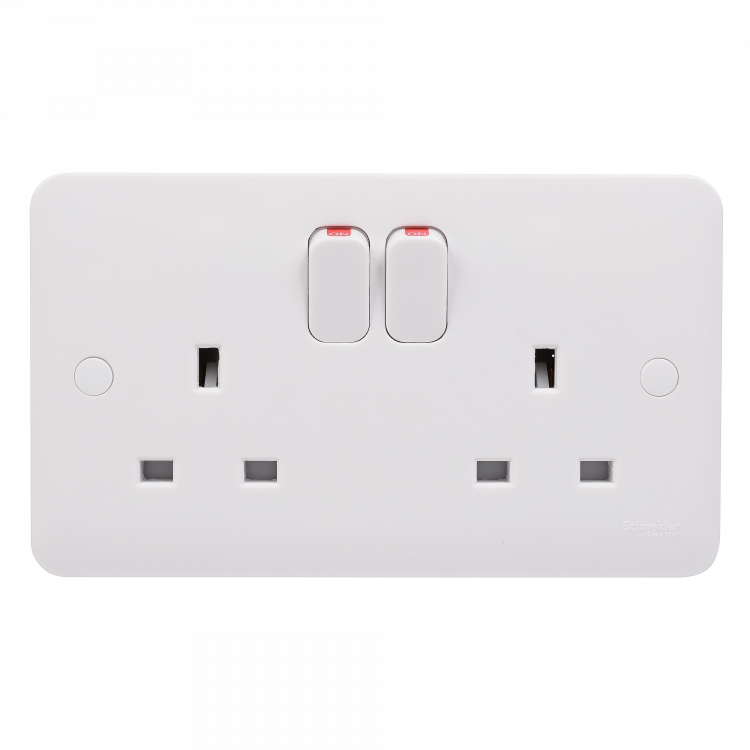

Schneider Electric GGBL3020DS Lisse 2G 13A DP Sw Socket White

Part: GGBL3020DS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse White moulded - DP Switched Socket - 2 gangs - 13A 230 V - white.

  • Raised rounded profile complimented by the curved rocker switch
  • Concealed Fittings
  • Two sets of screw cap covers provided to complete the sleek finish
  • Minimum back projection frees up space in the back box for cabling
  • Cable markings allow you to check wire length
  • Angled terminals for easier access
  • The 7mm raised edge profile offers easy installation
  • Concealed fittings

Nominal current :13A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :White
Model :British Standard
Halogen free :No
Number of units/gangs :2
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :No
Number of phases :1
With enhanced contact protection :No
Frequency :50Hz
With on/off switch :Yes
Label space/information surface :No
Eject-mechanism :No
Material qualifier :Other
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Special power supply :No special power supply
Insulated mounting :Yes
Material :Other
Rated fault current :0
Type of fastening :Mounting with screw
Impact resistance (IK rating) :IK01
Transparent :No
Surface finish :Matt
With miniature fuse :No
With loop through function :No
Degree of protection (IP rating) :IP20
Width of device :149mm
Height of device :87mm
Depth of device :36mm
Number of switchable socket outlets :2
With function lighting :No
With orientation lighting :No
Number of module spaces (modular system) :2
Number of active contacts (round) :0
Number of active contacts (rectangular) :4
Minimum depth of back box :38mm
Antibacterial treatment :Yes
