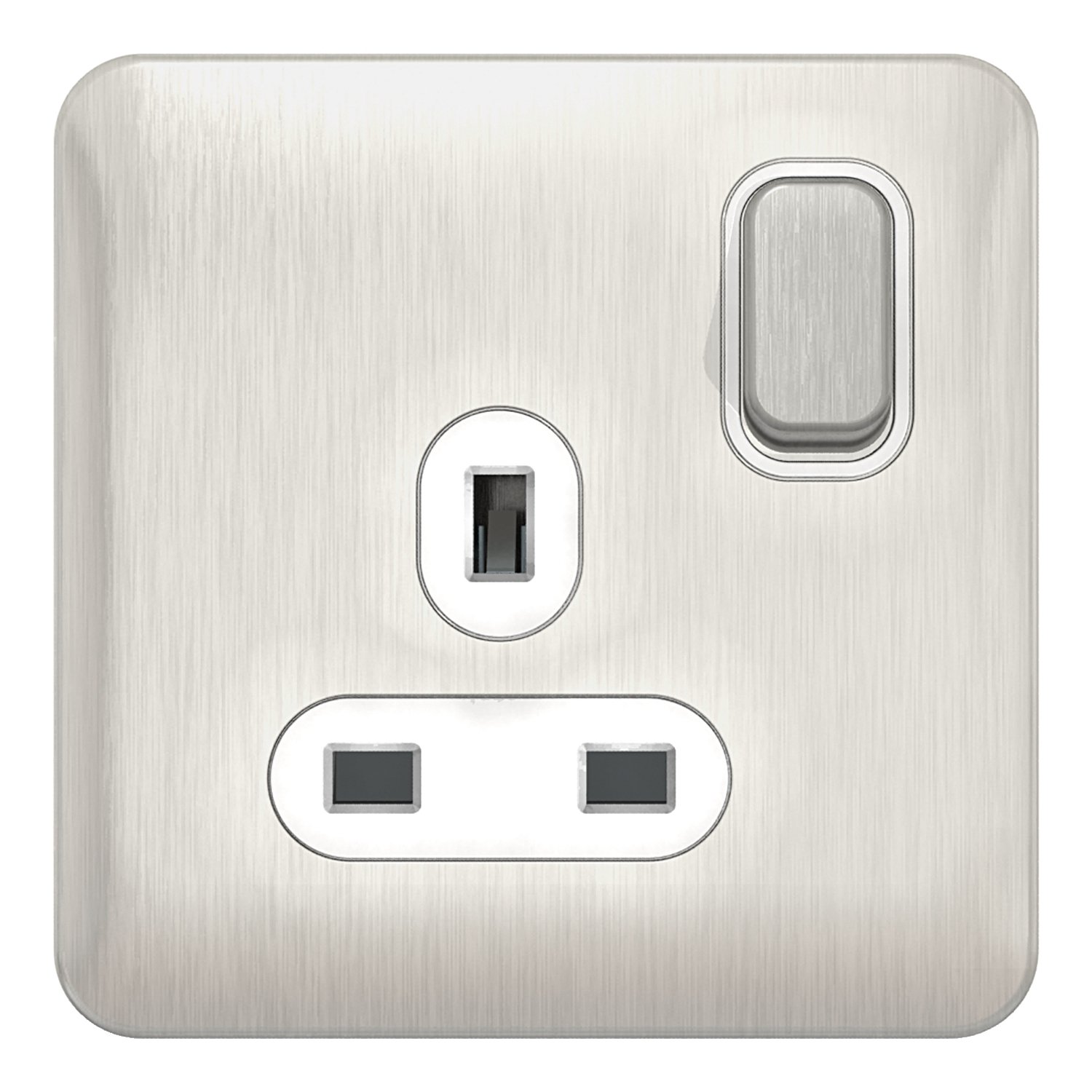

Schneider Electric GGBL3010WSS
Image is for illustrative purposes only
Schneider Electric GGBL3010WSS
Schneider Electric GGBL3010WSS

Schneider Electric GGBL3010WSS Lisse 1G Switched Socket 13A Stainless Steel

Part: GGBL3010WSS
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - Switched Socket - 1 gang - 13A Stainless Steel with White Interior.

  • Single switched socket 13A
  • Painting and decorating made easy by the unique removable screwless cover and reliable clip in system
  • 7mm raised edge profile
  • Angled and in line terminals
  • Backed out and captive screw terminals
  • Gently rounded metal rocker to compliment the curved profile
  • Light grey back moulding for easier terminal identification
  • Cable markings to check wire length
  • Requires a 25mm back box

Nominal current :13A
Nominal voltage :250V
Mounting method :Flush mounted
Colour :Stainless steel
Model :British Standard
Number of units/gangs :1
Lockable :No
With hinged lid :No
Connection type :Screwed terminal
Surface protection :Untreated
With indicator lamp :No
Number of phases :1
With enhanced contact protection :Yes
Frequency :50 to 60Hz
With on/off switch :Yes
Eject-mechanism :No
Material qualifier :Stainless steel
Rotated central insert :No
Over voltage-/surge protection :No
Fault current protection :No
Special power supply :No special power supply
Material :Metal
Type of fastening :Mounting with screw
Transparent :No
Surface finish :Matt
With miniature fuse :No
With loop through function :No
Degree of protection (IP rating) :IP20
Width of device :87mm
Height of device :87mm
Depth of device :33mm
Number of switchable socket outlets :1
With function lighting :No
With orientation lighting :No
Number of module spaces (modular system) :0
Number of active contacts (rectangular) :3
Antibacterial treatment :No
