Schneider Electric GGBL1042
Image is for illustrative purposes only

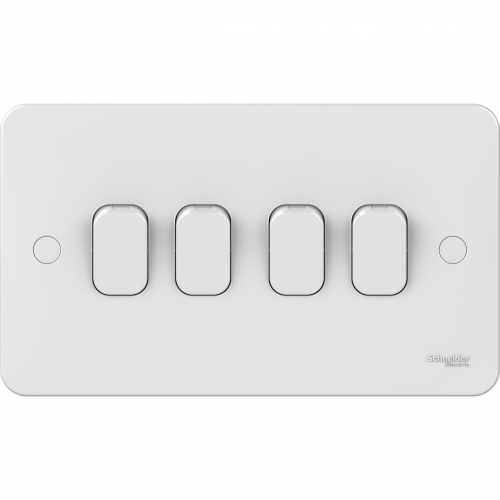

Schneider Electric GGBL1042 Lisse 10AX 4G 2W Switch White

Part: GGBL1042
Need this part urgently: we advise you to check the stock availability for this item by contacting our sales team on 01482 589015
Description

Lisse - Plate switch - 4 gang 2 way - 10AX - white.

  • Raised rounded profile complimented by the curved rocker switch
  • Durable anti-microbial urea construction
  • Two sets of screw cap covers provided to complete the sleek finish
  • 7mm raised edge profile offering easy installation
  • Minimum back projection frees up space in the back box for cabling
  • Two way switch function
  • 10AX rated current

Nominal voltage :230V
Mounting method :Surface mounted
Assembly arrangement :Basic unit fully enclosed
Method of operation :Rocker
Colour :White
Halogen free :Yes
Connection type :Screwed terminal
Illumination :No
Surface protection :Untreated
Rated current :10A
Material qualifier :Other
Material :Other
Type of fastening :Screw mounting
Wiring system :Two-way switch
Number of rockers/gangs :4
RAL-number (similar) :9003
Switching current for fluorescent lamps :10AX
Push button switch :No
Washing machine switch :No
Surface finish :Matt
Degree of protection (IP rating) :IP20
Width of device :87mm
Height of device :24mm
Depth of device :149mm
Label space/information surface :Yes
